Introduction: What Is a PU Sandwich Panel Production Line?

A PU sandwich panel production line is an advanced automated system designed to manufacture

high-performance insulation panels using polyurethane (PU) foam as the core material.

This type of production line integrates multiple processes into one continuous system, including:

• Roll forming machine for metal sheets

• High-pressure PU foaming machine

• Conveyor belt system for continuous production

• Automatic cutting machine for precise panel length

It is widely used in the production of insulated building panels, cold storage panels, and industrial wall systems.

What Products Can Be Made?

With a complete PU sandwich panel production line, manufacturers can produce:

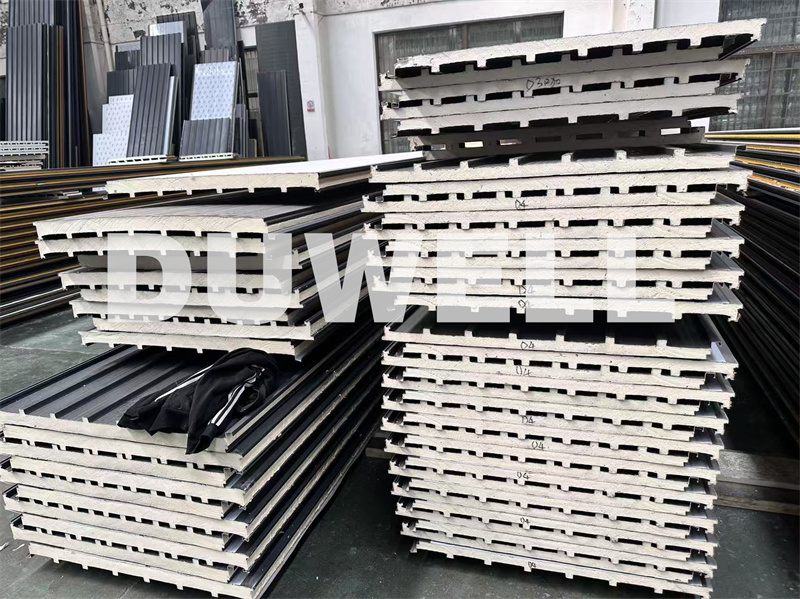

• Wall insulation panels

• Roof sandwich panels

• Cold room panels

• Industrial warehouse panels

• Energy-saving building materials

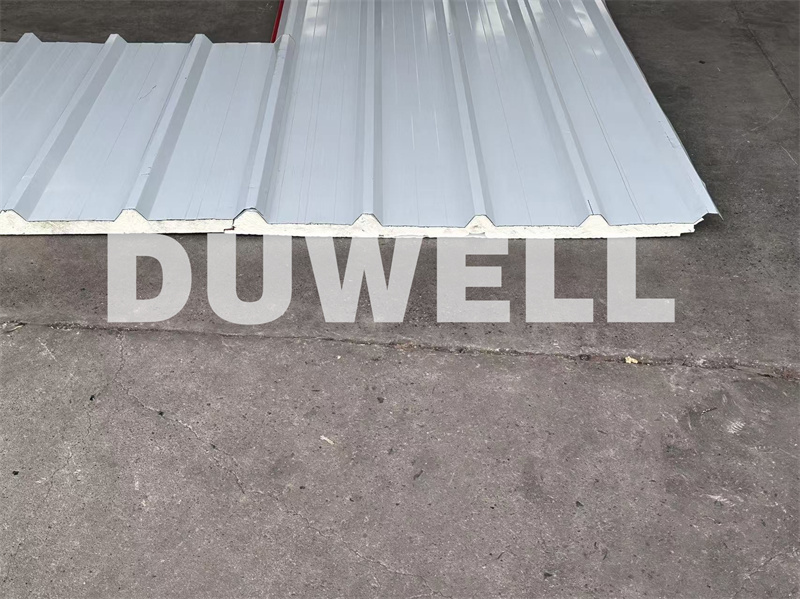

These panels consist of two metal skins with a rigid polyurethane foam core, providing excellent thermal insulation and structural strength.

⸻

Key Components of the Production Line

1. Roll Forming Machine

The roll forming system shapes steel or aluminum coils into precise panel profiles.

Key features:

• High precision forming rollers

• Adjustable panel designs

• Stable continuous production

• Compatible with galvanized steel and aluminum coils

2. PU Foaming Injection System

The PU foaming machine is the core of the production line. It injects polyurethane foam between the

metal sheets.

Functions include:

• High-pressure mixing of raw materials

• Accurate ratio control (polyol and isocyanate)

• Uniform foam distribution

• Adjustable foam density control

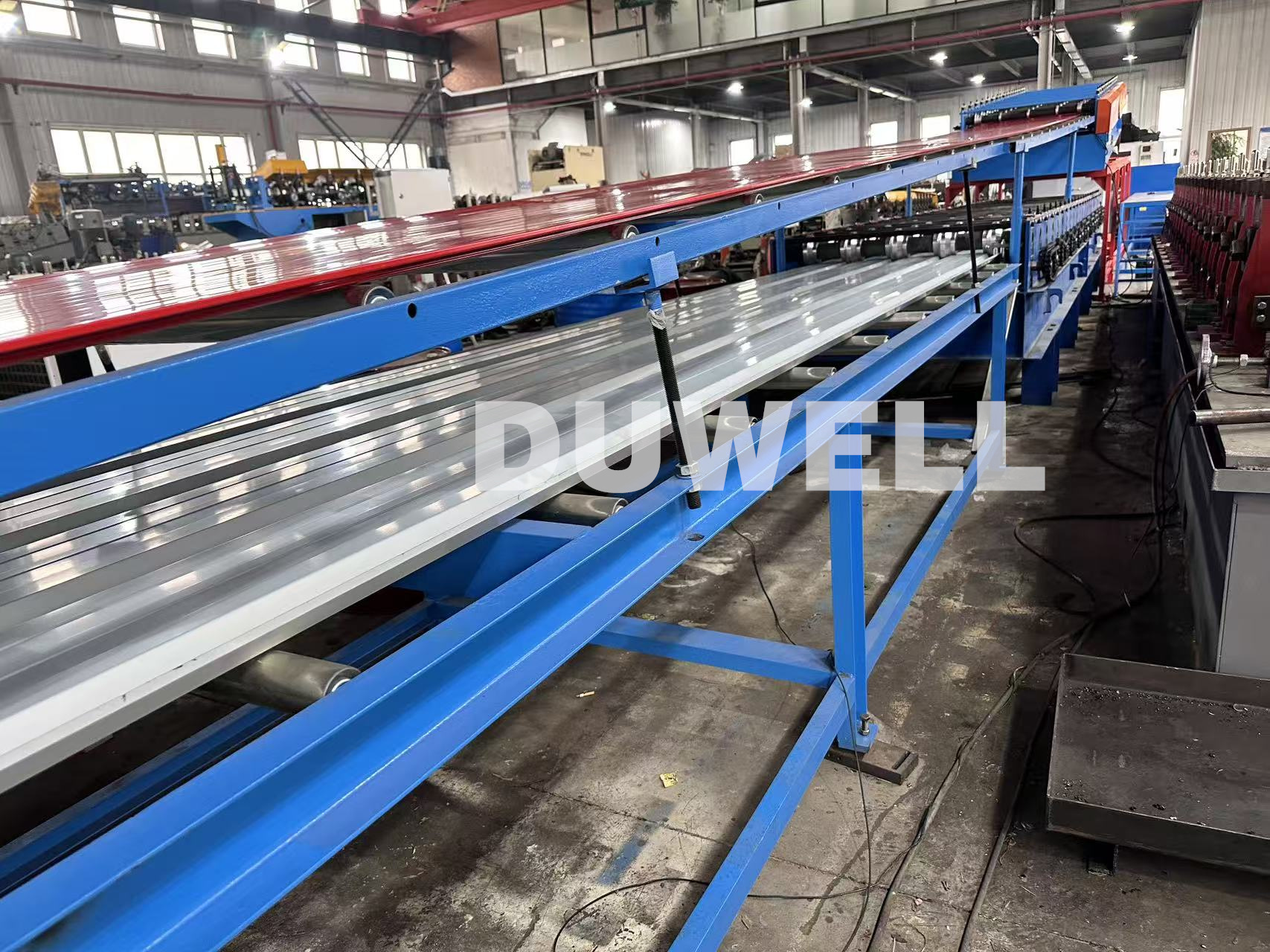

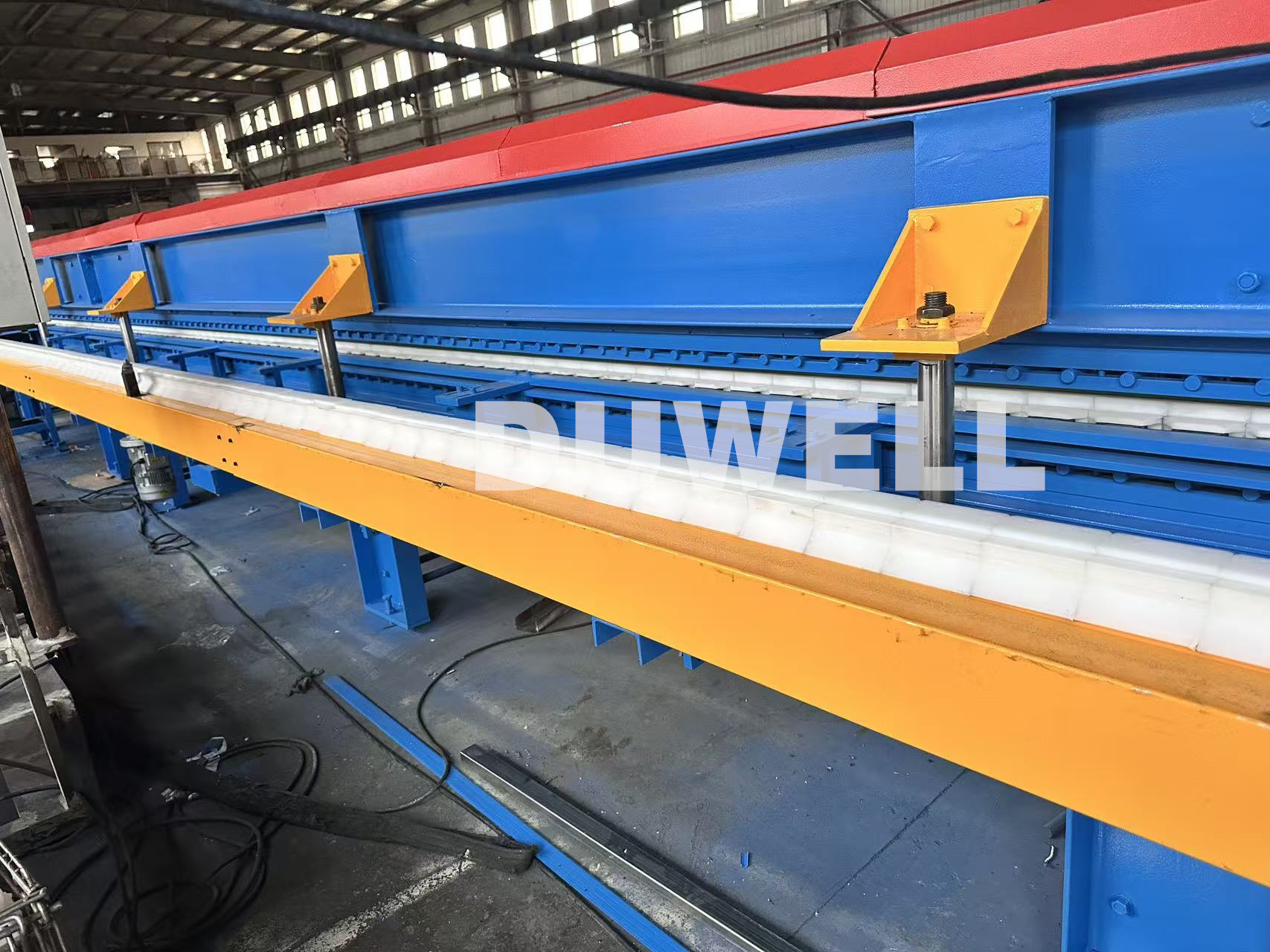

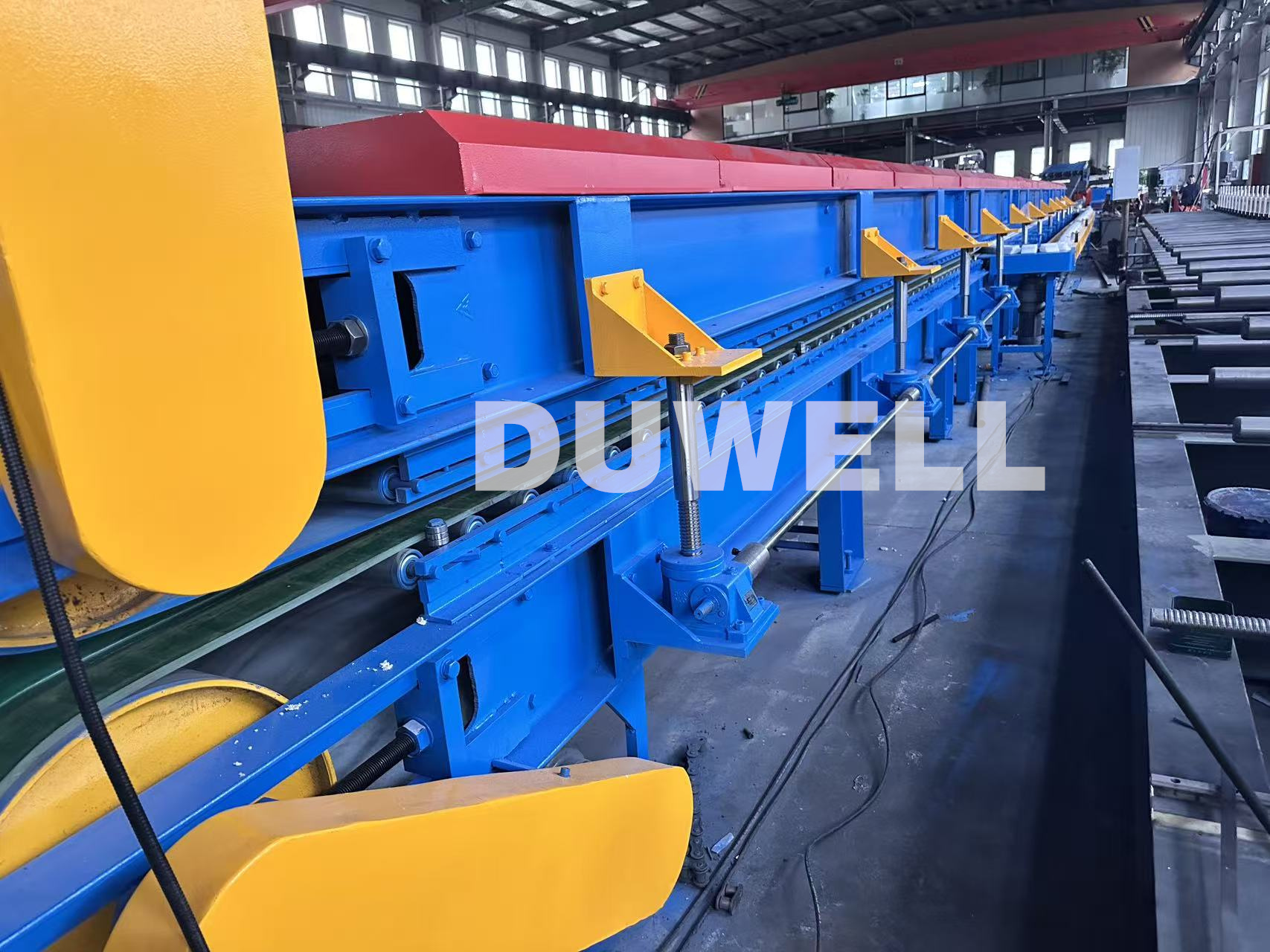

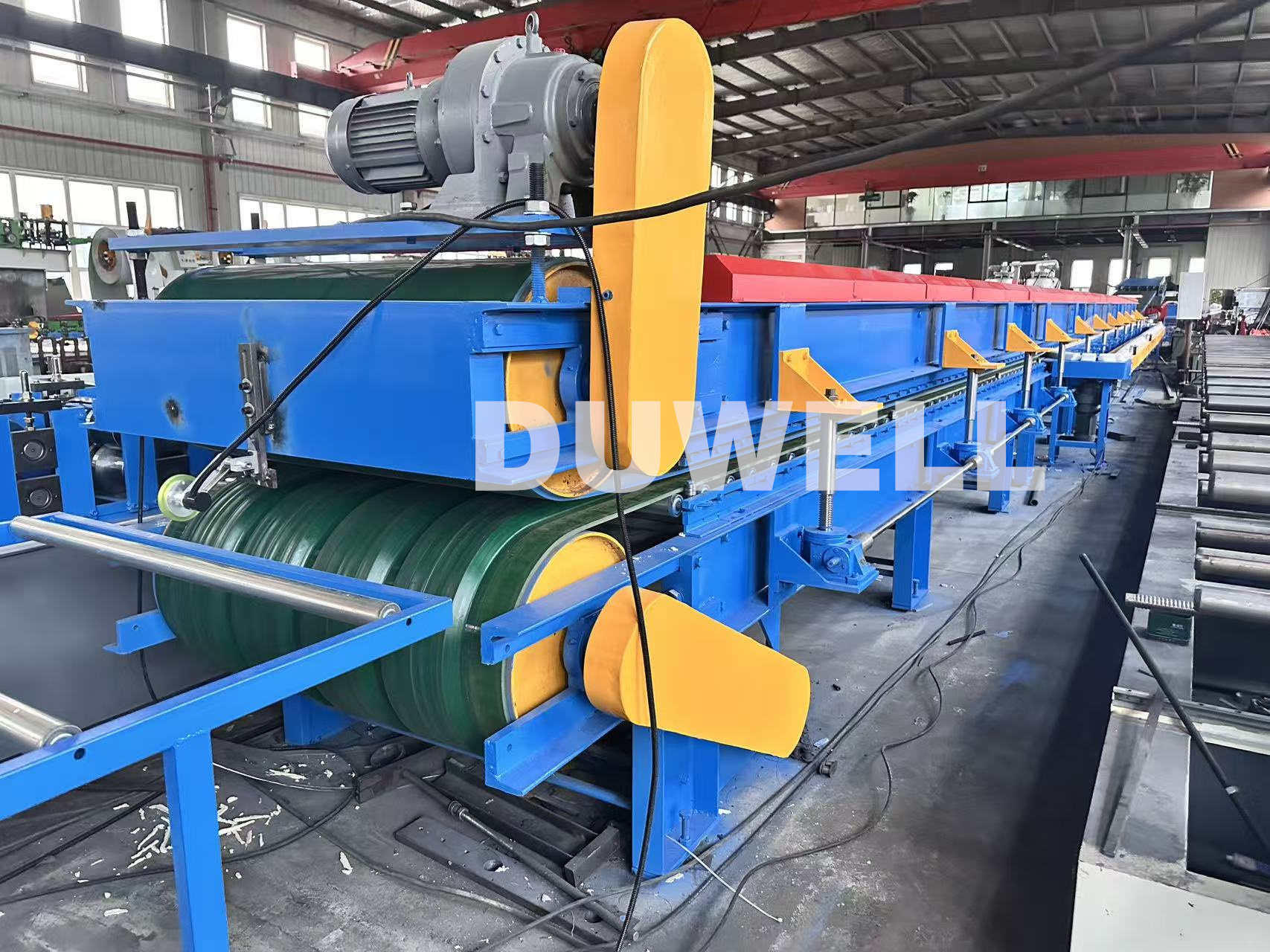

3. Conveyor Belt System

The conveyor system ensures continuous and synchronized production.

Advantages:

• Stable panel movement

• Perfect synchronization with foaming process

• Reduced manual handling

• Higher production efficiency

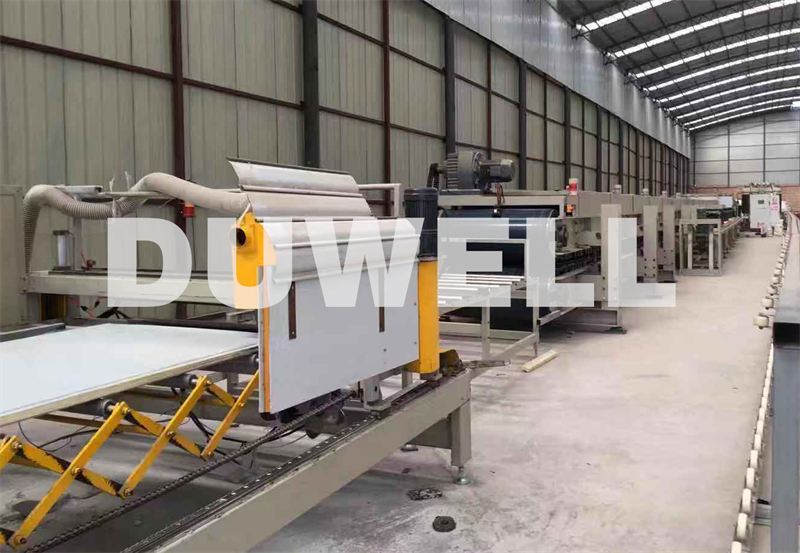

4. Automatic Cutting System

After foaming and curing, panels are automatically cut into required lengths.

Features:

• Servo-controlled cutting accuracy

• Programmable panel length

• High-speed cutting performance

• Smooth and clean cutting edges

Advantages of PU Sandwich Panel Production Line

✔ Fully Automated Production

The entire line operates continuously with minimal manual intervention.

✔ High Thermal Insulation Performance

PU foam core provides excellent energy-saving performance.

✔ Strong Structural Strength

Metal skins combined with rigid foam create high mechanical strength panels.

✔ High Production Efficiency

Continuous production greatly increases output capacity.

✔ Flexible Panel Design

Different thicknesses and widths can be produced by adjusting roll forming tools.

⸻

Applications of PU Sandwich Panels

PU sandwich panels are widely used in:

• Industrial buildings

• Cold storage warehouses

• Clean rooms

• Prefabricated houses

• Commercial roofing systems

• Food processing factories

These applications require thermal insulation, fire resistance, and structural durability.

⸻

Why Choose a Fully Integrated Production Line?

Compared with traditional separate production methods, an integrated PU sandwich panel production line offers:

• Higher automation level

• Lower labor cost

• Better product consistency

• Reduced material waste

• Faster production speed

• Easier operation and maintenance

This makes it the ideal solution for modern insulation panel manufacturers.

⸻

Market Trend: Growing Demand for PU Sandwich Panels

With global energy-saving regulations becoming stricter, the demand for PU sandwich panels is increasing rapidly.

Manufacturers are shifting from traditional construction materials to:

• Lightweight insulation panels

• Energy-efficient building systems

• High-performance composite panels

This trend is driving strong demand for PU sandwich panel production line equipment worldwide.

⸻

Conclusion

A complete PU sandwich panel production line is an essential solution for manufacturers aiming to produce high-quality insulation panels efficiently and at scale.

By integrating roll forming, PU foaming, conveying, and cutting systems into one automated production line, it ensures stable performance, high output, and consistent product quality.

Whether you are producing wall panels, roof panels, or cold storage insulation boards, this system provides a reliable and profitable manufacturing solution.
