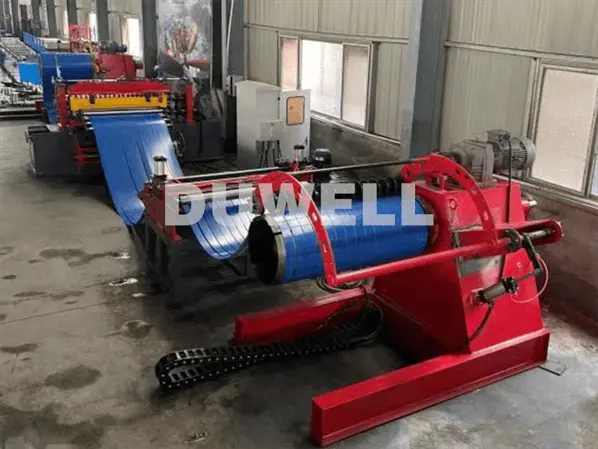

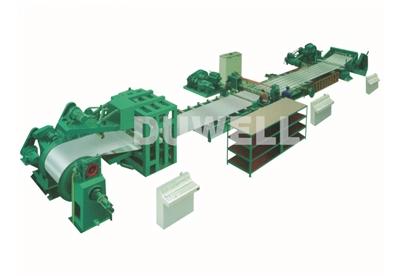

The Simple Steel Coil Slitting Line is an efficient and cost-effective solution for processing steel coils into narrower strips with precise width control. Designed for manufacturers and metal processors, this slitting line ensures high productivity, accuracy, and ease of operation. It is ideal for processing various types of steel coils, including carbon steel, stainless steel, and galvanized steel, making it a versatile addition to your production line.
No | Name | Quantity |
1 | Hydraulic decoiler with coil loading car | 1set |
2 | Side guide device | 1 set |

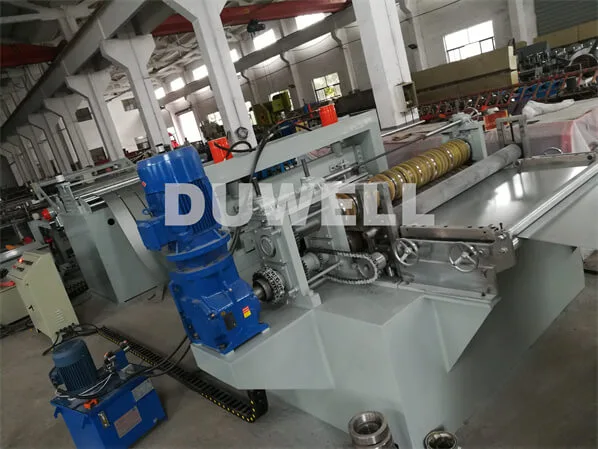

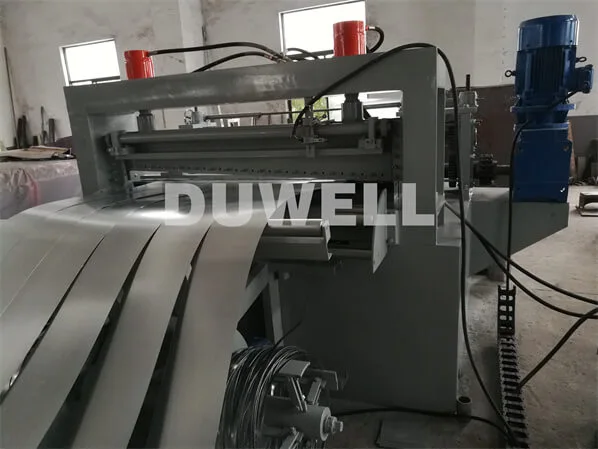

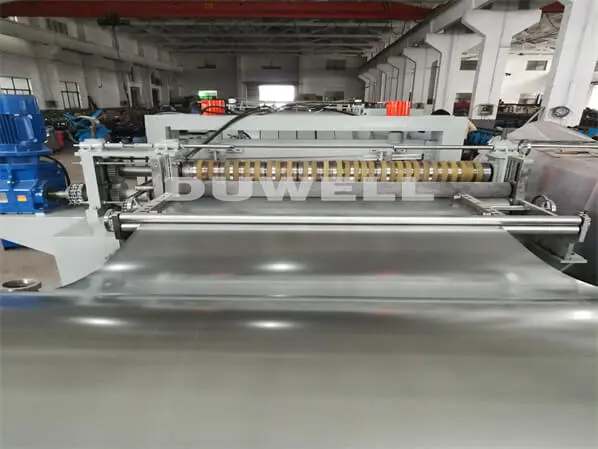

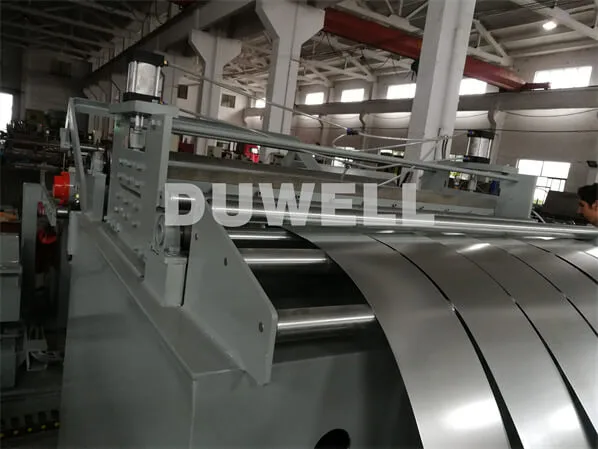

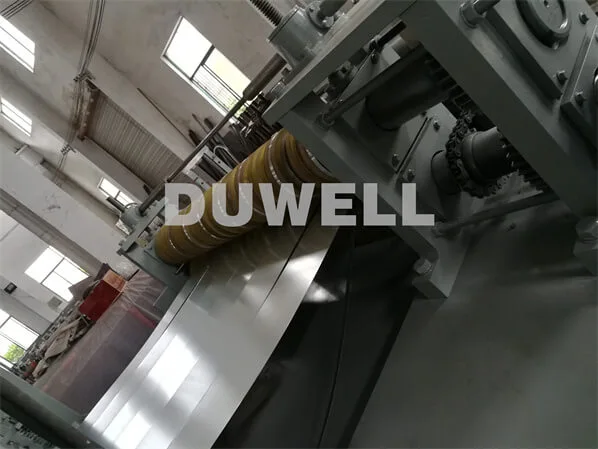

3 | Slitting machine | 1 set |

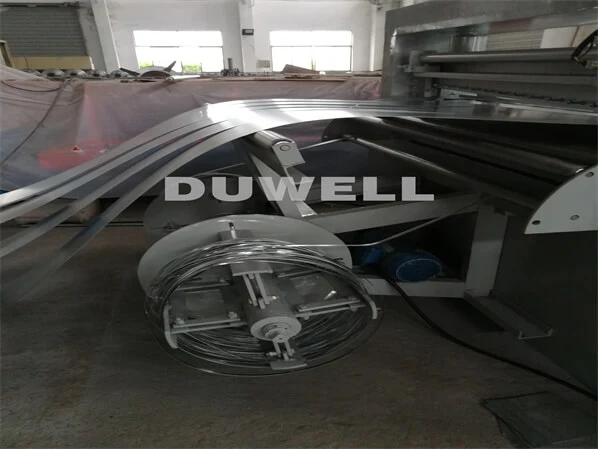

4 | Scrap winder | 1 set |
5 | Tension stand | 1 set |
6 | Recoiler | 1set |
7 | Electrical control system | 1 set |
Main parameters
application: CRS, GI and PPGI steel sheet
coil weight :5~10T
Thickness: 0.3-1.5mm
width of coil material: 300-1300mm
coil I.D: ф508
coil O.D: ф1600mm
line speed :0-80m/min
the diameter of slitting blade shaft: ф180
slitting blade: φ180Xφ360X20
material of slitting blade: 9CrSi
the hardness of slitting blade: HRC58°-60°
recoiler I.D of scrap winder: φ420
recoiler I.D: φ508
tolerance of width error: ≤±0.05mm/2M
power:380V/50Hz/3Ph
Composed devices
No. | Name | Quantity (unit) |
1 | hydraulic decoiler | 1 |
2 | Coil loading car | 1 |
3 | Slitting device (with guiding and leveling roller ,slitter and scrap winder) | 1 |
4 | Hydraulic cutting | 1 |
5 | Hydraulic tank | 3 |
6 | Controller | 1 |
7 | Extension device | 1 |

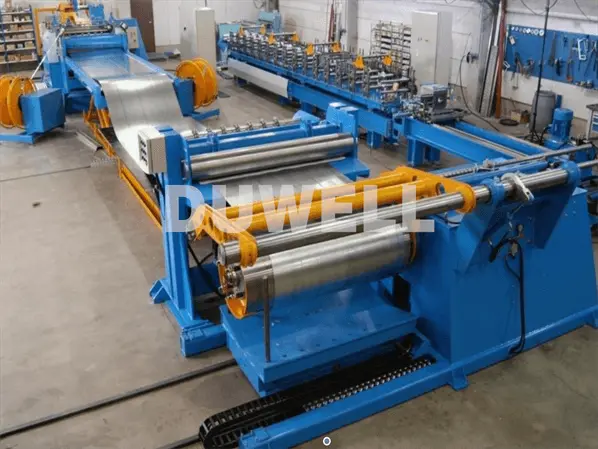

8 | hydraulic Recoiler | 1 |
9 | Coil unloading car | 1 |
10 | Out table | 1 |
The production flow of equipment:
hydraulic decoiler with coil loading car → Guiding and leveling→ slitting →Hydraulic shear→ extension → hydraulic recoiler with coil unlading car (Out table optional)
The simple slitting line can work the steel material thickness from 0.3~1.5mm.
Simple slitting line has the simple working process, as following:
Decoiler--Guiding and leveling--Slitting--Hydraulic shear（optional)---Extension device---Recoiler
Simple slitting line working speed is approx. 20 meters per minute.
The Simple Steel Coil Slitting Line can handle carbon steel, stainless steel, galvanized steel, and other similar metal coils.
The slitting line ensures high precision with a tolerance of ±0.1mm, depending on material type and thickness.
Yes, we offer installation, commissioning, and operator training to ensure smooth operation.
