DUWELL designs and manufactures rolling shutter slat roll forming machine systems for producing flat, curved, and custom metal shutter profiles. The line continuously forms cold-rolled steel, pre-painted steel, galvanized steel, stainless steel, or aluminum coils into accurately shaped slats for commercial, industrial, and residential roller shutter doors.
According to the approved profile and line configuration, the machine typically processes 0.5–1.5 mm metal coil at 8–25 m/min. PLC control coordinates feeding, roll forming, length setting, and cutting. Hydraulic or servo-following cutting and optional micro-perforation or window-hole punching can be configured for the finished shutter design.
For manufacturers planning a complete roller shutter door machine system, DUWELL can also supply guide rail, bottom slat, shutter box, door frame, punching, and auxiliary equipment around the required door structure.
DUWELL specializes in the design and manufacturing of roller shutter roll forming machine systems for various shutter door applications. Our machines support a wide range of slat profiles, including flat slats, curved slats, and customized shutter profiles. Our shutter slat machine is suitable for processing different materials such as pre-painted steel, galvanized steel, stainless steel, and aluminum.
In addition to rolling shutter slat roll forming machine, DUWELL also provides a full range of roller shutter door machine components and production equipment, including guide rail roll forming machines, micro-perforation punching machines, rolling shutter bottom machine solutions, and related auxiliary equipment. These systems can be seamlessly integrated with the rolling shutter slat roll forming machine to build a complete and efficient roller shutter production line.
The specifications of automatic shutter door rolling machine are finalized according to the approved shutter profile, material, thickness, and production target.
| Suitable materials | Cold-rolled steel, pre-painted steel, galvanized steel, stainless steel, and aluminum |
| Typical material thickness | 0.5–1.5 mm, according to material and profile design |
| Production speed | 8–25 m/min, depending on profile, thickness, punching, and cutting method |
| Forming stations | 14–16 steps, according to profile design |
| Roller material | GCr15 with heat treatment and chrome-plated surface; hardness HRC 58–62 |
| Shaft material | 45# steel with heat treatment |
| Standard cutting | Hydraulic cutting |
| Cutting blade material | Cr12MoV, quenched to HRC 58–62 |
| Control system | Industrial computer and PLC control |
| Standard power supply | 380 V, 50 Hz, 3 phase; customized electrical standards are available |
| Production lead time | Approximately 80 days, including production and final testing |
Coil loading: Steel or aluminum coil is placed on the uncoiler.
Guiding: The entry guide aligns the strip before forming.
Optional punching: A press or hydraulic punching unit creates micro-perforations or square window holes when required.

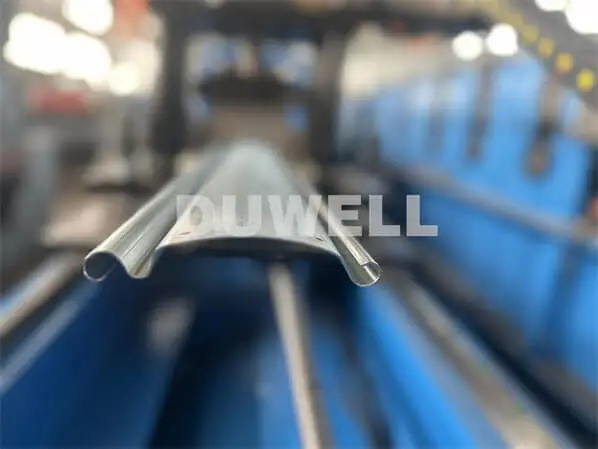

Roll forming: The strip passes through progressive roller stations to create the shutter slat profile.
Straightness adjustment: The adjusting device corrects the final slat straightness.
Cutting: The profile is cut to the programmed length by the selected hydraulic or servo-following system.
Run-out: Finished slats are received on the run-out table for collection and stacking.

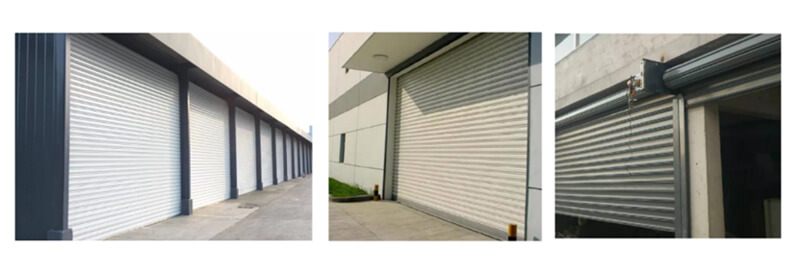

Duwell shutter slat machine is widely used in commercial, industrial, and residential shutter door manufacturing.

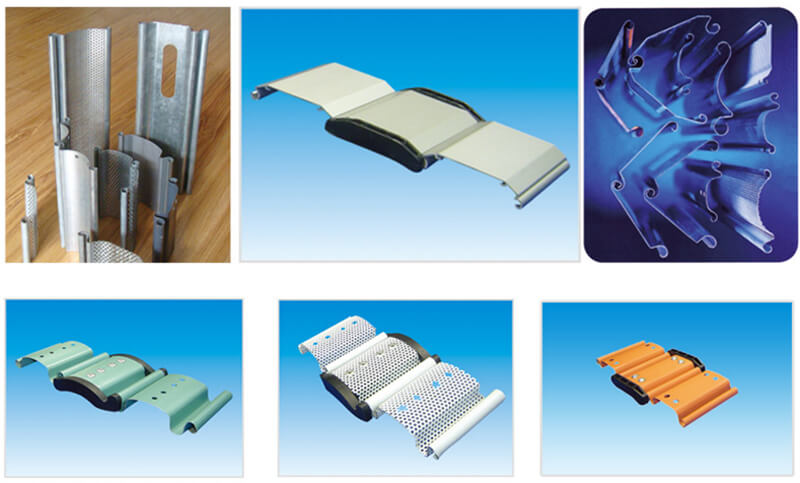

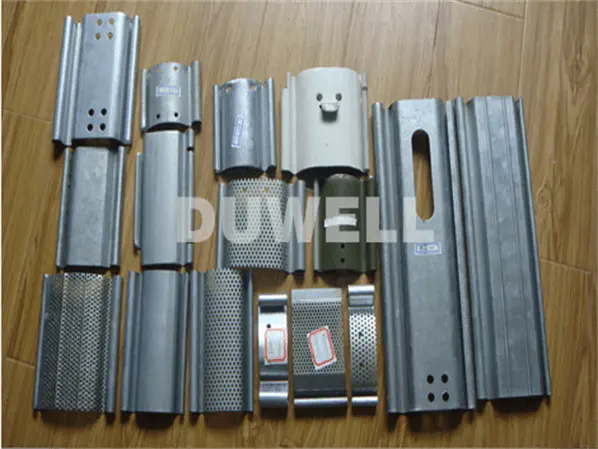

The DUWELL automatic roller shutter door roll forming machine line is engineered around the customer's profile dimensions and finished shutter requirements. Typical products include:
| Slat or profile type | Available features | Typical application |
| Flat shutter slats | Smooth or formed surface, customized width and lock geometry | Commercial shops, counters, and interior security shutters |
| Curved shutter slats | Profile curvature and interlocking edges made to drawing | Residential, commercial, and industrial roller shutters |

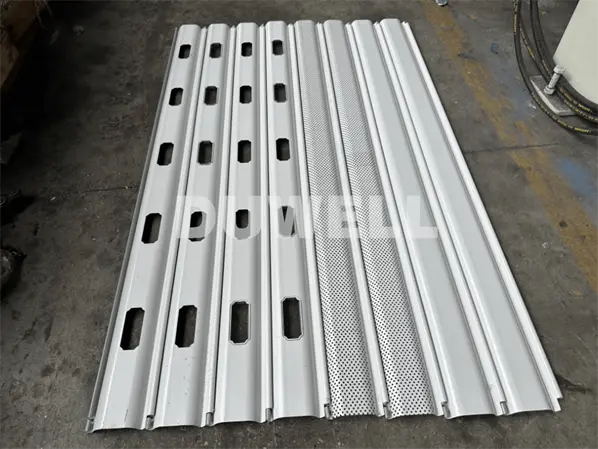

| Micro-perforated slats | Press or hydraulic punching for ventilation and visibility | Retail storefronts, shopping areas, and ventilated closures |
| Slats with square window holes | Customized window position and repeat pattern | Security shutters requiring partial visibility |
| Custom shutter profiles | Tooling designed from a profile drawing or physical sample | Project-specific shutter doors and replacement profiles |
Uncoiler: Loading the steel or aluminum coil
Profiling Roll Forming Machine: For precise profile forming and stable operation as a high-performance rolling shutter forming machine.
Adjusting device: For final slats straight adjusting.
Hydraulic cutting: For precise cuts.
Out Table: Stacking the finished slats.
Each rolling shutter slat roll forming machine is engineered for smooth feeding, accurate forming, and stable cutting performance.
This equipment can also be configured as a rolling shutter door machine or shutter door roll forming machine according to different shutter slat specifications and production requirements.
Main specification
Suitable plate: Customized
Forming stations: 14~16 steps
Material of rollers: Gcr15, with heat treatment and chrome plating on the surface. HRC58~62
4Material of shaft: 45# steel, with heat treatment ,
Cutting: Hydraulic cutting
Material of cutting knife: Cr12Mov, Quench HRC58-62
The rolling shutter slat roll forming machine is controlled by industry computer-PLC.
Working schedule
Put the steel coil on the un-coiler-----------Guiding—→Roll former—→Hydraulic cutting—→Run out table
The integrated production process makes the equipment an efficient roll shutter door machine for continuous shutter slat manufacturing.

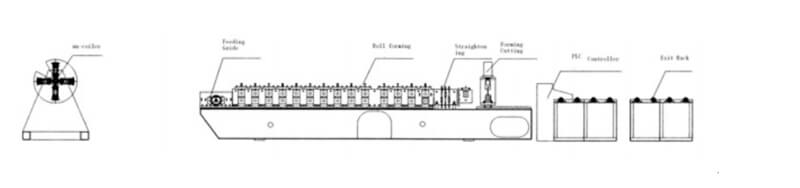

Simple drawing of machine

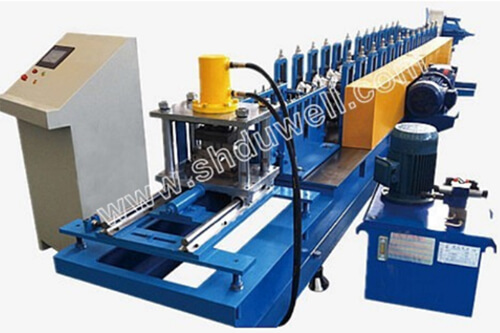

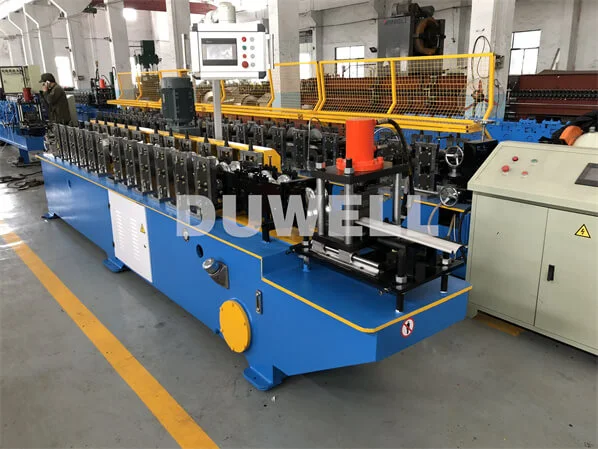

Machine picture

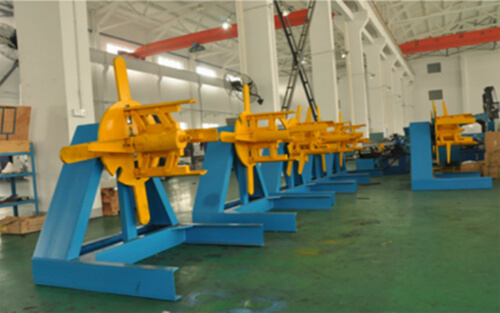

decoiler

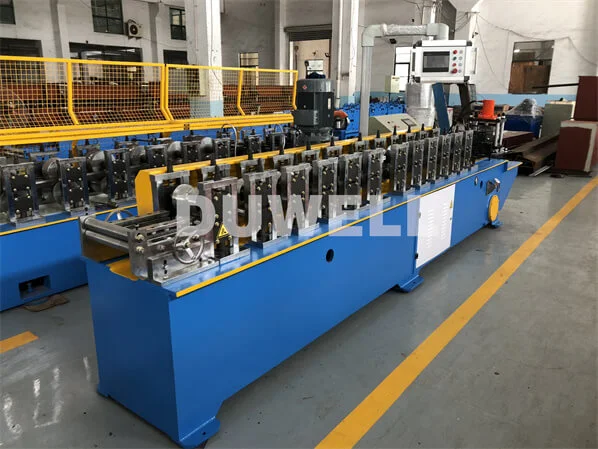

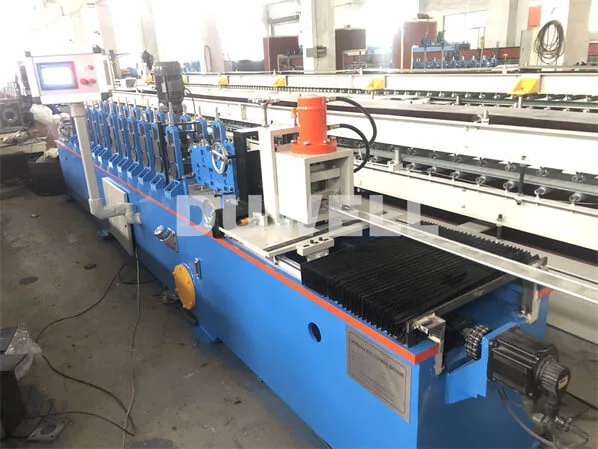

Roll former

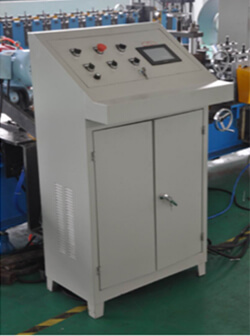

PLC control system
| Production requirement | Recommended configuration |
| One standard slat profile | Single-profile line with dedicated roller tooling for stable continuous output |
| Two different slat profiles | Dual machine with two roller sets installed side by side |
| Cost-efficient cut-to-length production | Stop hydraulic cutting; the line pauses during each cut |
| Continuous higher-output production | Servo-following hydraulic cutting; the profile continues moving during cutting |
| Perforated or windowed slats | Integrated press or hydraulic punching device with profile-specific punching tooling |
| Local electrical standard | Control cabinet and electrical components configured to the factory voltage, frequency, and phase |
Drawing-based engineering: Forming rollers, stations, guides, cutting tools, and punching options are designed around the approved profile.
Wear-resistant tooling: GCr15 rollers are heat-treated and chrome-plated to HRC 58–62; Cr12MoV cutting blades are quenched to HRC 58–62.
Production flexibility: Single-profile and dual-profile lines, multiple cutting systems, and optional punching are available.
Complete shutter equipment: Related machines are available for guide rails, bottom rails, shutter boxes, frames, and specialized slat profiles.
Electrical customization: The standard 380 V, 50 Hz, three-phase system can be adapted to local factory power.
Machine testing: The stated production lead time includes manufacturing and final testing before delivery.
The slat roll forming line manufactures the main interlocking shutter curtain profiles. A complete roller shutter door may also require guide rails, a bottom rail, shutter box, frame profiles, and other auxiliary components. DUWELL supplies related machines that can be combined into a coordinated production system:
| Equipment | Produced component | Product link |
| Bottom slat or rail machine | Reinforced bottom closure profile for the shutter curtain | View Bottom Slat or Rail Machine |
| Door guiding rail roll forming machine | Side guide channels for shutter door movement | View Door Guiding Rail Machine |
| Door frame roll forming machine | Metal frame profiles used around the door opening | View Door Frame Machine |
| Shutter box roll forming machine | Protective housing profiles for the rolled shutter curtain | View Shutter Box Machine |
| PU-foamed shutter forming machine | Insulated 39/42/55 mm shutter slats | View 39/42/55 mm Machine |
| Large shutter slat forming machine | 77/95 mm shutter profiles | View 77/95 mm Machine |
Yes. DUWELL has one type of dual machine, which has two sets of rollers in one machine side by side, for different shutter profiles. Please contact with DUWELL to get more information.
We offer hydraulic cutting (for cost efficiency) or servo cutting (for higher precision and smoother cuts). The choice depends on your production needs.
The machine can handle various metal coils, including cold-rolled steel, galvanized steel, stainless steel, and aluminum, with typical thicknesses ranging from 0.5mm to 1.5mm.
The machine can produce 8-25 meters per minute, ensuring high efficiency for large-scale orders.
Absolutely! The PLC control system allows for simple operation, and the machine is designed for low maintenance with easily accessible components.
Standard models run on 380V, 50Hz, 3-phase power, but we can customize based on your local power specifications.
80 days including production and final testing working. The same lead time generally applies to customized shutter door rolling machine projects with special profile requirements.
We have two types of cutting for this roller shutter machine: 1) Servo following hydraulic cutting: when cutting the profile, the machine will not stop. 2) Stop hydraulic cutting: When cutting, the machine will stop.
Yes, we can put pressing machine or hydraulic punching device in the machine, to make micro-perforation for the shutters or square window hole for shutters.
