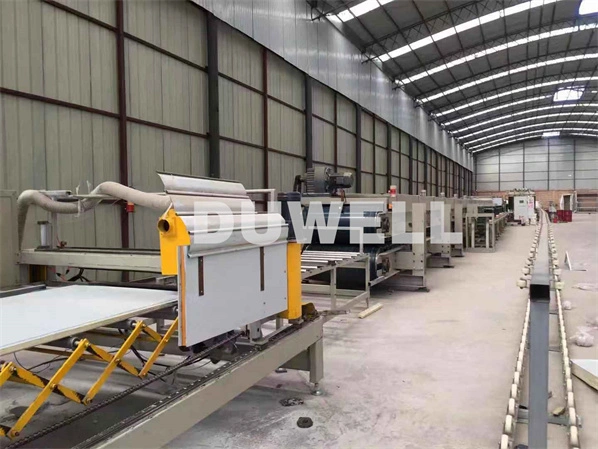

The Duwell Polyurethane Sandwich Panel Production Line is an advanced and fully automated system designed for manufacturing high-quality insulated sandwich panels with excellent thermal performance and structural strength. The panels consist of two metal sheets (steel or aluminum) and a rigid insulation core such as polyurethane (PU), PIR, or rock wool, making them ideal for industrial, commercial, and agricultural buildings.
Designed for continuous and stable operation, this sandwich panel production line ensures accurate thickness control, strong bonding between metal skins and insulation core, and consistent surface quality. It is suitable for large-scale insulated panel manufacturing projects with high requirements for efficiency and product uniformity.
A sandwich panel production line is a highly efficient and fully automated manufacturing system
designed for producing insulated sandwich panels used in industrial buildings, warehouses,
cold storage rooms, clean rooms, commercial facilities, and residential construction projects.
The production line combines advanced roll forming technology, polyurethane (PU/PIR) foaming systems,
laminating units, heating systems, and automatic cutting equipment to produce high-quality insulated panels
with excellent thermal and structural performance.
Modern sandwich panel production lines are widely used for manufacturing：
roof panels
wall panels
cold room panels
garage door panels
and industrial insulated panels.
These production systems can process galvanized steel, pre-painted steel, aluminum sheets, stainless steel,
and other metal materials combined with insulation cores such as polyurethane (PU), polyisocyanurate (PIR), EPS, or rock wool.
The complete sandwich panel production line is designed with precision engineering, stable operation, and intelligent
PLC control systems to ensure high production efficiency, accurate panel dimensions, and consistent insulation quality.
The line can produce various panel thicknesses, widths, joint profiles, and surface patterns according to customer
requirements and international standards.
Our sandwich panel production lines feature advanced automation technology, energy-saving systems,
and heavy-duty machine structures, providing reliable long-term performance with low maintenance costs.
The machines are suitable for continuous large-scale industrial production and customized panel manufacturing solutions.
Main Features of Sandwich Panel Production Line
• Fully automatic production process
• High-speed continuous panel manufacturing
• Advanced PU/PIR foaming technology
• Accurate temperature and thickness control
• PLC control system with touchscreen operation
• Suitable for roof panels, wall panels, and garage door panels
• Customizable panel profiles and insulation thickness
• Stable operation and low maintenance
• High production efficiency and energy saving
Applications of Sandwich Panels
Sandwich panels produced by the line are widely used in:
• Industrial buildings
• Steel structure workshops
• Cold storage rooms
• Clean rooms
• Commercial buildings
• Prefabricated houses
• Garage doors
• Refrigerated warehouses
• Modular construction projects
Advantages of Sandwich Panel Production Line
The sandwich panel production line offers excellent insulation performance, lightweight structure,
fire resistance, sound insulation, and fast installation benefits. Compared with traditional building materials,
insulated sandwich panels help reduce energy consumption and improve construction efficiency.

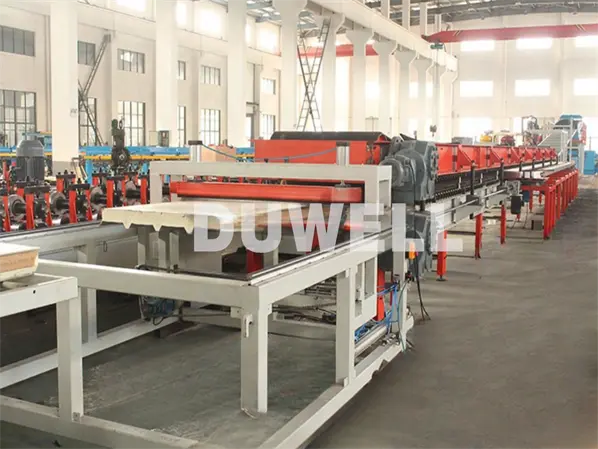

This production line functions as a complete polyurethane sandwich panel manufacturing line, integrating roll forming, high-pressure foaming, heating conveyor, panel curing, and servo cutting into one continuous process. The optimized line structure guarantees stable foaming performance and reliable panel quality during long-term operation.
By adjusting the forming and side-stop modules, the same polyurethane sandwich panel line can produce panels with different thicknesses and profiles, providing flexibility for various building and insulation requirements.
Main specification:
According to customer's sandwich panel profile
Whole line length: approx. 80 meters
Decoiler: Hydraulic Uncoiler
Forming station: According to required sandwich panel
Driving type: chain transmission
Main motor power: 7.5KW x 2 sets

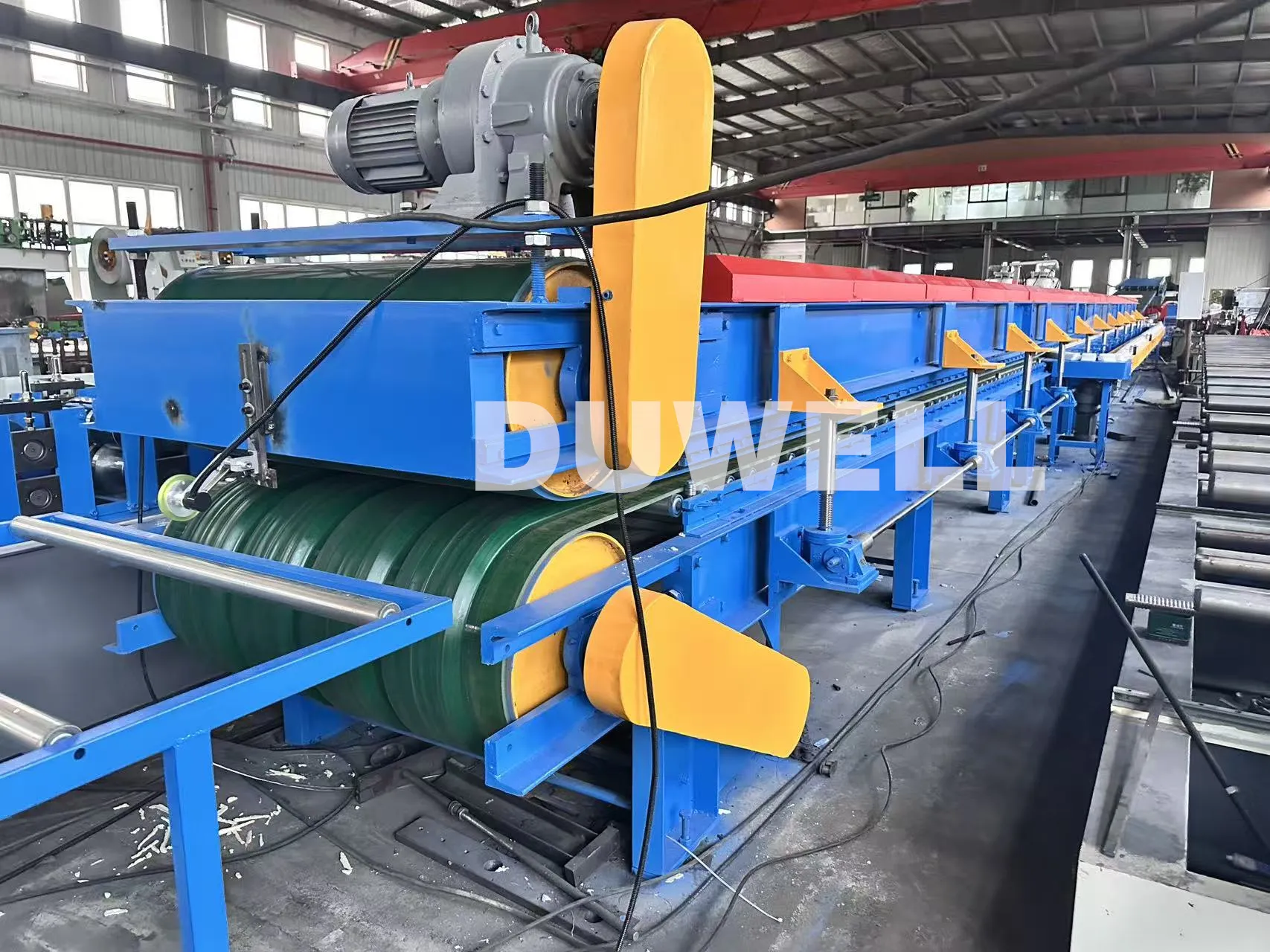

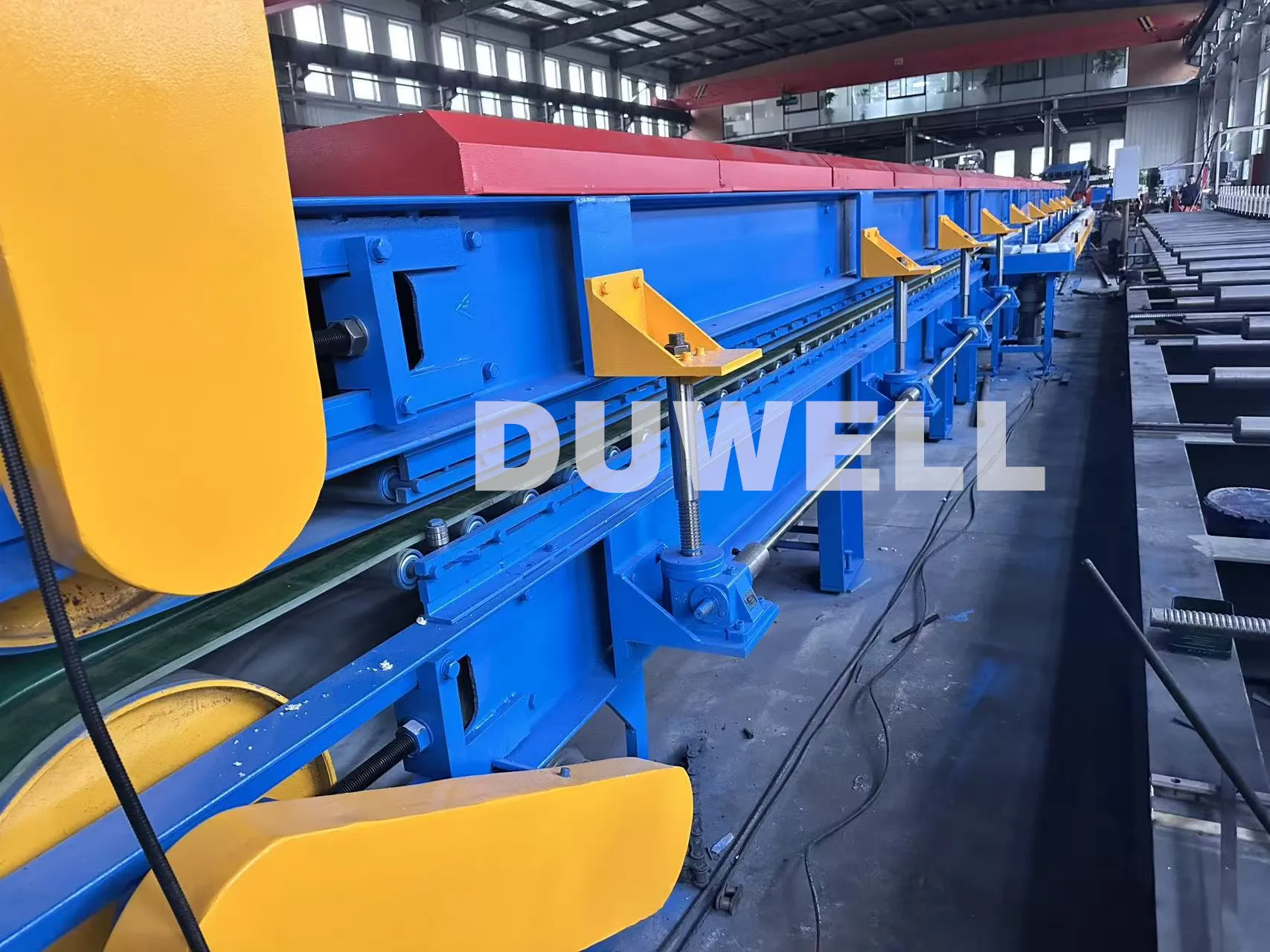

30m belt conveyor with heating and side guide device
Control system: Delta control system
Cutting type: Servo following saw cutting
Cutting machine: flying saw cutting with servo motor"
Panel thickness: 30mm~100mm( according to requirement)
Whole line working speed: 6-8m/min

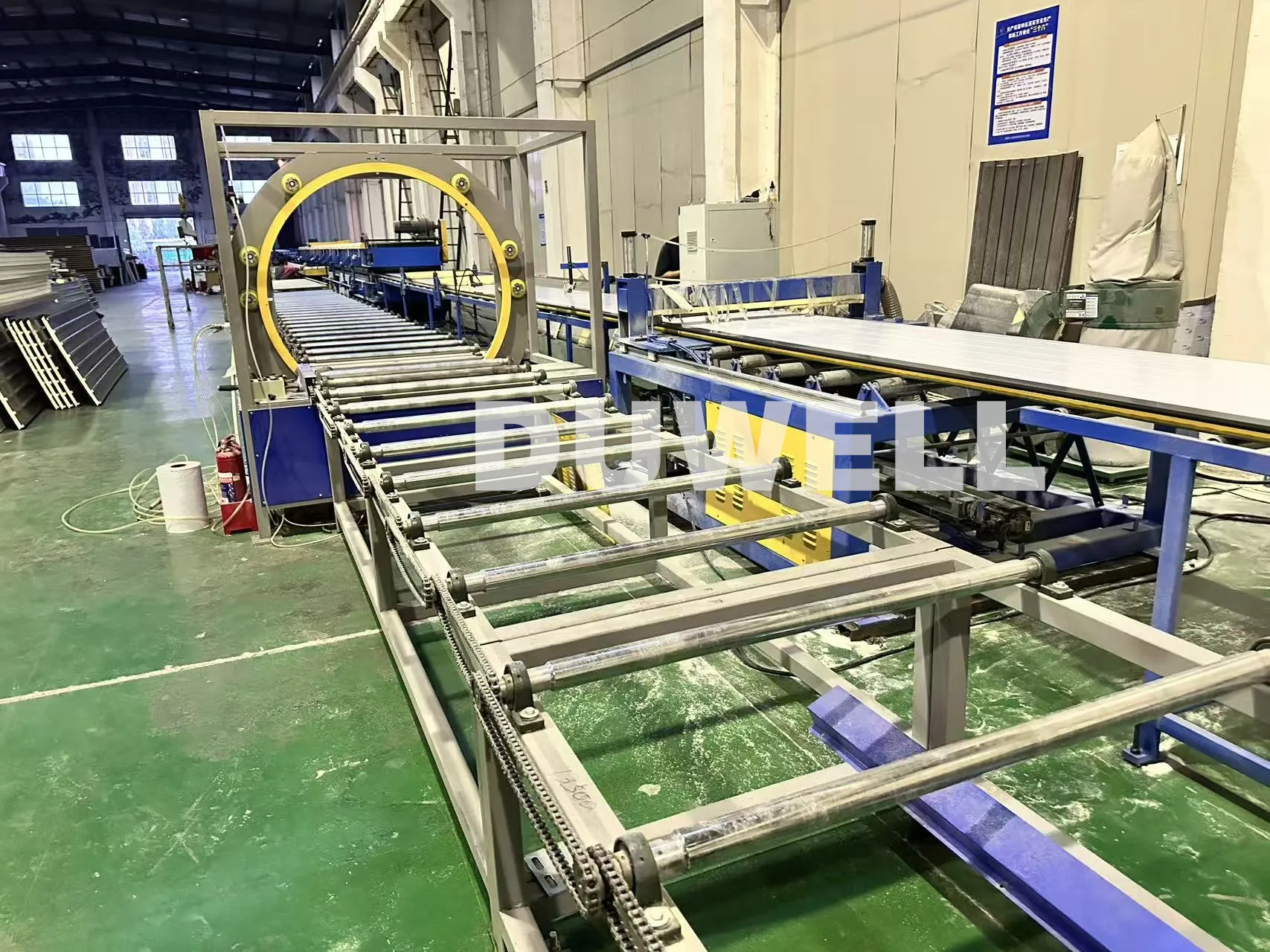

Run out: 6m run out table
Foam injection machine: High pressure foaming machine
Industrial plants and workshops
Commercial buildings
Cold storage and logistics centers
Agricultural buildings and warehouses
The polyurethane sandwich panel line is especially suitable for projects requiring high insulation efficiency, fast installation, and long service life.
A sandwich panel production line is an automated manufacturing system used to produce insulated sandwich panels for roofs, walls, cold rooms, garage doors, and industrial buildings. It combines metal sheet forming, insulation injection, laminating, heating, and cutting processes into one continuous production system.
The production line can manufacture:

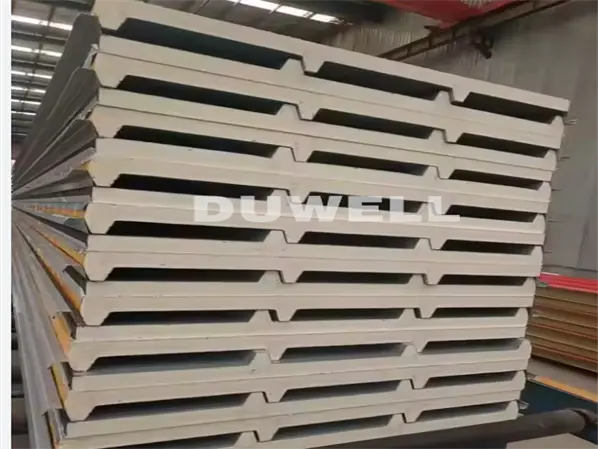

• PU/PIR sandwich panels
• EPS sandwich panels
• Rock wool sandwich panels

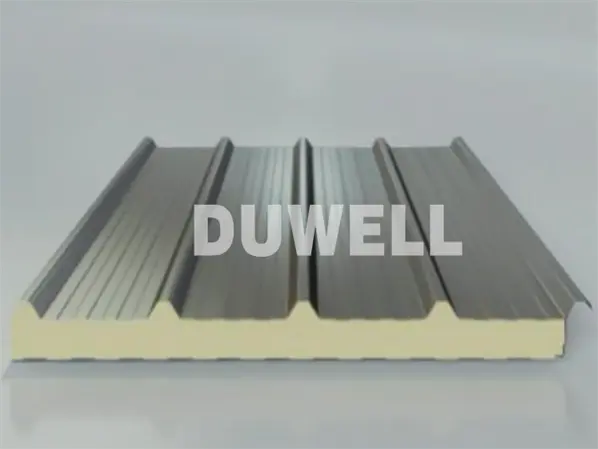

• Roof sandwich panels
• Wall sandwich panels
• Cold room panels
• Garage door insulated panels
Our sandwich panel production lines support:
• Polyurethane (PU)
• Polyisocyanurate (PIR)
• Expanded Polystyrene (EPS)
• Rock wool
•Mineral wool
The machine can process:
• Galvanized steel
• Pre-painted steel
• Aluminum
• Stainless steel
•Color-coated metal sheets
Yes. The line can be fully automatic with PLC control systems, automatic feeding, foaming, laminating, cutting, stacking, and touchscreen operation.
Production speed normally ranges from 3 to 12 meters per minute depending on panel type, insulation material, and machine configuration.
Yes. We provide customized sandwich panel production lines according to panel dimensions, insulation type, factory layout, production capacity, and local market requirements.
Sandwich panels are widely used in:
• Industrial buildings
• Warehouses
• Cold storage rooms
• Clean rooms
• Prefabricated houses
• Commercial buildings
• Refrigerated facilities
•Garage doors
We usually use internationally recognized PLC brands such as Siemens, Schneider, Delta, or Mitsubishi according to customer requirements.
Yes. We provide overseas installation guidance, commissioning, operator training, and complete technical support.
Yes. Our sandwich panel production lines can be supplied with CE certification and related technical documents for European markets.
The standard warranty period is usually 12 months after installation or 18 months after shipment.
Usually, 3–6 workers are sufficient to operate a complete sandwich panel production line efficiently.
Normally, the production time is about 90–150 days depending on machine configuration and customization requirements.
We provide high-quality machines with advanced technology, stable performance, customized solutions, competitive prices, and professional after-sales service. Our complete turnkey solutions help customers improve productivity and product quality worldwide.
