Solar Strut Channel: The Backbone of Modern Solar Mounting Systems
Introduction to Solar Strut Channel
With the rapid growth of renewable energy projects worldwide, solar photovoltaic (PV) systems are becoming one of the most important solutions for clean energy generation. Behind every reliable solar installation, a strong and durable mounting structure is essential.
Solar strut channel, also known as solar mounting channel, photovoltaic support channel, perforated C channel, slotted strut channel, or Unistrut channel, is one of the key structural components used in solar panel mounting systems.
These cold-formed steel channels provide a strong framework for fixing solar panels on different applications, including:
* Ground-mounted solar farms
* Commercial rooftop solar systems
* Industrial photovoltaic projects
* Solar carports
* Agricultural solar installations
Due to its excellent strength, flexibility, and easy installation, solar strut channel has become a preferred solution for solar mounting manufacturers and EPC contractors around the world.
⸻
What Is Solar Strut Channel?

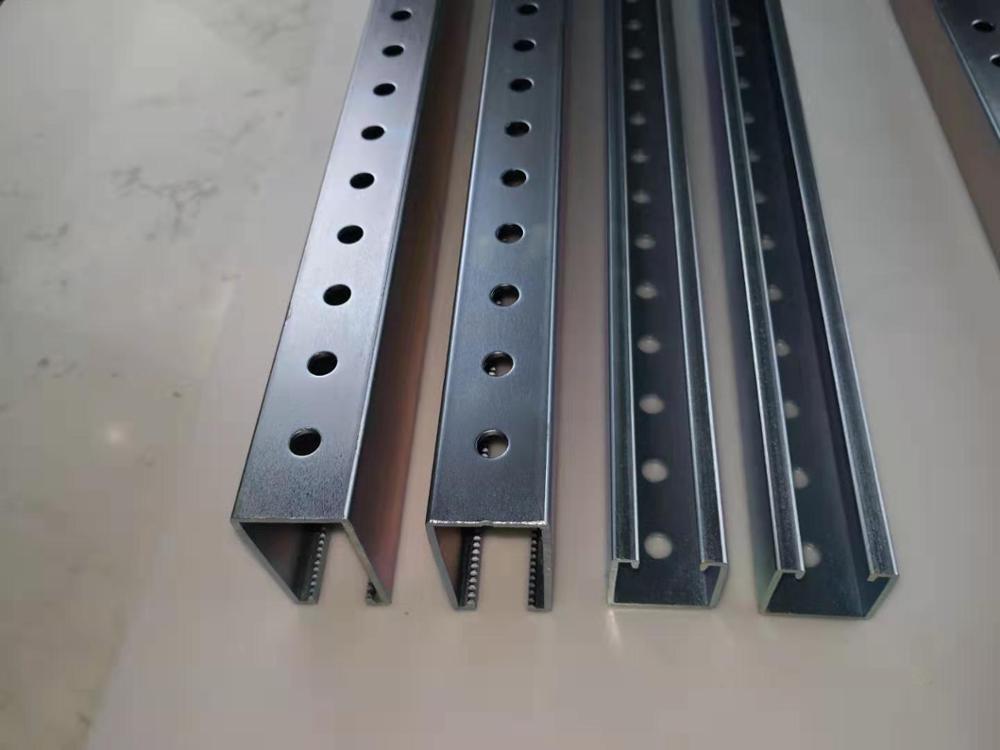

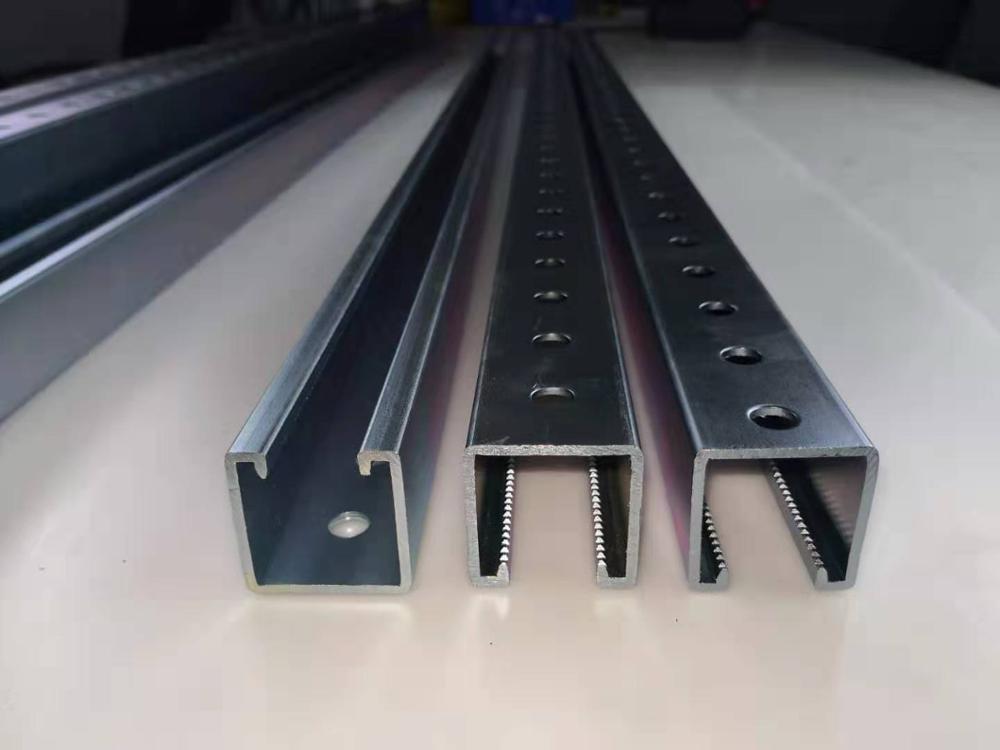

Solar strut channel is a specially designed C-shaped or U-shaped steel profile manufactured through a continuous cold roll forming process.
Unlike traditional welded steel structures, roll formed solar channels are produced from steel coils with precise dimensions and consistent quality.
The typical solar strut channel features:
* C channel or U channel structure
* Pre-punched holes or slots
* Galvanized steel surface protection
* High load-bearing capability
* Easy connection with bolts, nuts, clamps, and accessories
Common solar strut channel sizes include:
* 41×21 mm
* 41×41 mm
* 41×52 mm
* 41×62 mm
* 41×82 mm
Different sizes can be selected according to project requirements, wind load conditions, and solar panel installation designs.
⸻
Applications of Solar Mounting Strut Channel
1. Solar Panel Mounting Systems
The main application of solar strut channels is supporting photovoltaic panels.
The channels work as structural rails or support frames, connecting solar modules with:
* Solar clamps
* Brackets
* Fasteners
* Ground mounting systems
* Roof mounting structures
The pre-punched holes allow installers to quickly position and fix components without additional drilling on site.
⸻
2. Ground Mounted Solar Projects
For large-scale solar farms, structural strength and installation efficiency are critical.
Perforated C channels provide:
* High mechanical strength
* Long service life
* Easy transportation
* Fast installation
Galvanized steel solar channels can withstand outdoor environments, including rain, humidity, and temperature changes.
⸻
3. Solar Carport Structures
Solar carports require strong support structures to carry photovoltaic modules while protecting vehicles.
Solar strut channels are widely used because they provide:
* Flexible connection methods
* High load capacity
* Simple assembly
* Cost-effective construction
⸻
4. Cable Management and Industrial Support
Besides solar applications, perforated C channels are also widely used for:
* Cable tray supports
* Electrical installation systems
* HVAC supports
* Mechanical framing systems
* Industrial structures
Because of their universal connection design, strut channels can be adapted to many construction applications.
⸻
Materials Used for Solar Strut Channel Production
Solar mounting channels are usually manufactured from high-strength steel materials.
Common materials include:
Galvanized Steel
Hot-dip galvanized steel is the most popular choice for solar applications.
Advantages:
* Excellent corrosion resistance
* Suitable for outdoor installation
* Long service life
* Low maintenance requirements
Pre-Galvanized Steel
Pre-galvanized steel coils are widely used for indoor and outdoor applications where moderate corrosion protection is required.
Stainless Steel
For special environments such as coastal areas or chemical industries, stainless steel provides superior corrosion resistance.
⸻
Manufacturing Process of Solar Strut Channel
A professional solar strut channel production line uses a fully automatic cold roll forming process.
The typical production process includes:

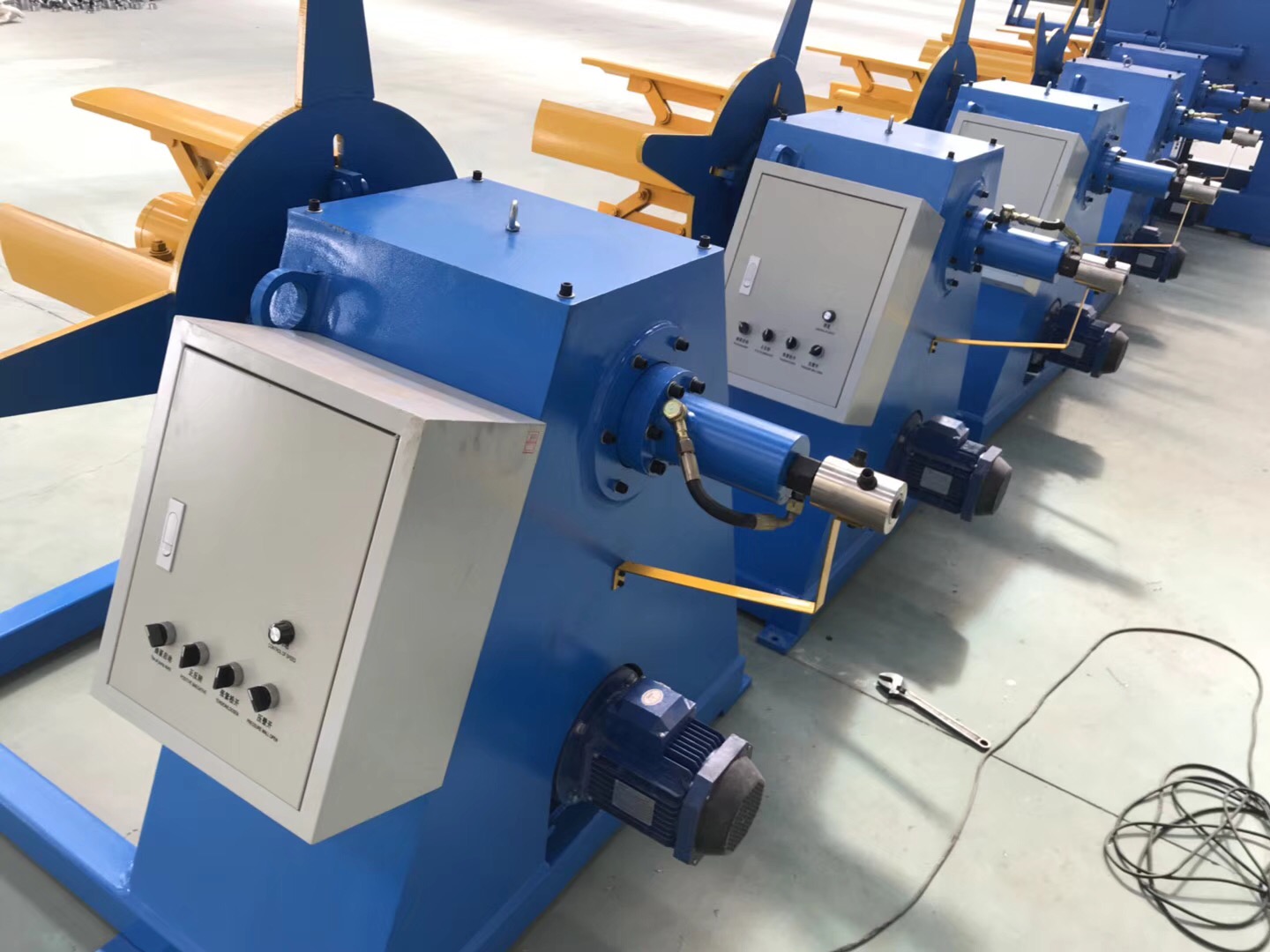

1. Coil Loading
The steel coil is installed on the hydraulic decoiler.
The decoiler automatically feeds the material into the production line.
⸻

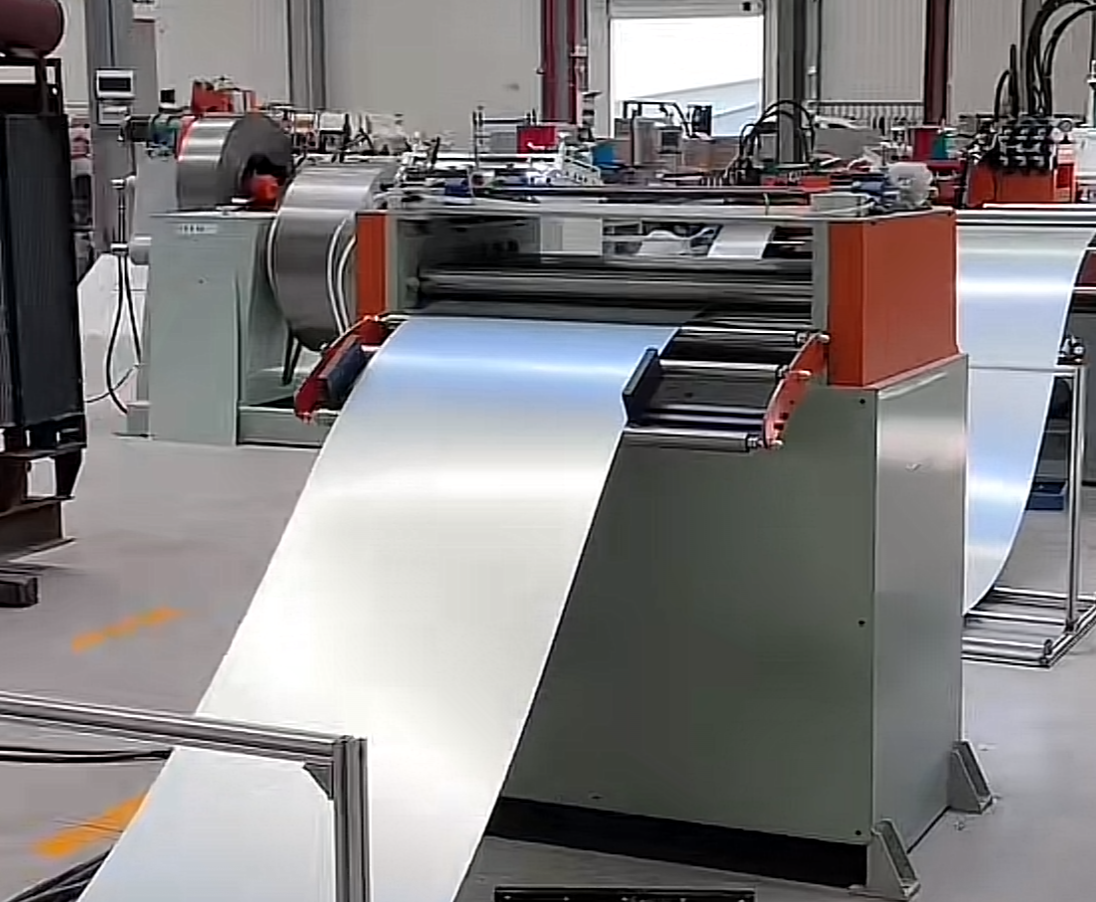

2. Leveling and Feeding
The leveling system removes coil deformation and ensures stable feeding accuracy.
A precise feeding system guarantees:
* Stable production speed
* Accurate punching position
* Consistent profile dimensions
⸻

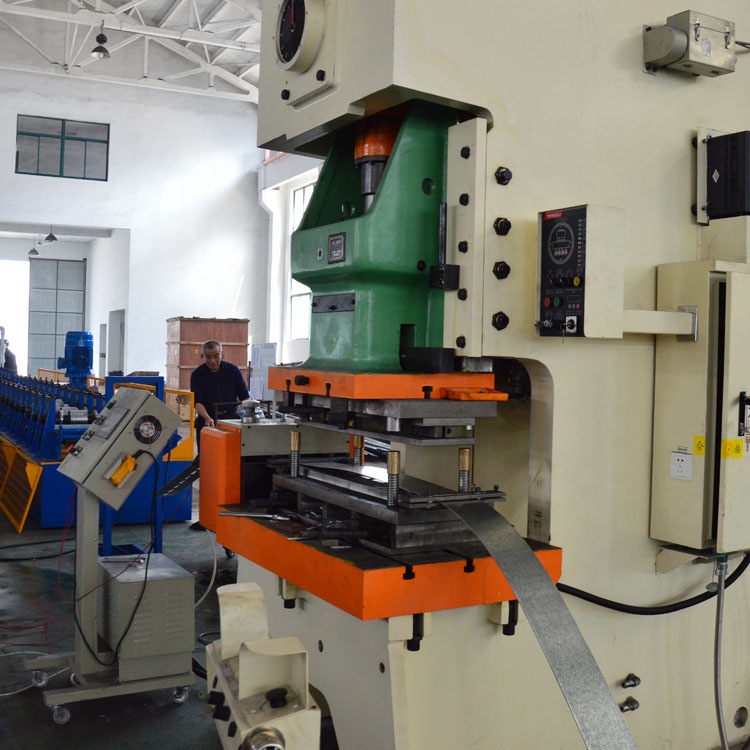

3. Punching Process
One of the most important steps in solar strut channel production is the punching process.
According to customer requirements, the machine can produce:
* Round holes
* Long slots
* Side holes
* Bottom holes
* Customized perforation patterns
Servo punching technology allows accurate hole positioning and improves production efficiency.
.jpg "41-41mm-and-41-21mm-Galvanized-Steel_(1).jpg")
⸻

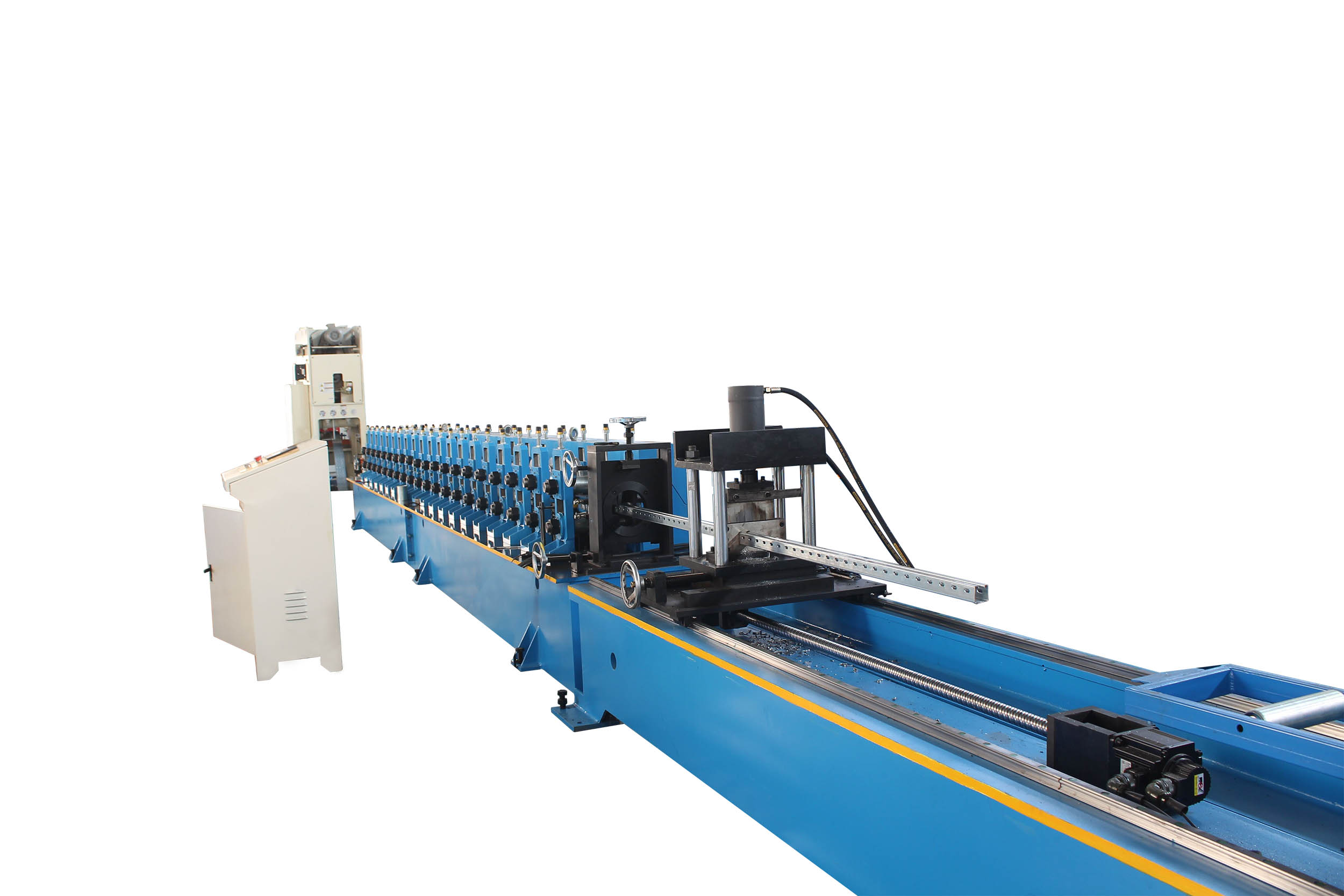

4. Roll Forming Process
After punching, the steel strip enters the roll forming machine.
Through multiple forming stations, the flat steel gradually changes into the final C channel shape.
The cold roll forming process provides:
* High production speed
* Excellent dimensional accuracy
* Smooth surface quality
* Strong structural performance
.jpg "solar-post-roll-forming-machine_(11).jpg")
⸻
5. Cutting Process
The finished solar channel is automatically cut into required lengths.
Common cutting methods include:
* Hydraulic cutting
* Flying saw cutting
* Tracking cutting system
Cutting length can be customized according to customer requirements.
⸻
Solar Strut Channel Roll Forming Machine
A solar strut channel roll forming machine is a complete production line designed specifically for manufacturing photovoltaic mounting channels.
A typical production line includes:
* Hydraulic decoiler
* Leveling machine
* Servo feeding system
* Punching unit
* Roll forming machine
* Cutting system
* PLC control system
* Automatic stacking table
This integrated production solution allows manufacturers to produce high-quality solar mounting channels efficiently.
⸻
Advantages of Producing Solar Strut Channels with Roll Forming Technology
High Production Efficiency
Continuous roll forming allows manufacturers to produce thousands of meters of solar channels with less labor compared with traditional fabrication methods.
Reduced Production Cost
Automatic production reduces:
* Manual labor
* Material waste
* Processing time
High Accuracy
Modern CNC roll forming machines ensure stable dimensions and accurate hole positions.
This is especially important because solar mounting components require precise assembly.
Flexible Production
One solar channel machine can be designed to produce different profiles, such as:
* Solid C channel
* Perforated C channel
* Slotted strut channel
* U channel
* Solar mounting rails
⸻
Why Choose a Professional Solar Strut Channel Machine Manufacturer?
Selecting the right roll forming machine supplier is important for long-term production success.
A reliable manufacturer should provide:
* Customized machine design
* Professional roll forming experience
* Stable electrical components
* Accurate punching technology
* After-sales technical support
Each solar project may require different channel sizes, hole patterns, materials, and production capacity. Therefore, the machine should be customized according to the customer’s final products.
⸻
Future Development of Solar Mounting Channel Industry
The global transition toward renewable energy continues to increase demand for photovoltaic mounting systems.
As solar installations become larger and more complex, manufacturers need:
* Faster production equipment
* Higher precision
* Lower manufacturing costs
* More flexible production solutions
Solar strut channel roll forming technology will continue to play an important role in supporting the global solar energy industry.
⸻
Conclusion
Solar strut channel is a critical component in modern photovoltaic mounting systems. Its strength, flexibility, and easy installation make it widely used in solar farms, rooftop systems, and industrial applications.
For manufacturers looking to enter or expand in the solar mounting industry, investing in a high-quality solar strut channel roll forming machine provides an efficient solution for producing perforated C channels, slotted channels, and customized solar support profiles.
With advanced roll forming technology, manufacturers can achieve higher productivity, better product quality, and stronger competitiveness in the growing renewable energy market.
