What Is PU Foam Profile Production?
PU foam profile production is a modern manufacturing process used to produce foam-filled
metal or composite profiles, widely applied in rolling shutters, doors, insulation panels, and
construction systems.
The system integrates multiple machines into a fully automated production line, including:
• Roll forming machine (forming system)
• PU foaming machine (polyurethane injection system)
• Belt conveyor system (continuous transport)
• Cutting system (automatic cutting & length control)
This integrated solution ensures stable production, high efficiency, and consistent productquality.

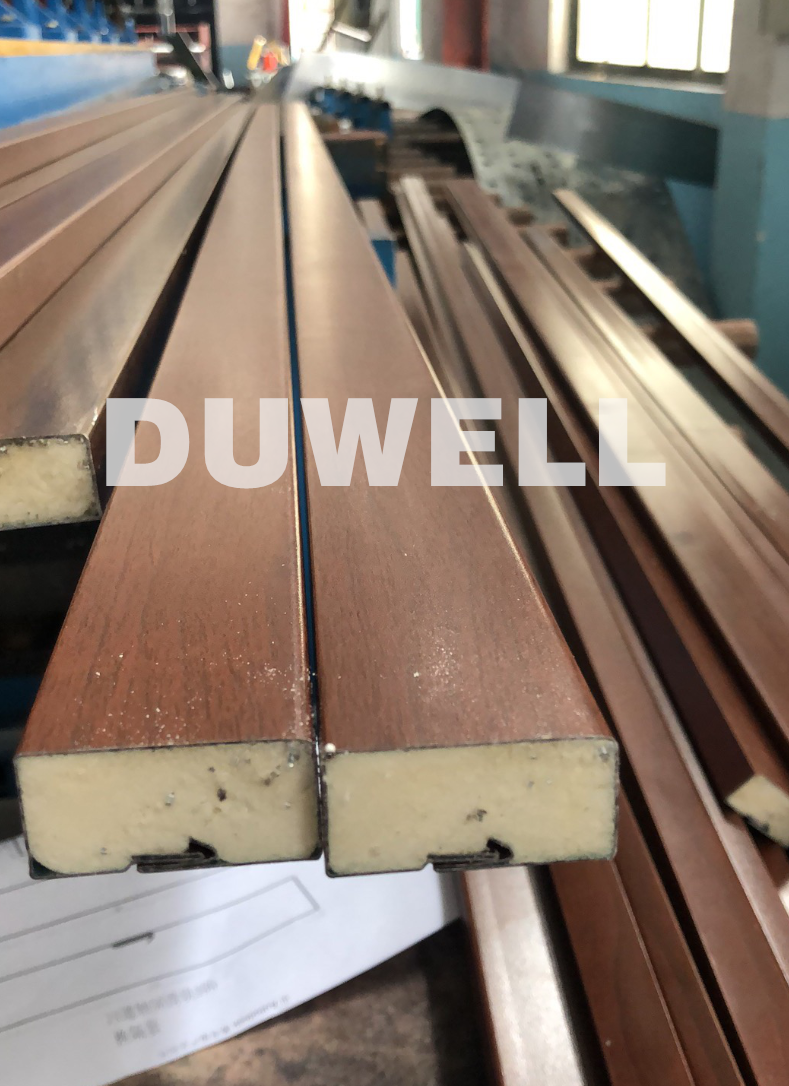

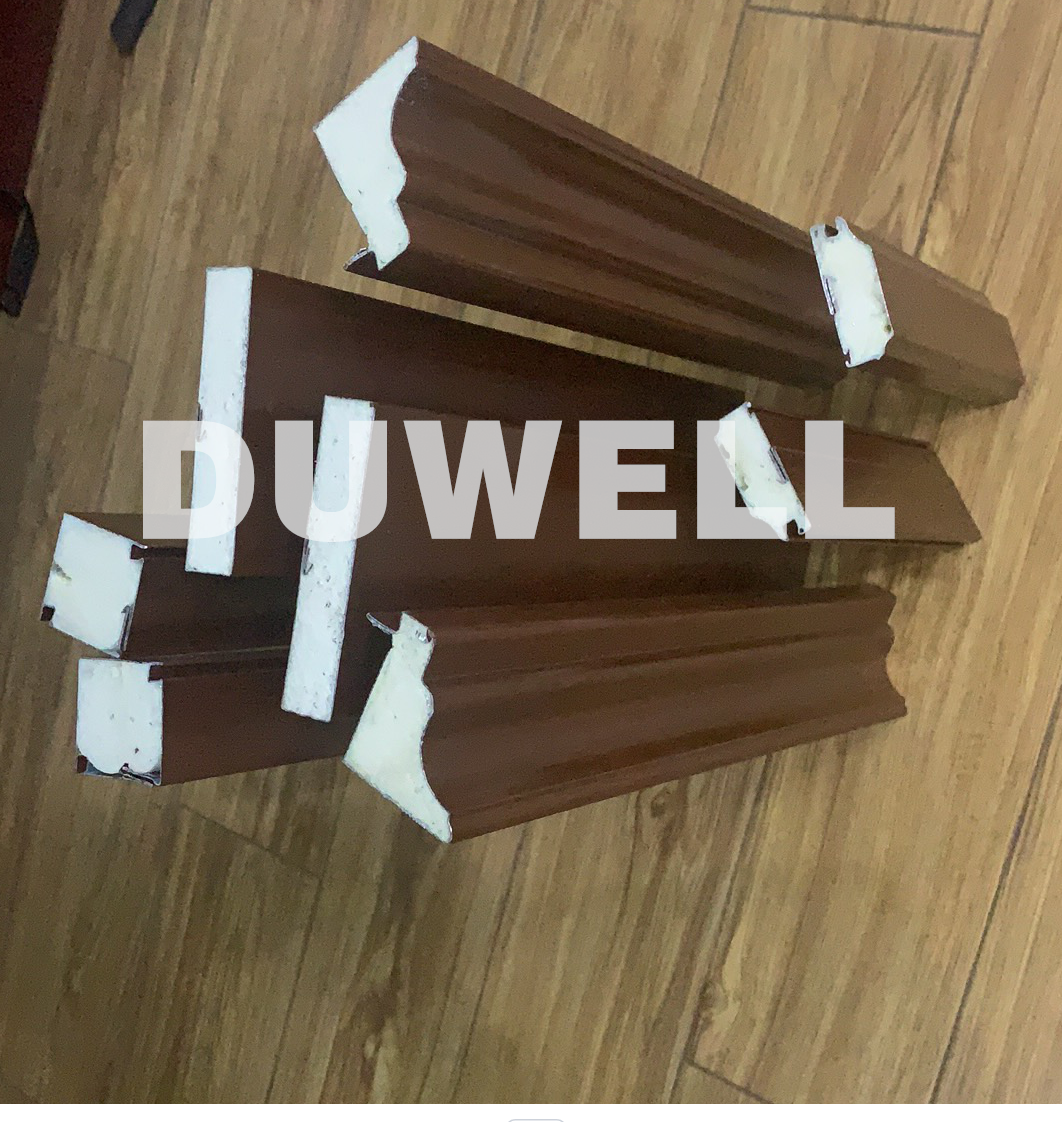

The image below shows typical finished foam-filled profiles produced by this type of line:
(PU foam filled profile samples with metal shell and rigid foam core)
⸻
What Products Can Be Made?
With a complete PU foam profile production line, you can manufacture:
• Foam-filled roller shutter slats
• Insulated door panels
• Window shutter profiles
• Structural insulation profiles
• Lightweight composite building materials
These products combine high strength metal skins with thermal insulation foam cores, making them ideal for energy-saving building systems.
⸻
Key Components of the Production Line
1. Roll Forming Machine
The roll forming system shapes metal coils (steel or aluminum) into precise profile structures.
It ensures:
• Stable forming accuracy
• Adjustable profile design
• High-speed continuous production
2. PU Foaming Machine
This is the core system for injecting polyurethane foam into the profile cavity.
Features:
• High-pressure precise mixing
• Adjustable density control
• Uniform foam filling
• Stable chemical ratio control system
3. Conveyor Belt System
The conveyor system connects the entire line and ensures:
• Continuous production flow
• Stable profile movement
• Synchronization between forming and foaming sections
4. Automatic Cutting Machine
After foaming and curing, the profiles are cut automatically according to preset lengths:
• High precision cutting
• Servo control system
• Custom length programming
⸻
Advantages of the Complete Production Line
Using a fully integrated PU foam profile production line provides significant benefits:
✔ High Automation Level
One operator can manage the whole line, reducing labor cost.
✔ Strong Product Consistency
Foam density and profile shape remain stable across long production runs.
✔ Energy Efficient & Lightweight Products
Foam core structure improves thermal insulation and reduces material weight.
✔ Customizable Design
Different profile shapes can be produced by changing roll forming tools.
✔ High Production Speed
Continuous production system greatly improves output capacity.
⸻
Applications
PU foam filled profiles produced by this line are widely used in:
• Industrial and residential roller shutters
• Garage doors and security doors
• Cold storage insulation systems
• Commercial building insulation structures
• Transport and logistics facilities
⸻
Why Choose an Integrated Production System?
Compared with traditional separate production methods, an integrated PU foam profile production line offers:
• Better synchronization between forming and foaming
• Lower defect rate
• Higher energy efficiency
• Easier maintenance and operation
• Reduced production cost per meter
⸻
Conclusion
A complete PU foam profile production line is a highly efficient solution for manufacturers
who want to produce high-quality foam-filled structural profiles with stable performance and
industrial-scale output.
Whether you are producing roller shutter slats, insulation panels, or customized foam-filled
profiles, this system provides a reliable and scalable manufacturing solution.
