Introduction to Guardrail Roll Forming Machine
A guardrail roll forming machine is a specialized production line designed to
manufacture highway guardrails, crash barriers, and road safety barrier profiles
from galvanized steel coils. These machines are widely used in highway construction road infrastructure projects, bridge protection systems, and traffic safety industries.
With the increasing demand for road safety equipment worldwide, manufacturers
require efficient and reliable highway guardrail production lines to produce high-quality
W-beam guardrails, thrie-beam guardrails, and other customized safety profiles.
Shanghai Duwell provides professional guardrail roll forming machines with high production
efficiency, precise forming technology, and customized solutions according to different country
standards and customer requirements.
⸻
What Is a Guardrail Roll Forming Machine?
A guardrail roll forming machine is an automatic metal forming system that continuously transforms
steel coils into finished guardrail profiles through multiple forming rollers.
The production process usually includes:
1. Decoiling the steel coil
2. Leveling and feeding
3. Servo punching system
4. Roll forming
5. Cutting
6. Automatic stacking (optional)
Unlike traditional press forming methods, roll forming technology allows continuous production with higher efficiency, lower material waste, and better profile consistency.
⸻
Main Applications of Highway Guardrail Machine
Guardrail roll forming machines are mainly used to produce:

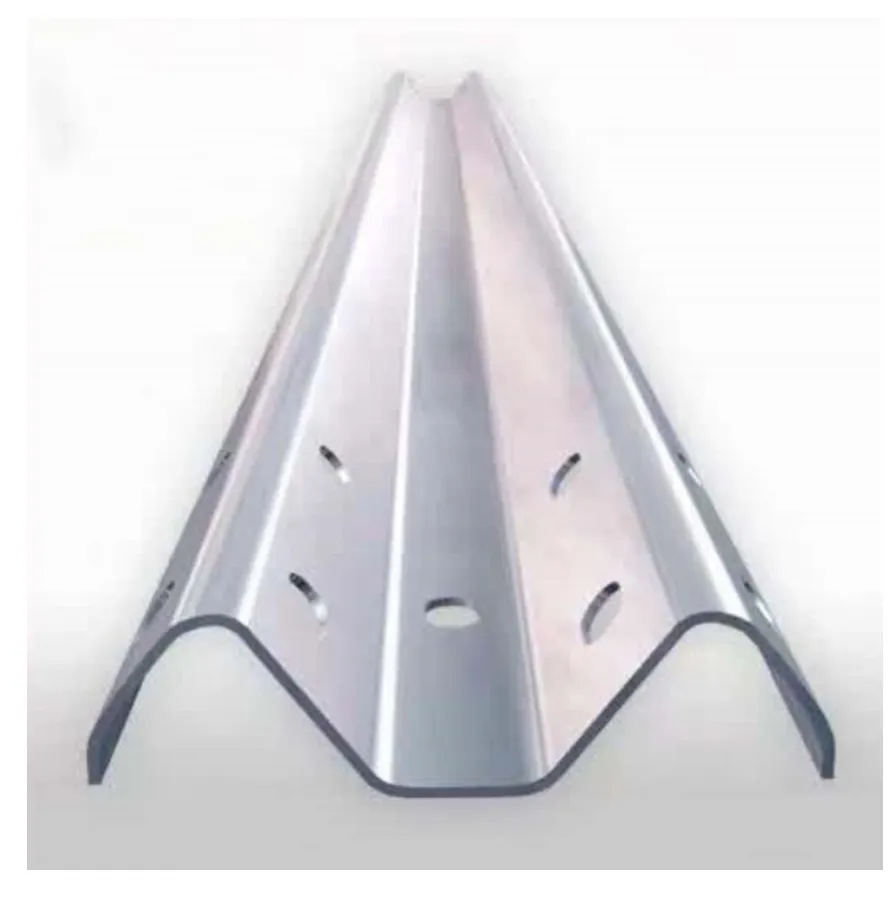

1. W Beam Highway Guardrail
The W-beam guardrail is the most common highway safety barrier profile worldwide.
It is widely installed on:
* Highways
* Expressways
* Bridges
* Road medians
* Mountain roads
* Parking areas
The W-shaped design provides excellent impact resistance and helps reduce vehicle damage during collisions.

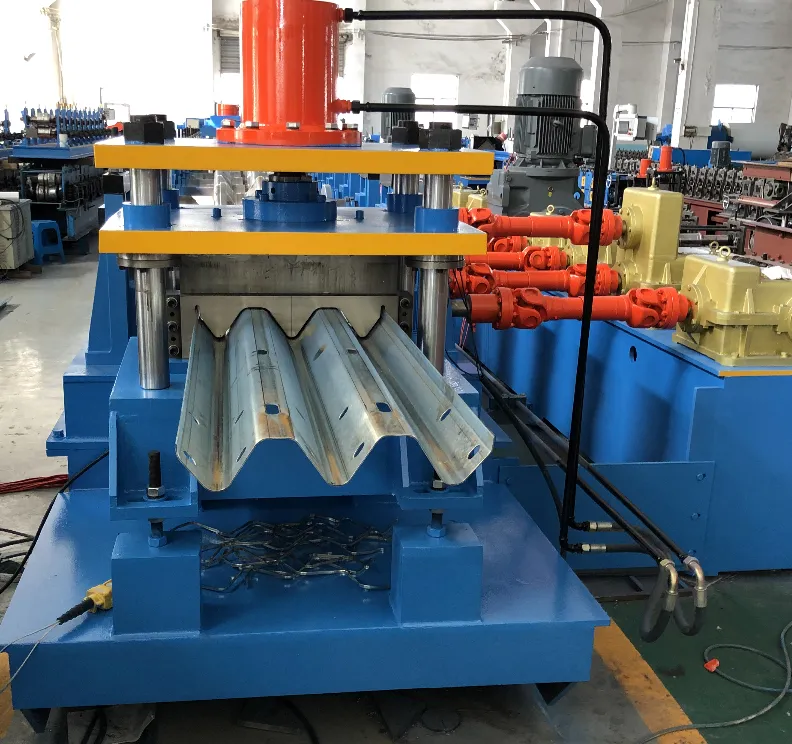

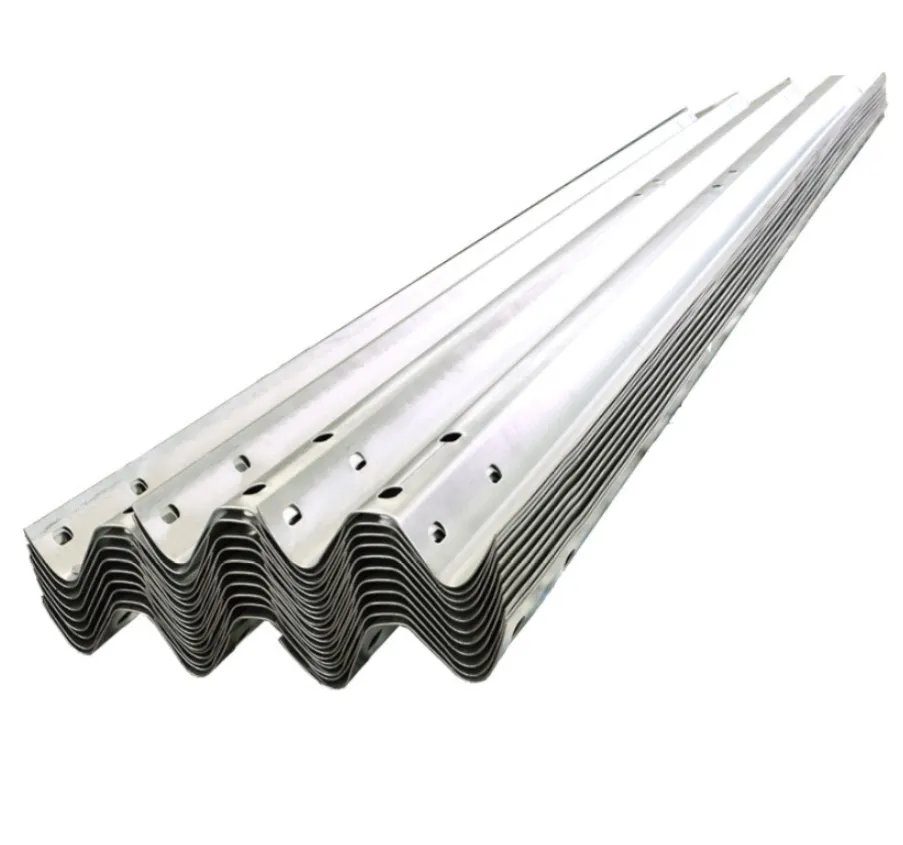

2. Thrie Beam Guardrail
Thrie beam guardrails have a stronger structure compared with standard W-beam barriers.
They are commonly used in areas requiring higher protection levels, such as:
* High-speed roads
* Heavy vehicle routes
* Bridge approaches
3. Customized Road Safety Profiles
According to different countries and engineering standards, customers may require special guardrail profiles.
A professional guardrail roll forming machine manufacturer can design customized machines according to:
* Profile drawing
* Steel thickness
* Material specification
* Production speed requirements
⸻
Production Process of Guardrail Roll Forming Machine

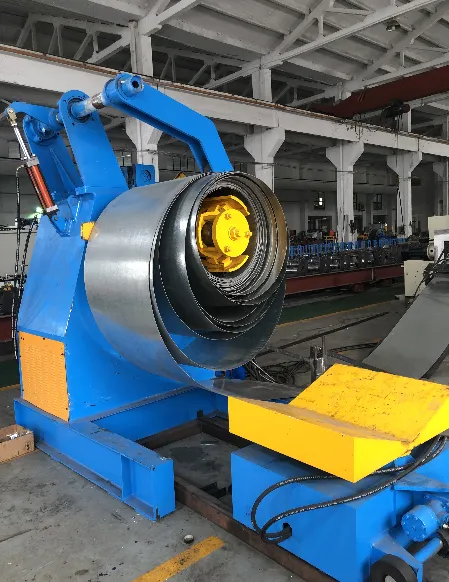

1. Coil Loading and Decoiling
The raw material is usually galvanized steel coil with high corrosion resistance.
Common material:
* Galvanized steel (GI)
* Pre-galvanized steel
* High-strength steel
The hydraulic decoiler automatically expands and feeds the coil into the production line.
⸻

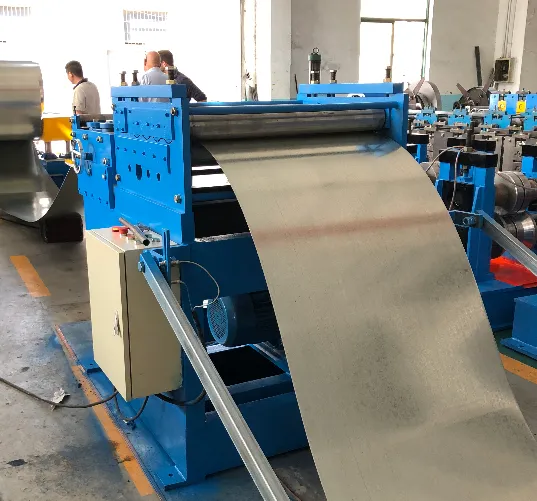

2. Leveling and Feeding
The leveling unit removes coil deformation and ensures the steel strip enters the forming section smoothly.
High-quality leveling improves:
* Profile accuracy
* Hole position accuracy
* Final product appearance
⸻

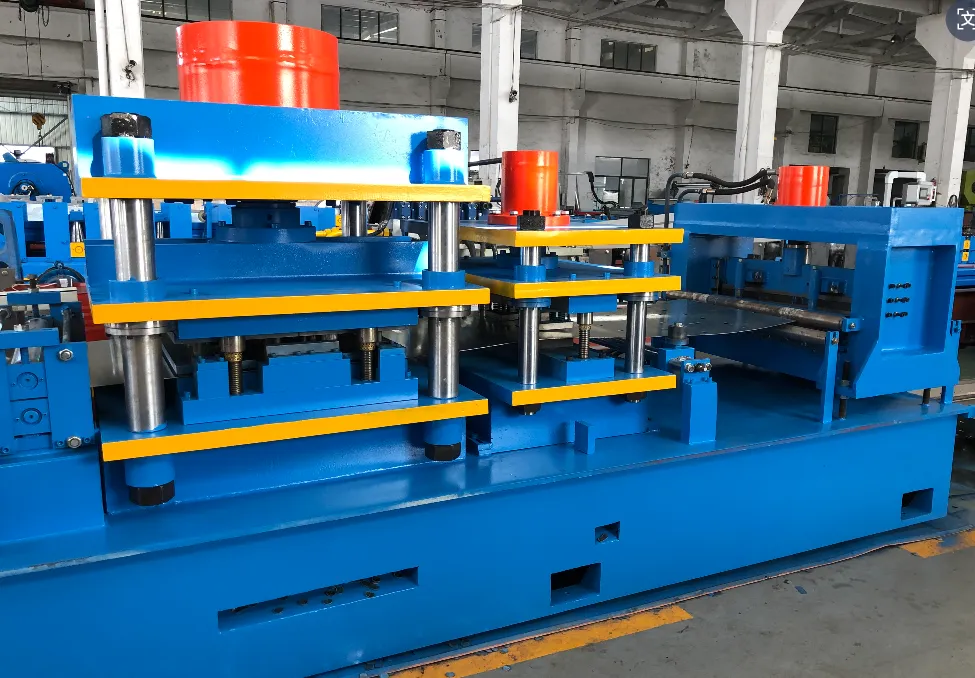

3. Punching System
Most highway guardrails require holes for installation.
The punching system can be designed according to customer requirements, including:
* Bolt holes
* Connection holes
* Customized hole patterns
A servo punching system can achieve higher accuracy and flexible hole positioning.
4. Roll Forming System
The roll forming section is the core part of the machine.
Multiple forming stations gradually bend the steel strip into the required guardrail shape
without damaging the surface coating.
Advantages of roll forming:
* Continuous production
* High precision
* Stable quality
* Less material waste
* Long service life
⸻

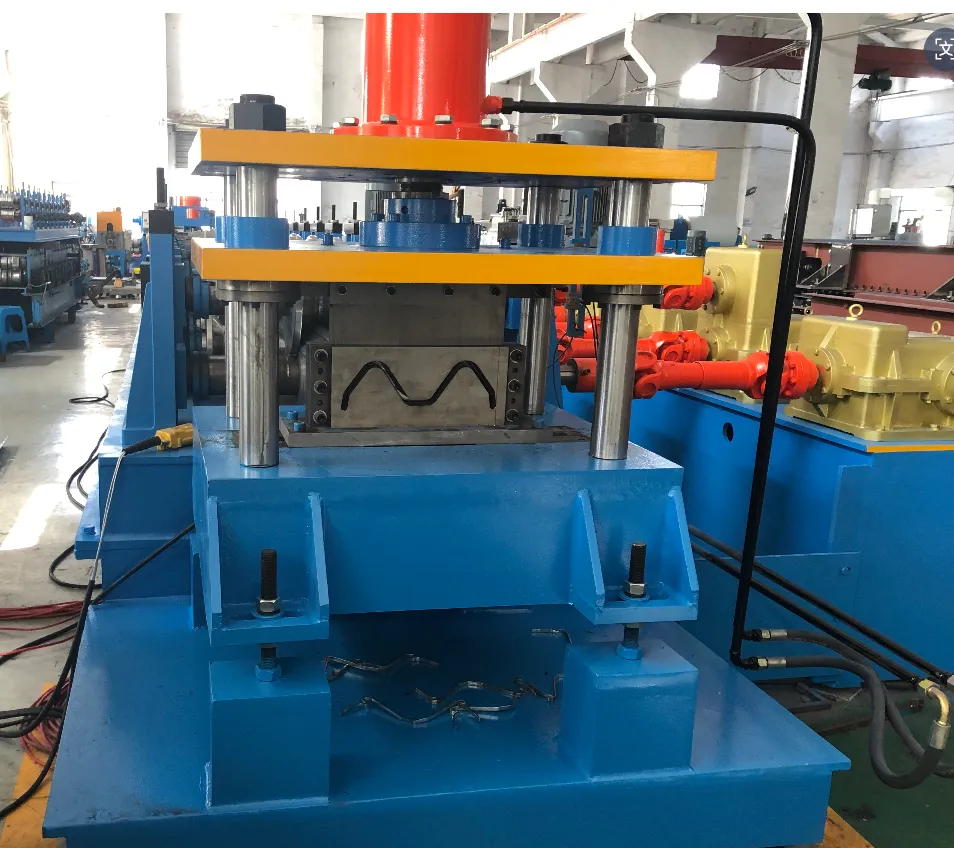

5. Hydraulic Cutting System
After forming, the guardrail profile is cut into required lengths.
The cutting system can be customized for:
* Fixed length cutting
* Flying cutting
* High-speed production requirements
⸻
Technical Features of Guardrail Roll Forming Machine
A professional highway guardrail production line usually includes:
Automatic Operation
The whole production line can be controlled by PLC system. Operators can easily set:
* Production length
* Production quantity
* Punching parameters
* Machine speed
High Production Speed
Depending on the profile design and punching requirements, the production speed can reach
approximately:
* 8–15 meters/minute for standard highway guardrails
Strong Machine Structure
Because guardrail materials are usually thick galvanized steel, the machine requires:
* Heavy-duty frame
* High-strength rollers
* Stable transmission system
This ensures long-term operation under industrial production conditions.
⸻
Common Specifications of Guardrail Roll Forming Machine
Typical production parameters:
Item Specification
Raw Material Galvanized steel coil
Material Thickness 2.5–4.0 mm (customized)
Coil Width According to profile design
Forming Speed 8–15 m/min
Control System PLC automatic control
Punching Hydraulic or servo punching
Cutting Hydraulic cutting
Operation Automatic
Specifications can be customized according to different standards and customer requirements.
⸻
Why Choose Roll Forming Technology for Guardrail Production?
Compared with traditional manufacturing methods, roll forming offers significant advantages:
Higher Efficiency
Continuous coil feeding allows large-volume production with fewer workers.
Better Product Quality
The multi-stage forming process ensures:
* Accurate dimensions
* Smooth surface
* Consistent profile shape
Lower Production Cost
Roll forming reduces:
* Material waste
* Labor cost
* Production time
Flexible Customization
Machines can be designed according to different guardrail standards, including:
* AASHTO standards
* European standards
* Australian standards
* Customized customer drawings
⸻
How to Choose the Right Guardrail Roll Forming Machine Manufacturer?
When investing in a guardrail production line, customers should consider:
1. Machine Experience
Choose a manufacturer with experience in highway guardrail projects and international export.
2. Customized Design Capability
Different countries have different guardrail dimensions. The supplier should be able to design machines according to drawings.
3. Production Stability
Important factors include:
* Machine structure
* Roller quality
* Electrical components
* After-sales service
4. Complete Production Solution
A reliable supplier should provide not only the roll forming machine but also:
* Decoiler
* Punching system
* Cutting system
* Stacking system
* Technical support
⸻
Conclusion
A guardrail roll forming machine is an essential investment for companies producing
highway safety barriers and road protection systems.
With advanced roll forming technology, manufacturers can achieve high productivity,
stable quality, and competitive production costs.
Shanghai Duwell provides customized highway guardrail roll forming machines for
customers worldwide, helping road safety equipment manufacturers build efficient and reliable
production lines.
If you are looking for a W beam guardrail machine, crash barrier roll forming machine,
or complete highway guardrail production line, please contact us for a customized solution.
