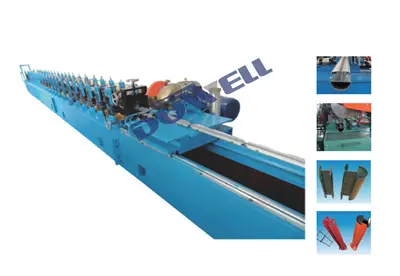

The Vineyard Post Roll Forming Machine is a specialized metal-forming equipment designed to produce high-quality, durable vineyard posts used in grape trellising systems. This machine efficiently manufactures galvanized steel or aluminum posts with consistent dimensions, ensuring strength and corrosion resistance for long-term use in vineyards.
Uncoiler: Loading the steel coil
Guiding and Leveler: Guiding the sheet into roll former
Profiling Roll Forming Machine: For precise profile forming.

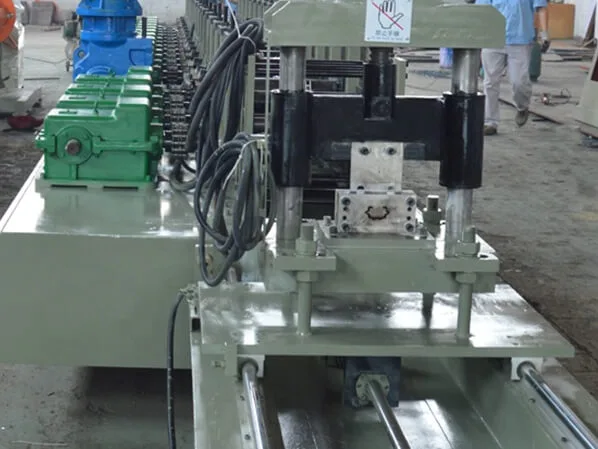

Hydraulic punching device: Punch the holes on the sheet
Cutting device: For precise cuts.
Our standard configuration produces:
T-Posts (50×50mm to 75×75mm)
Y-Posts (for double cordon systems)
Round Posts (Ø30-60mm)
Custom profiles available upon request
✔ Precision Engineering - Computer-designed roller dies ensure consistent post dimensions (±0.5mm tolerance)
✔ Dual-Function Design - Capable of producing both standard T-posts and custom profile posts
✔ Smart Automation - Integrated PLC with touchscreen interface for effortless operation and monitoring
✔ Heavy-Duty Construction - Hardened alloy steel rollers with lifespan exceeding 1 million cycles
Automatic Lubrication System - Ensures smooth operation and extends component life
Real-Time Monitoring - Digital display of production speed, count, and error alerts
Quick-Change System - Reduces profile changeover time to under 45 minutes
Anti-Vibration Design - Minimizes noise (≤75dB) for better working environment
Working process
5 ton decoiler —→ Guiding and leveling device—→Hydraulic punching device—→Roll-forming Machine —→Adjusting —→ saw cutting—→ Run out table
Machine parameters
Uncoiler: 3Tons decoiler
Forming station: 28 stations (according to customer’s post design)
Driving type: chain or Gear box transmission
Main motor power: 15KW
Shaft Dia: 80mm
Roller material: GCr15 with quenching and chrome plating on surface. Hardness: HRC58~60
Hydraulic system: 7.5kw
Electrical system: Delta control system
Cutting type: Flying saw cutting
Punching system: Hydraulic punching with servo motor
Cooling system: water cooling system
Material thickness: 1.0-1.5mm，Galvanized sheet
Forming speed: 15m/min
A steel vineyard post roll forming machine is an automatic cold
roll forming production line designed to manufacture galvanized
vineyard posts, grape stakes, and agricultural trellis posts from steel coils.
The machine continuously forms, punches, and cuts metal strips into
strong vineyard posts used for grape farming and agricultural fencing systems.

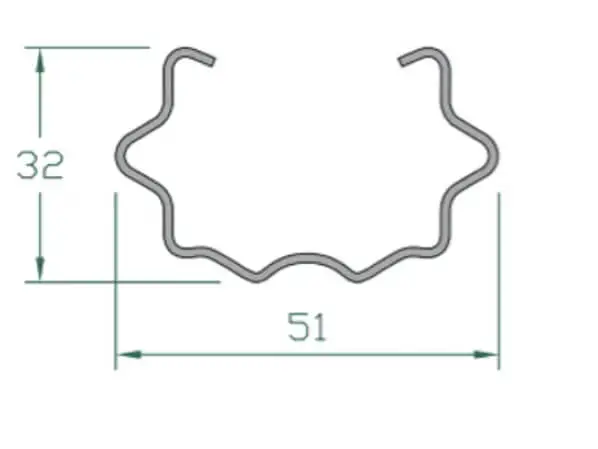

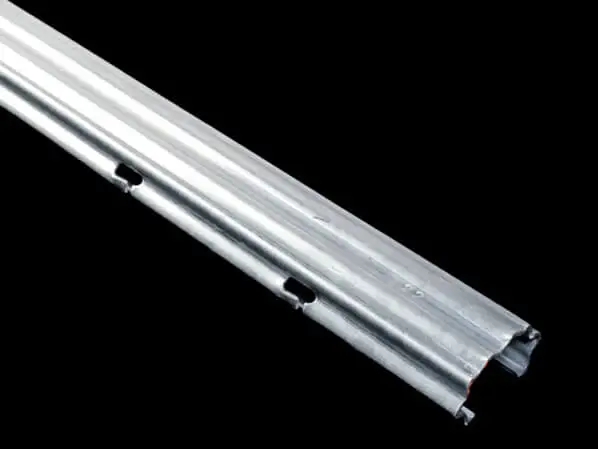

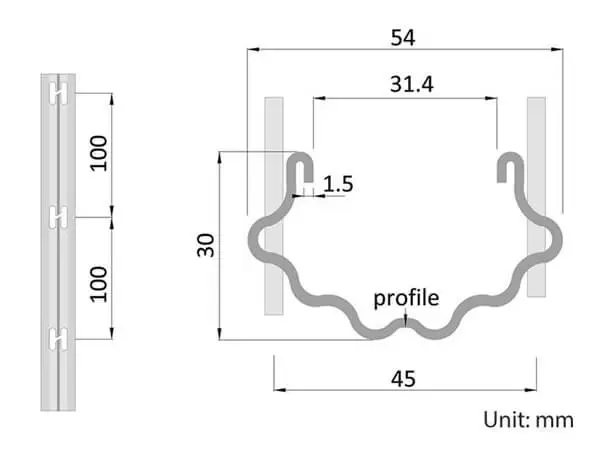

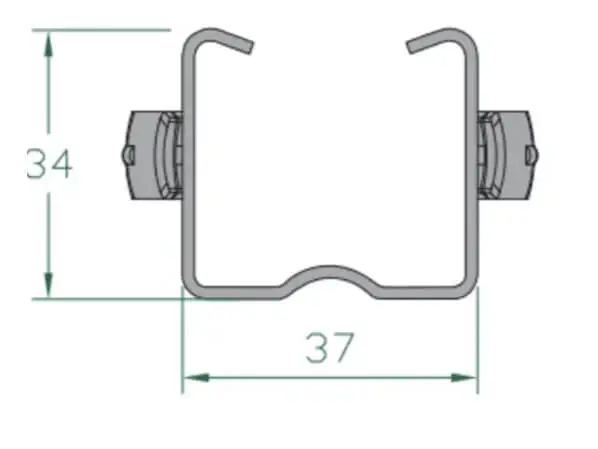

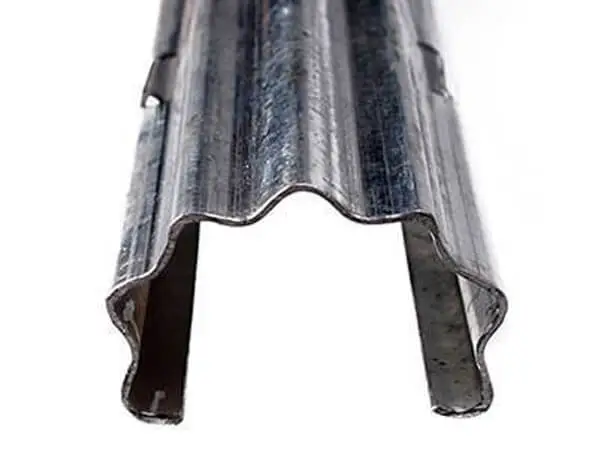

Our vineyard post roll forming machine can produce:
• C channel vineyard posts
• U channel vineyard stakes
• Z type agricultural posts

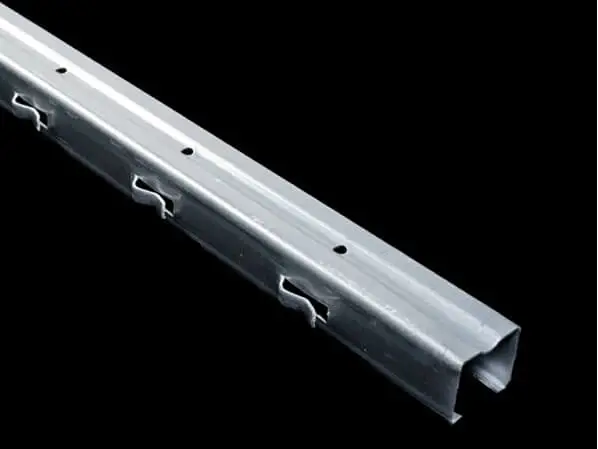

• Trellis posts with hook slots
• Perforated vineyard stakes
• Custom vineyard post profiles
We can customize roll tooling according to your drawing or sample.
Our steel vineyard post forming machine is suitable for:
• Galvanized steel coil (GI)
• Hot dip galvanized steel
• Pre-coated steel
• Mild steel
Thickness range:
1.2mm – 3.0mm (customizable)
Heavy-duty machine structure ensures stable forming of agricultural grade steel.
Yes. The production line includes:
• Servo feeding system
• Hydraulic punching unit
• Adjustable punching dies
It can punch:
• Hook slots
• Wire holding holes
• Mounting holes
• Continuous perforations
High precision punching ensures easy wire installation in vineyard systems.
Standard production speed:
10–25 meters per minute
Speed depends on:
• Hole density
• Material thickness
• Profile complexity
High speed configuration is available for large-scale agricultural projects.
A complete vineyard post production line includes:
• Hydraulic decoiler
• Leveling system
• Servo feeder
• Hydraulic punching system
• Roll forming machine
• Hydraulic cutting system
• PLC control system
• Output table or stacker
Fully automatic operation reduces labor cost and increases productivity.
Yes, it can set the hole distance on controller.
As a professional roll forming machine manufacturer, we provide:
✔ Heavy-duty welded frame
✔ High precision rollers (Cr12MoV / GCr15)
✔ Long machine lifespan
✔ Stable punching accuracy
✔ Low maintenance cost
✔ CE certification available
✔ Exported worldwide
Our machines are designed for continuous agricultural post production.
Standard production time:
90 days after deposit
Delivery time depends on profile customization and punching system design.
