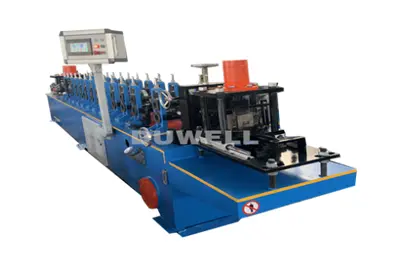

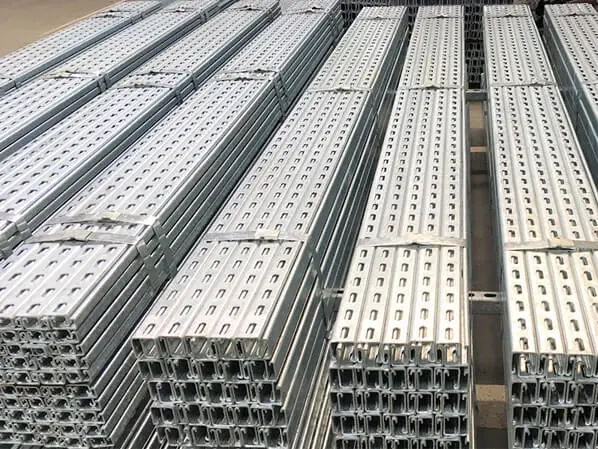

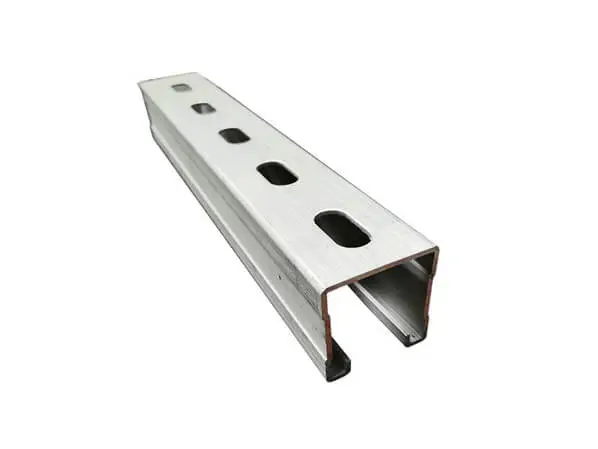

The Solar Strut Roll Forming Machine is a specialized piece of equipment designed to produce high-quality solar strut channels (also known as solar mounting rails or solar strut profiles) used in solar panel mounting systems. These struts provide structural support for solar panels, ensuring stability and durability in various environmental conditions.
Our machine is engineered for precision, efficiency, and long-term reliability, making it ideal for manufacturers looking to produce solar struts in large quantities with consistent quality.
The Solar Strut Roll Forming Machine is a specialized piece of equipment designed to produce high-quality solar strut channels (also known as solar mounting rails or solar strut profiles) used in solar panel mounting systems. These struts provide structural support for solar panels, ensuring stability and durability in various environmental conditions.
Our machine is engineered for precision, efficiency, and long-term reliability, making it ideal for manufacturers looking to produce solar struts in large quantities with consistent quality.
✔ High-Speed Production – Capable of forming solar strut profiles at speeds of up to 15-25 meters per minute (adjustable based on material thickness).
✔ Multi-Station Roll Forming – Equipped with 12-20 forming stands to ensure precise shaping and dimensional accuracy.
✔ Material Compatibility – Works with galvanized steel, aluminum, or stainless steel coils (common thickness: 1.0mm–3.0mm).
✔ Automatic Cutting System – Hydraulic or servo cutting for clean, burr-free cuts with high precision (±0.5mm tolerance).
✔ PLC Control System – User-friendly interface for easy operation, length adjustment, and production monitoring.
✔ Punching & Notching Options – Can integrate punching units for holes or slots required for solar mounting systems.
✔ Robust Construction – Heavy-duty frame and high-quality rollers for extended service life.

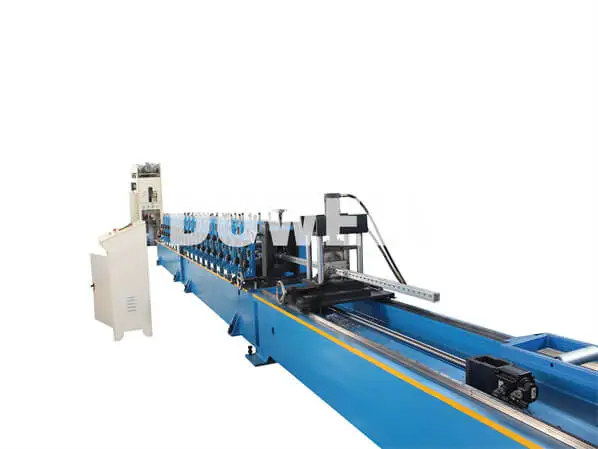

Uncoiler: Loading the steel coil
Leveling : Leveling the sheet flat before entering pressing machine

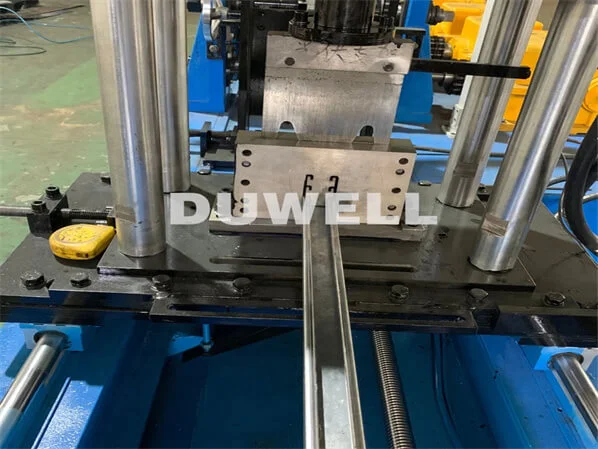

Servo feeder and pressing machine: Punch the holes on the sheet before forming.

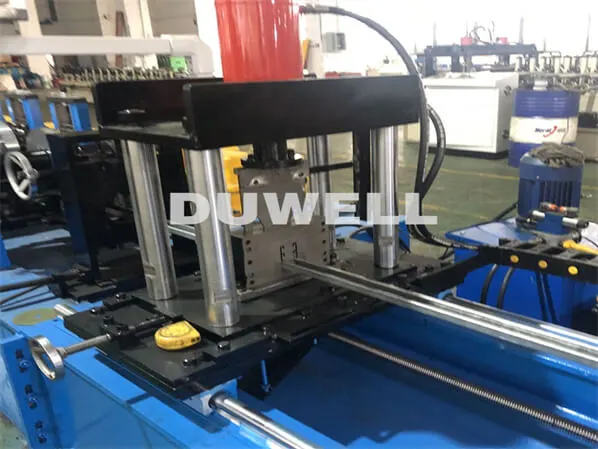

Hydraulic cutting: Cut off the sheet before forming.

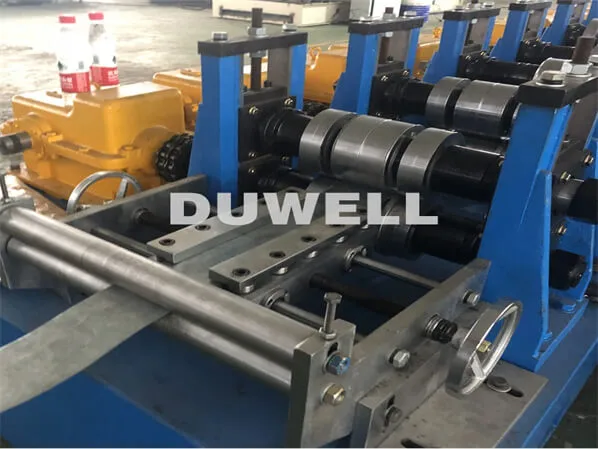

Profiling Roll Forming Machine: For precise profile forming.
Adjusting device: For final straight adjusting.
Stacking Table: Stacking the finished products.

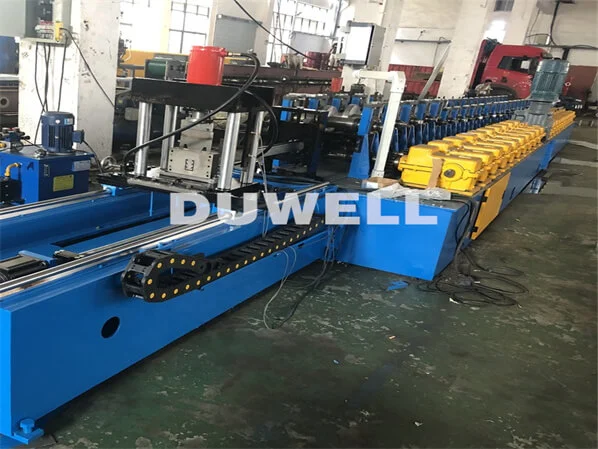

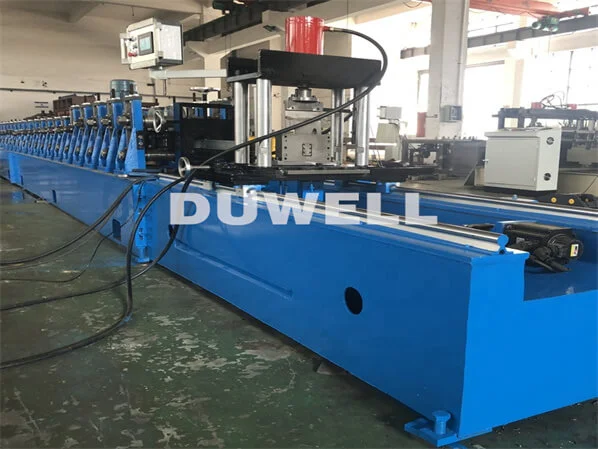

Working process
5 ton decoiler —→ leveler—→servo feeder—→Pressing machine—→Guiding and hydraulic cutting —→ Roll-forming Machine —→Adjusting —→Run out table
Machine parameters
Suitable plate of the rolling: steel , with thickness 2.0~3.0mm,
Working speed: 8~12 meters/min
Forming stations: 18~24 stations
Roller material: GCr15 with quenching and chrome plating on surface, hardness: HRC58-62
Material of principal axis: #45 advanced steel
Main machine power: 18.5 KW
Control system: The whole machine is controlled by PLC system
The machine is designed for materials ranging from 1.0mm to 3.0mm, with optimal performance at 1.5mm–2.5mm for most solar strut applications.
Depending on material thickness and profile complexity, the machine can produce 15–25 meters per minute.

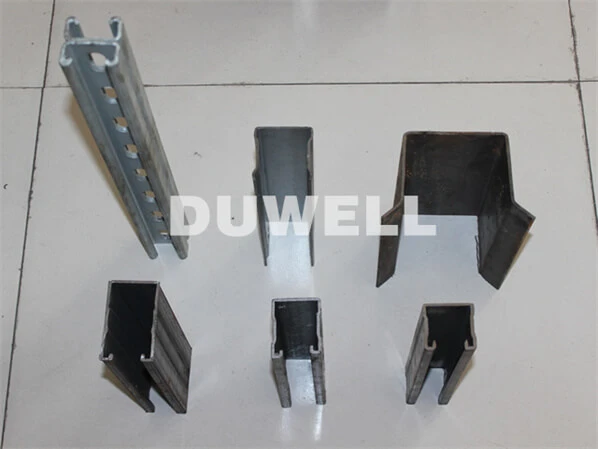

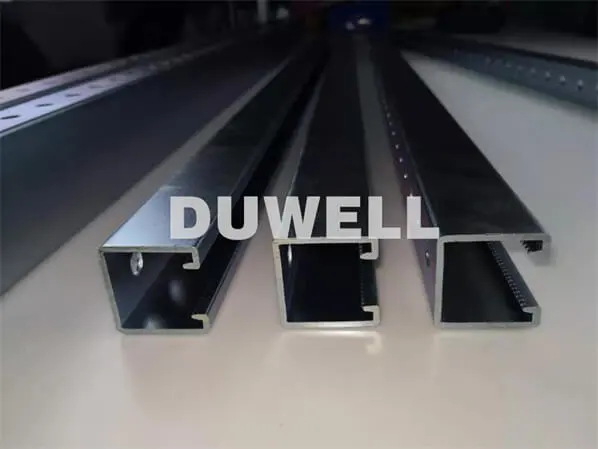

Yes, the machine can be adjusted to produce various strut dimensions (e.g., 41mm x 41mm, 41mm x 21,41 x 62mm etc.) by changing the rollers and adjusting the PLC settings.
Yes, we offer an optional punching & notching unit to create holes or slots as required for solar mounting systems.
We provide hydraulic cutting (for cost efficiency) or servo cutting (for higher precision and smoother cuts).
Yes, we offer custom roll forming solutions based on specific strut designs provided by the customer.
