DUWELL storage upright rack roll forming machine is one complete automatic production line, to make the punching hole, profile forming, cutting and stacking in one line with automatic working. For different sizes profile, it can adjust the different sizes automatically in the machine. With auto stacking system, it only need two people to work the whole line.

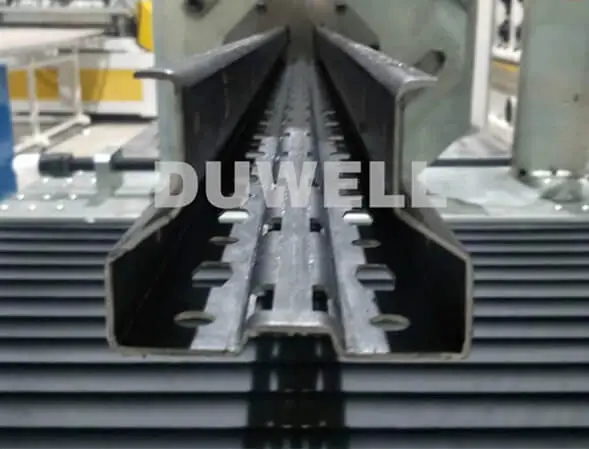

The Warehouse Storage Upright Roll Forming Machine is a high-precision, automated machine designed for the efficient production of upright frames used in warehouse storage systems, pallet racking, and shelving structures. This upright forming machine utilizes advanced roll forming technology to shape metal coils into strong, uniform upright profiles with precise dimensions, ensuring durability and load-bearing capacity.

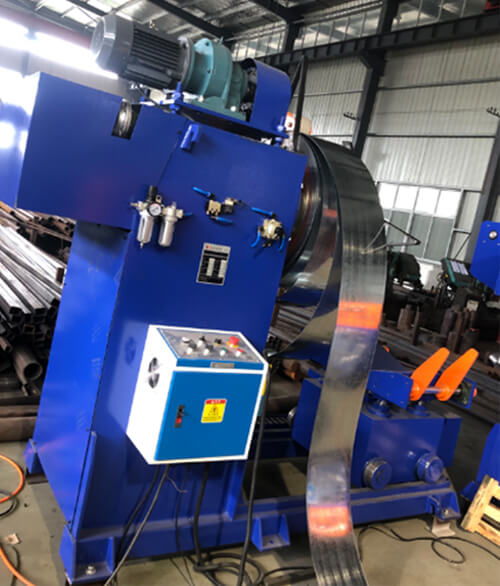

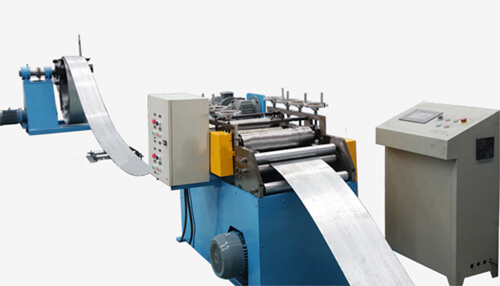

Uncoiler: Loading the steel coil
Leveler: leveling the sheet
Servo feeder: feed the sheet into pressing machine

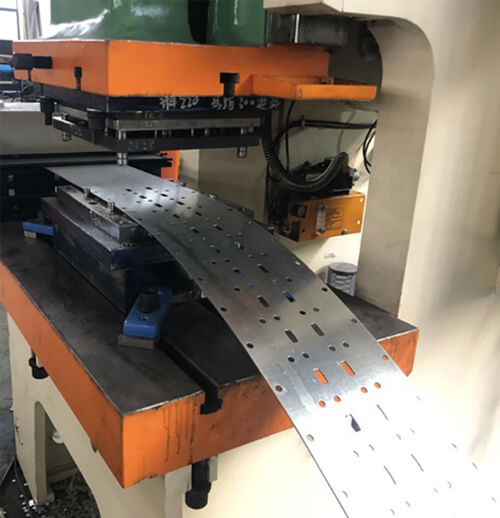

Pressing machine: Press the holes on the upright before forming.

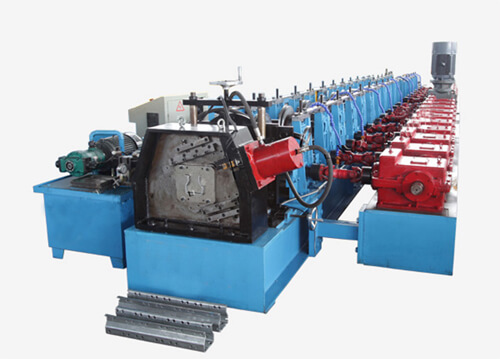

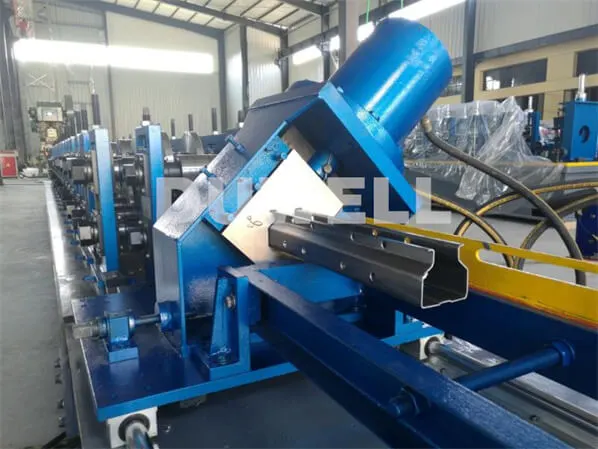

Profiling Roll Forming Machine: For precise profile forming.

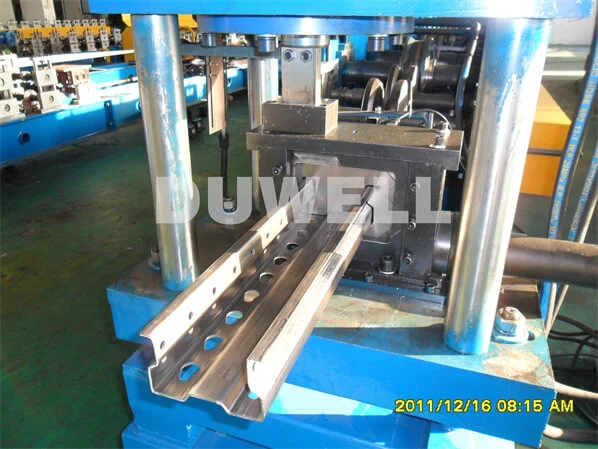

Adjusting device: For final slats straight adjusting.

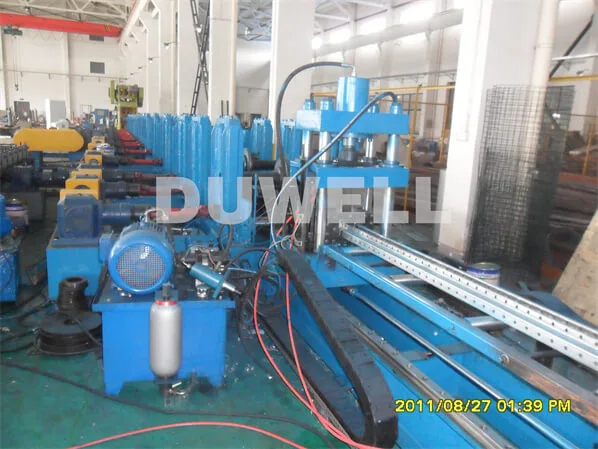

Servo following hydraulic cutting device: For precise cuts.

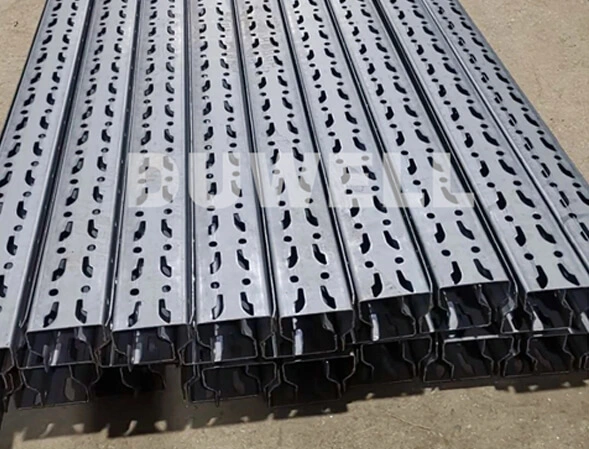

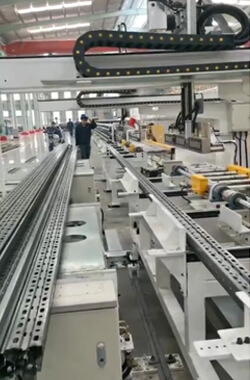

Stacking Table: Stacking the finished upright.

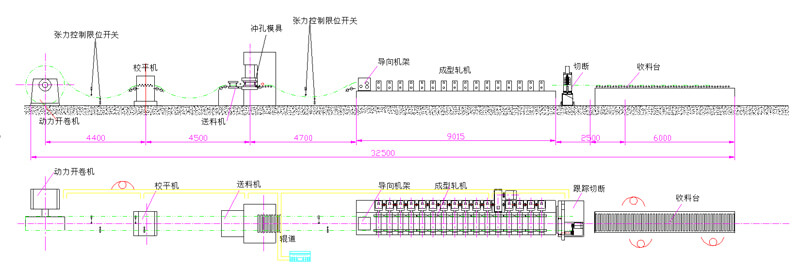

Working process
5 ton decoiler —→ leveling device—→ Feeding device (servo motor) —→Pressing machine—→Roll-forming Machine —→ Hydraulic cutting—→ Run out table
Machine parameters
5 ton decoiler
Manual decoiler: hydraulic expanding.
Capacity: Max. 5 tons
Expanding range: ф480-520 mm ( can be made according to customer’s requirement)
Leveling device
Leveling: to make the material flat before entering the punching device
Seven rolls: four upper, five lower
Pressing machine with servo feeder

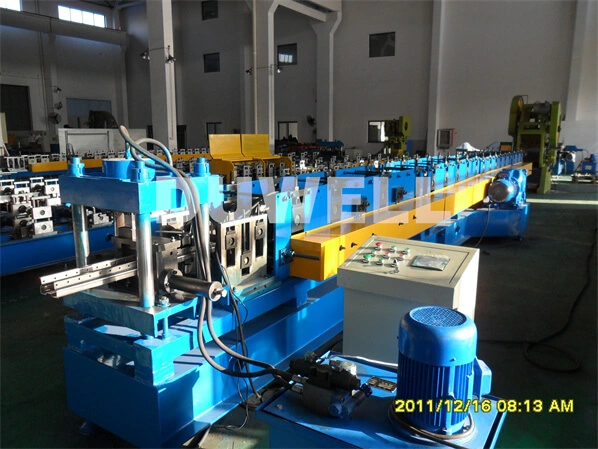

Roll forming machine
Suitable plate of the rolling: galvanized steel or cold/hot roll steel, with thickness 2.0~2.5mm,
Working speed: Approx. 6~8meter/min (with cutting and punching time)
Forming stations: 16 stations
Roller material: Cr12Mov (Cr12) with quenching and chrome plating on surface, hardness: HRC58-62
Material of principal axis: #45 advanced steel, (Dia: 65mm)
Main machine power: 22 KW
Driven: gear box transmission
Cut-off system: Hydraulic cutting, power:7.5KW, with three cutting knives.
Control system: The whole machine is controlled by PLC system, brand: Delta

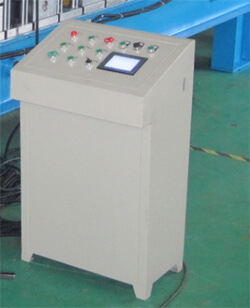

PLC control cabinet
Stacking system
A storage upright roll forming machine is an automatic cold roll forming production line
designed to manufacture pallet rack uprights, warehouse racking posts, and shelving
support columns from steel coils.
This machine continuously forms steel strips into high-strength rack uprights with
punching holes for adjustable beam connections.
Yes, if the customer keeps the upright height same, it can adjust the different width in one machine automatically. For example, if keep the upright height same, the width can change from 80~120mm automatically in one machine.
Our heavy-duty upright roll forming machine can process:
• Galvanized steel (GI)
• Cold rolled steel
• High strength steel
Thickness range:
1.5mm – 3.0mm (customizable up to 4.0mm for heavy duty racks)
The machine frame is reinforced for stable forming of thick structural steel.
Standard production speed:
• 10–20 meters per minute (with punching)
• Higher speeds available with servo feeding system
The final speed depends on hole pattern complexity and material thickness.
Yes. Our warehouse rack upright roll forming line includes:
• Servo feeding system
• Hydraulic punching unit
• Multi-hole punching dies
• Adjustable hole spacing

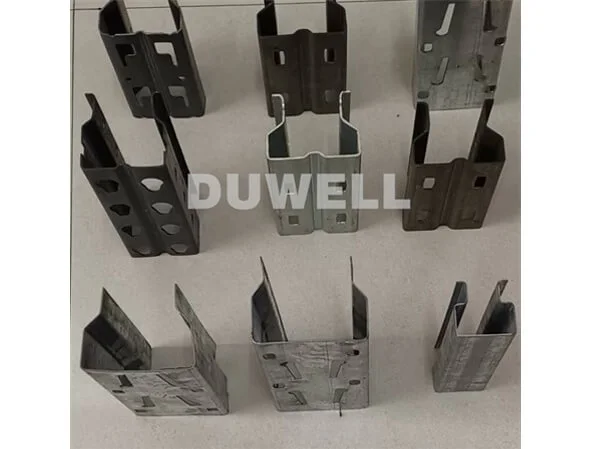

Hole types include:
• Butterfly holes
• Teardrop holes
• Diamond holes
• Slot holes
High precision punching ensures perfect beam connection and assembly.
A complete upright roll forming production line includes:
• Hydraulic decoiler
• Leveling system
• Servo feeder
• Hydraulic punching system
• Roll forming machine
• Hydraulic cutting system
• PLC control cabinet
• Output table or automatic stacker
Fully automatic operation reduces labor and increases productivity.
Yes. Our machine features:
• PLC automatic control system
• Touch screen interface
• Automatic length cutting
• Automatic hole positioning
• Production parameter memory
One operator can control the entire racking upright production line.
Yes, we offer installation guidance, operator training, and 24/7 technical support to ensure smooth operation and troubleshooting.
Standard delivery time:
90 days including production and final testing working.
Delivery depends on profile complexity and customization requirements.
✔ Professional roll forming technology
✔ Custom profile design capability
✔ Competitive factory price
✔ Strong engineering team
✔ Reliable after-sales support
✔ Global export experience
We help racking manufacturers build efficient and profitable production lines.
