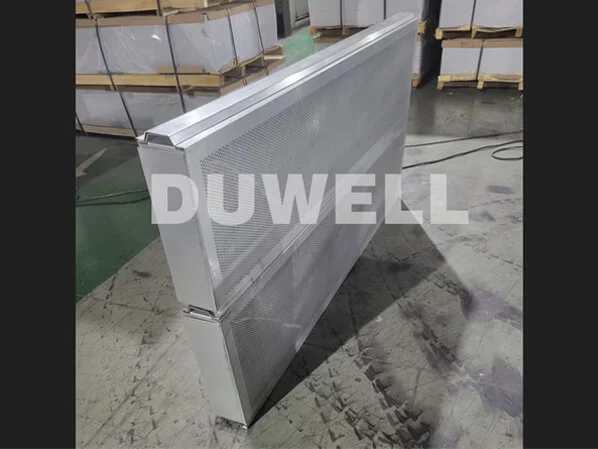

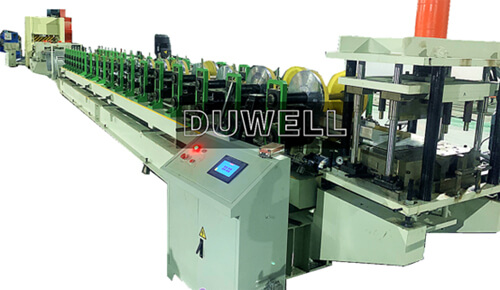

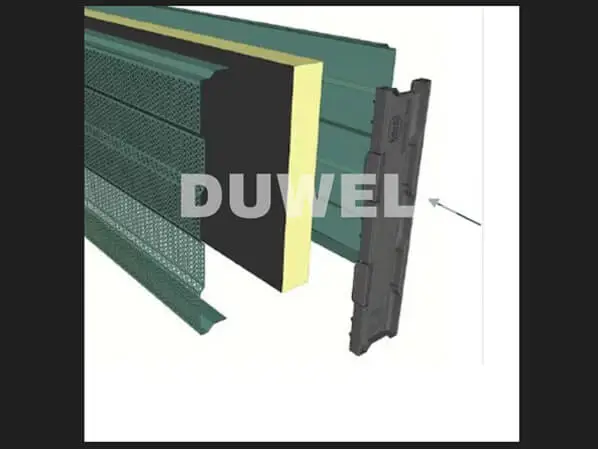

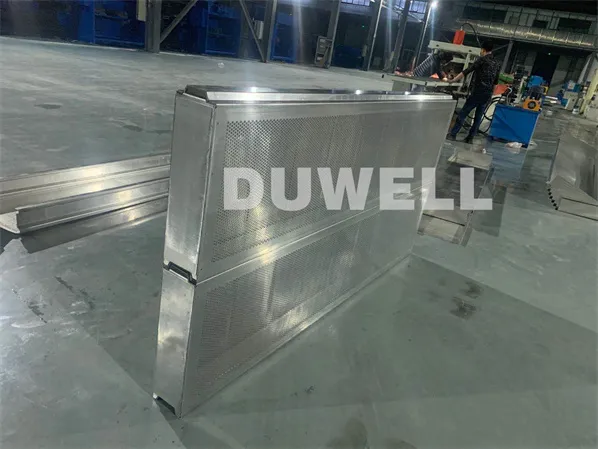

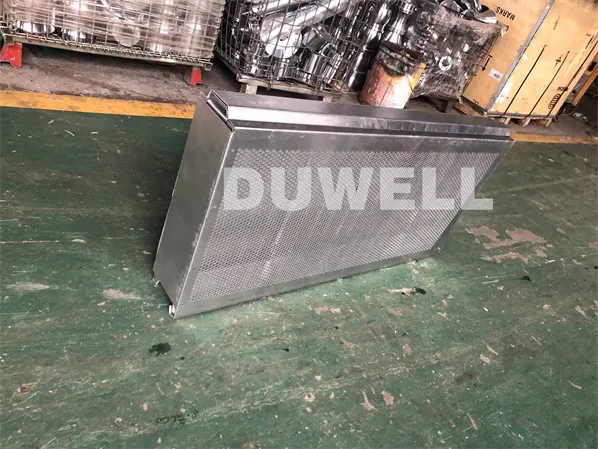

DUWELL sound barrier Panel production line is a complete automatic production line to punch the micro holes, roll forming and cutting in one line. Also can close two panels together automatically according to customer’s requirement.

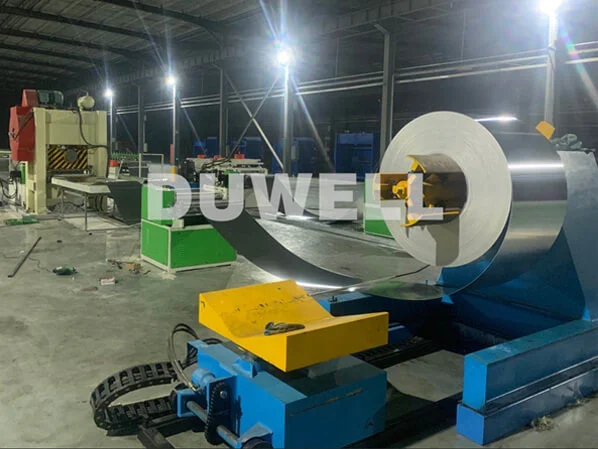

Uncoiler: Loading the steel coil

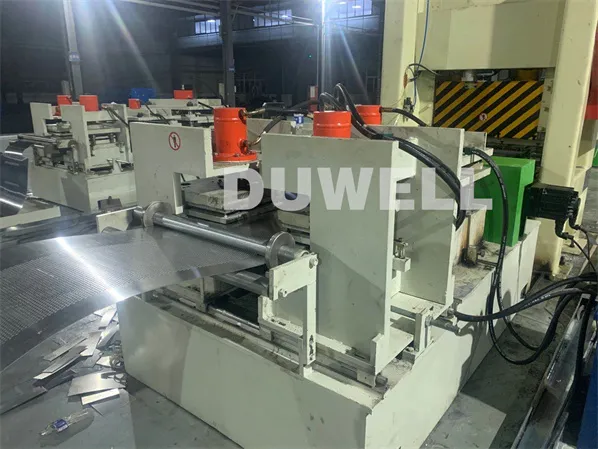

Leveling : Leveling the sheet flat before entering pressing machine

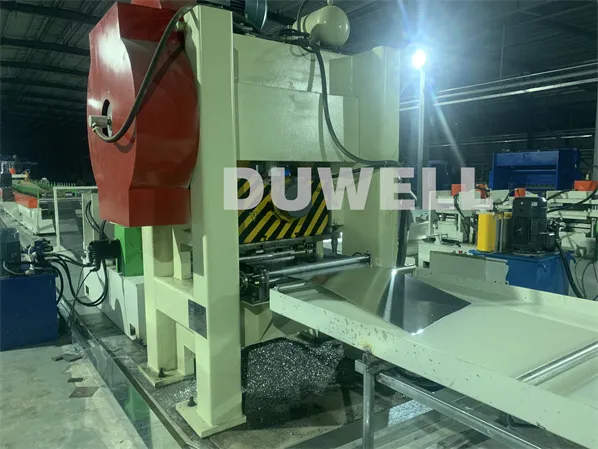

Servo feeder and pressing machine: Punch the holes on the sheet before forming.

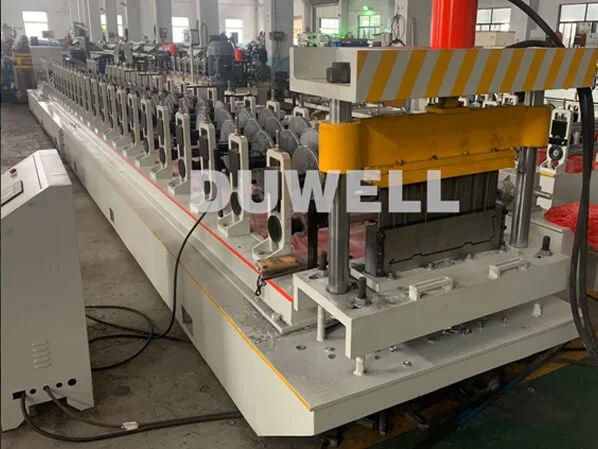

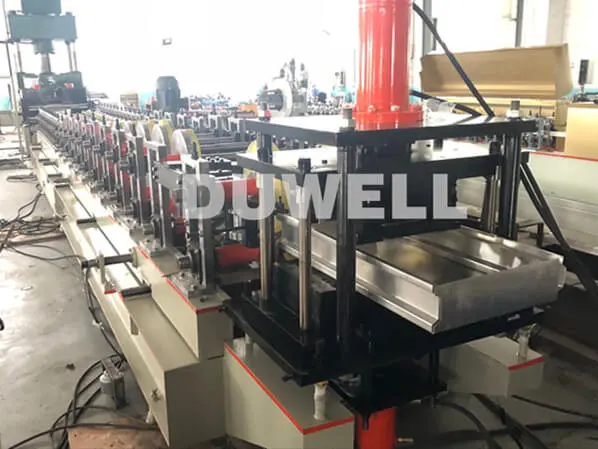

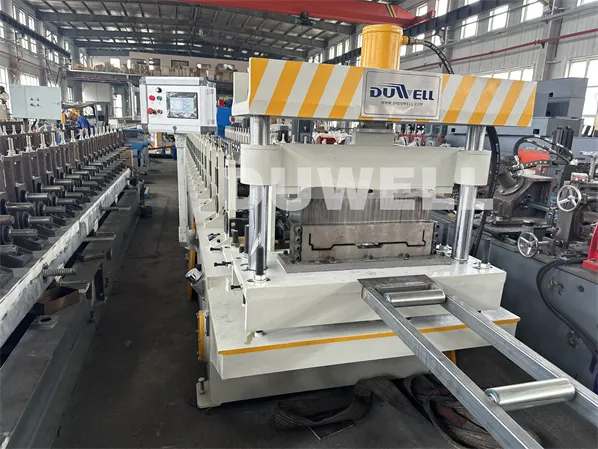

Profiling Roll Forming Machine: For precise profile forming.
Hydraulic cutting device: Cut off the rails according to setting length.
Adjusting device: For final straight adjusting.

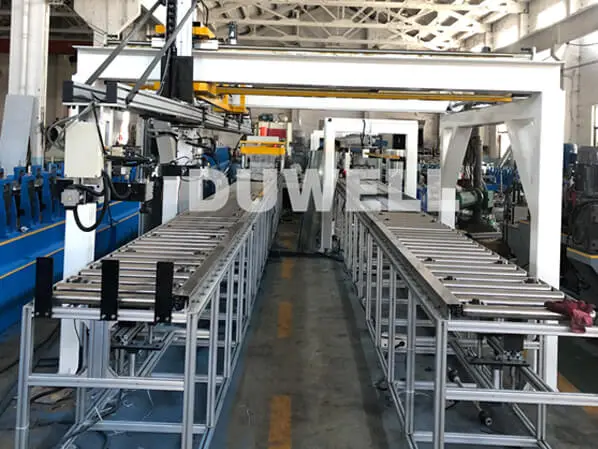

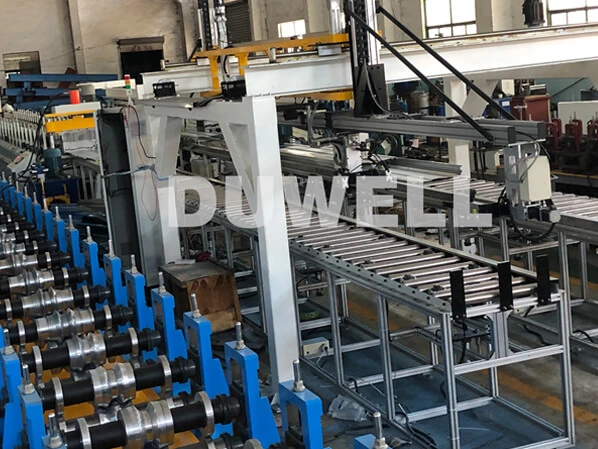

Stacking Table: Stacking the finished rails.
Our Sound-Absorbing Panel (Acoustic Panel) Roll Forming Machine is a state-of-the-art production line designed to manufacture high-performance acoustic panels with precision and efficiency. These panels are widely used in studios, offices, theaters, and industrial spaces for noise reduction and sound optimization.
Key Features:
✔ High-Speed Production – Capable of forming 5–30 meters per minute (adjustable)
✔ Multi-Stage Roll Forming – Shapes metal coils into precise acoustic panel frames
✔ Material Compatibility – Works with galvanized steel, aluminum, or stainless steel
✔ Customizable Profiles – Supports various panel designs (perforated, slotted, or solid-back)
✔ Automated Cutting/Punching – Integrated PLC control for length accuracy (±0.5mm)
✔ Low Maintenance – Durable rollers and minimal energy consumption
Working process

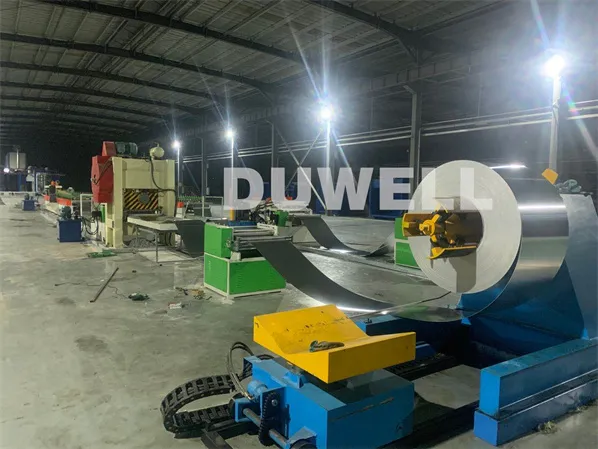

5 ton decoiler —→ leveler—→servo feeder—→Pressing machine—→Guiding and hydraulic cutting —→ Roll-forming Machine —→Adjusting —→Run out table
Machine parameters
Suitable plate of the rolling: Steel or Aluminum, with customized thickness
Working speed: 8~12 meters/min

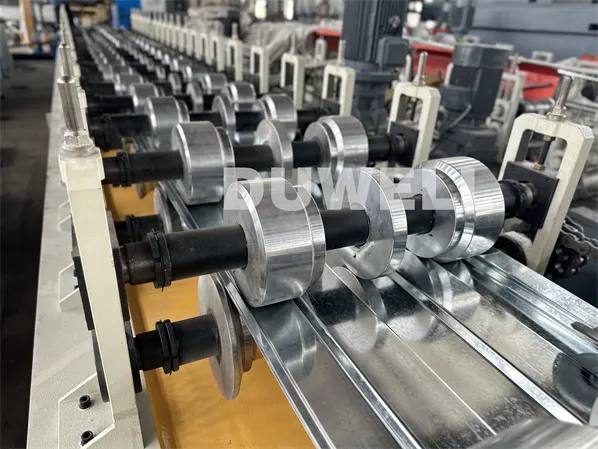

Forming stations: 24 stations
Roller material: Cr12Mov with quenching, hardness: HRC58-62
Material of principal axis: #45 advanced steel
Control system: The whole machine is controlled by PLC system
An acoustic panel roll forming machine is an automated production line designed to manufacture perforated acoustic panels or sound insulation panels from metal coils. The machine forms, perforates, and cuts panels continuously with high precision and efficiency.
As a professional acoustic panel roll forming machine manufacturer, we provide complete solutions including decoiling, leveling, perforating, roll forming, cutting, and stacking.
Our machine can process:
• Galvanized steel (GI)
• Pre-painted galvanized steel (PPGI)
• Aluminum coil
• Stainless steel
Material thickness range: typically 0.4mm – 1.2mm (customizable).
The machine is designed for stable, high-precision forming of thin metal sheets used in acoustic insulation systems.

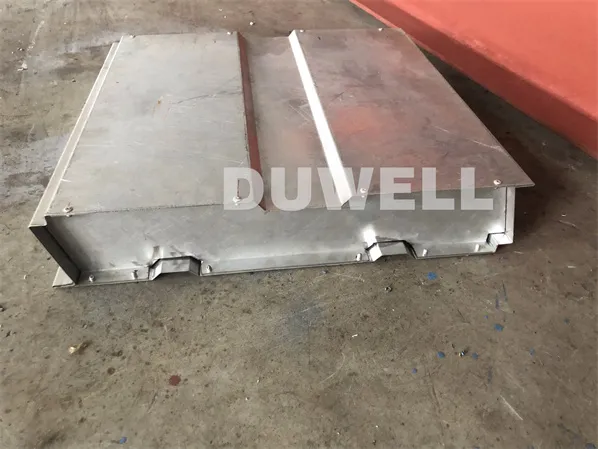

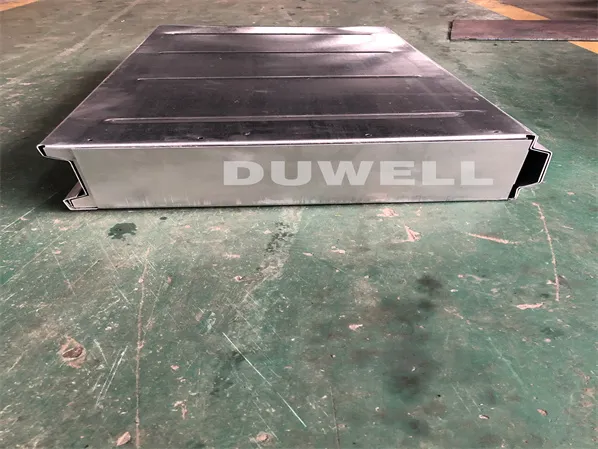

Our acoustic ceiling panel forming machine and soundproof panel production line can manufacture:

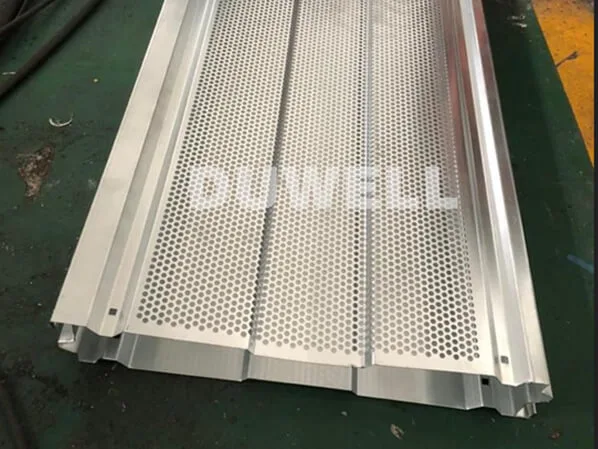

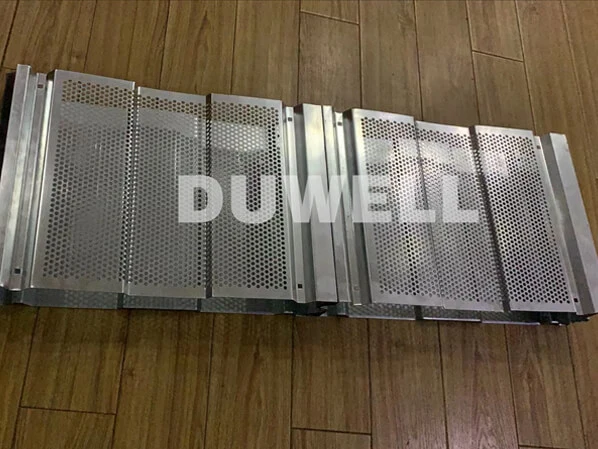

• Perforated acoustic ceiling panels
• Sound absorption wall panels

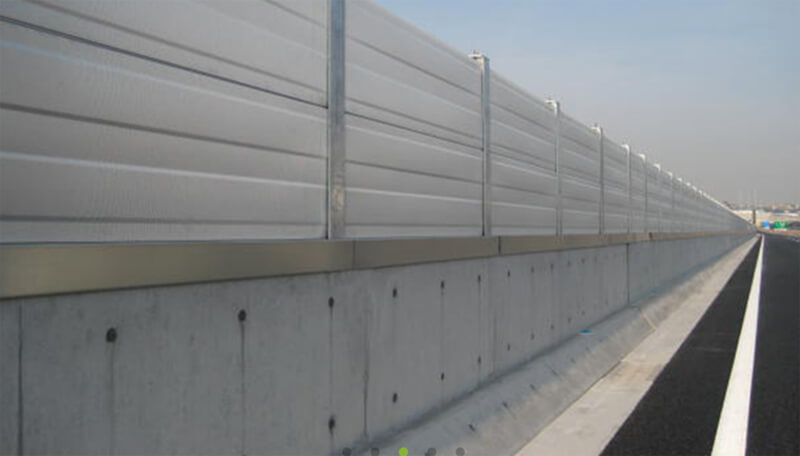

• Noise barrier panels
• Micro-perforated decorative panels
• Slotted acoustic panels
• Metal baffle ceiling panels
Profile design is fully customizable according to your drawing.
The production speed depends on perforation density and panel profile.
Normally:
• Standard speed: 10–20 meters per minute
• High-speed customized line available
Our PLC control system allows speed adjustment and precise length control.
Yes. Our perforated acoustic panel production line can include:
• Rotary punching system
• Hydraulic punching system
• High-speed servo punching
• Customized hole patterns (round, square, slotted, micro-perforated)
We provide complete integrated punching + roll forming solutions.
Our acoustic panel roll forming machine is equipped with:
• PLC automatic control system
• Touch screen interface
• Servo motor for precision cutting
• Automatic length setting and counting
The system ensures stable performance and easy operation.
Yes, we provide full customization services including:
• Panel profile design
• Perforation pattern
• Machine speed configuration
• Decoiler capacity
• Stacker and packaging system
We offer complete turnkey solutions.
Power supply can be customized according to your country standard:
• 380V / 50Hz / 3 Phase
• 220V / 60Hz / 3 Phase
• Or other required voltage
Yes. We provide:
• Online technical support
• On-site installation (if required)
• Operator training
• Detailed operation manual
Our engineers ensure your machine runs smoothly.
Our machines are widely used in:
• Commercial buildings
• Airports and railway stations
• Shopping malls
• Factories and workshops
•Auditorium and conference halls
We offer:
• 12–24 months warranty
• Lifetime technical support
• Spare parts supply
Please provide:
• Panel drawing or sample
• Material thickness and type
• Perforation requirement
We will send you a detailed quotation and technical proposal within 24 hours.
