The shelf panel roll forming machine is specially designed for efficient production of shelving panels used in warehouse storage racks, pallet racks, and industrial shelving systems. It supports high-precision and stable automatic production to meet different load-bearing and structural requirements.
DUWELL company can also supply a complete automated production line, including shelf panel roll forming machine, reinforcement roll forming machine, automatic transfer system, and welding unit. All machines can be integrated into one continuous line to achieve punching, forming, reinforcement loading, and welding in a single production process.
Warehouse storage racks
Industrial shelving systems

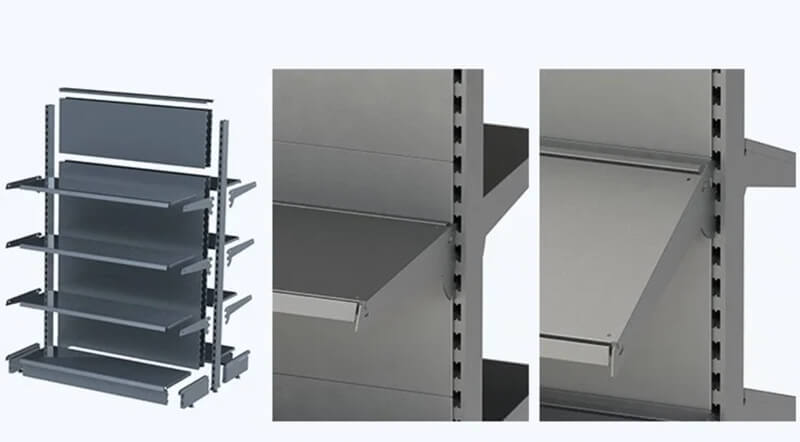

Supermarket display shelves
Logistics and distribution centers

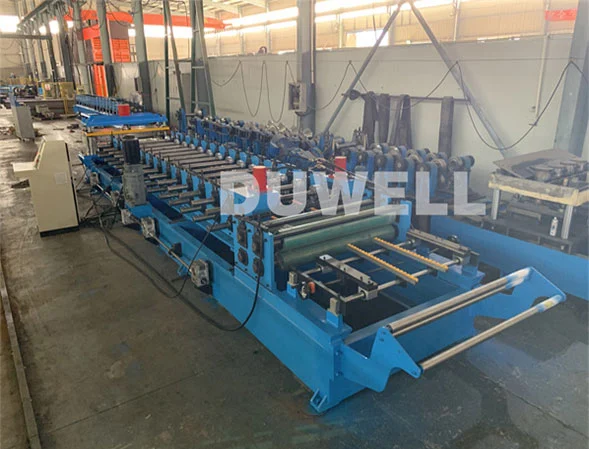

The Warehouse Shelf Panel Roll Forming Machine is a high-precision, automated production line designed to manufacture durable and high-quality storage rack panels. Shelf panel roll forming machine efficiently processes metal coils (such as steel or aluminum) into customized shelf panels with consistent dimensions, strength, and surface finish.
High efficiency production: Continuous roll forming, punching, notching, and cutting in one line
Labor saving: One operator can control the complete line from decoiler to run-out table
High integration: Punching, notching, roll forming, reinforcement loading, and welding can be combined in one automatic line
Width & length adjustable: Panel width and length can be easily set through PLC control system
Stable quality: Precise forming ensures uniform panel dimensions and load-bearing performance

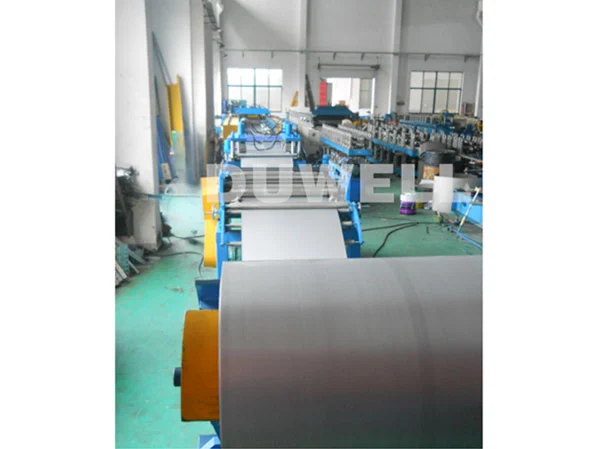

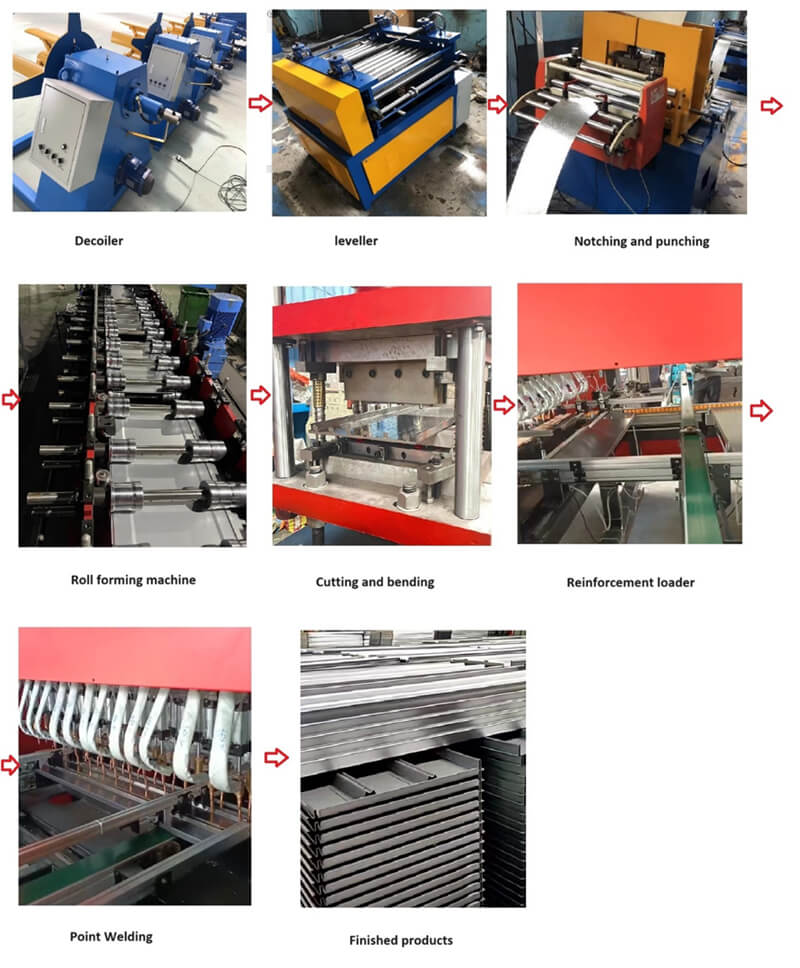

Uncoiler: Loading the steel or aluminum coil
Leveler: Leveling the sheet
Notching and punching device

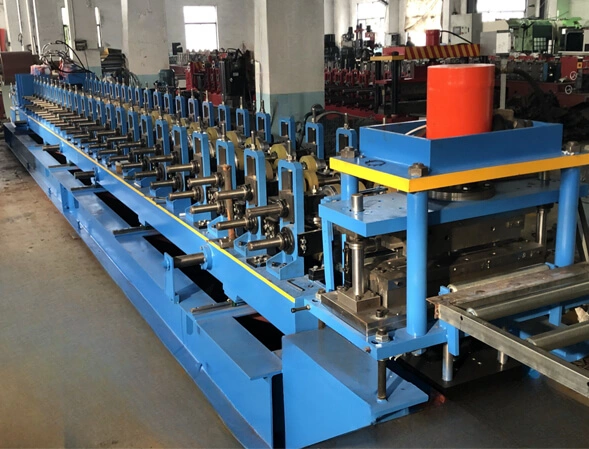

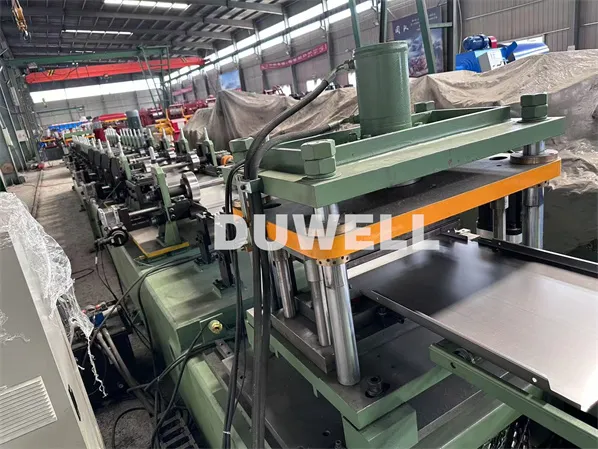

Profiling Roll Forming Machine: For precise profile forming.
Adjusting device: For final slats straight adjusting.

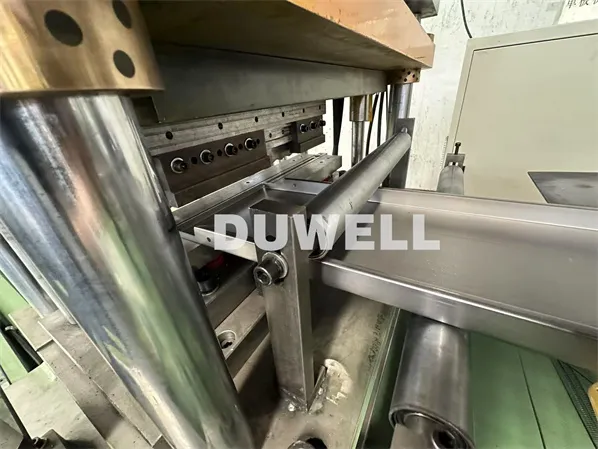

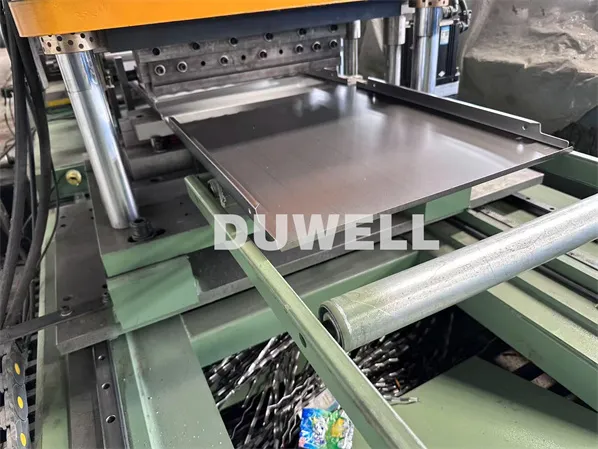

Cutting and bending device: For precise cuts and bending
Reinforcement roll forming machine
Transfer belt: transfer shelf panel and reinforcement
Reinforcement loader: Loading the reinforcement on the shelf panel
Point welding unit: Welding reinforcement on the shelf panel
Each shelf panel roll forming machine is engineered for stable coordination between forming and welding units, ensuring smooth and continuous production.
Our shelf panel roll forming machine adopts PLC control for easy operation and fast parameter adjustment. Panel width, length, and production speed can be set directly on the controller to adapt to different shelving designs.

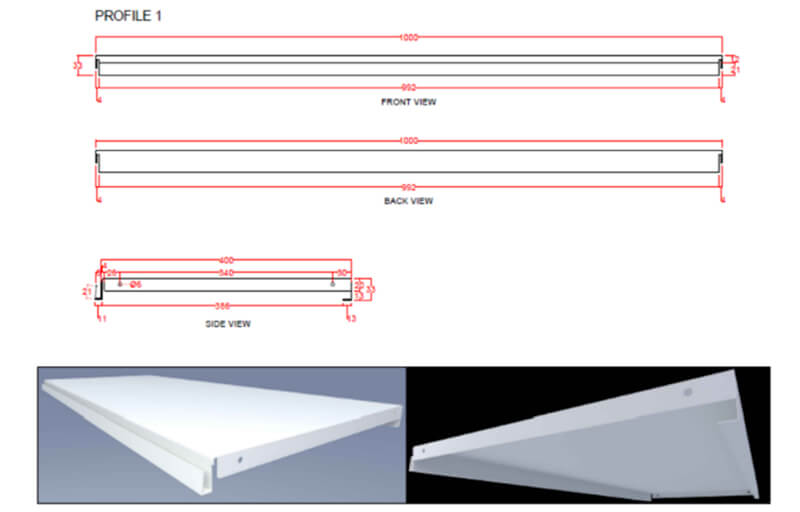

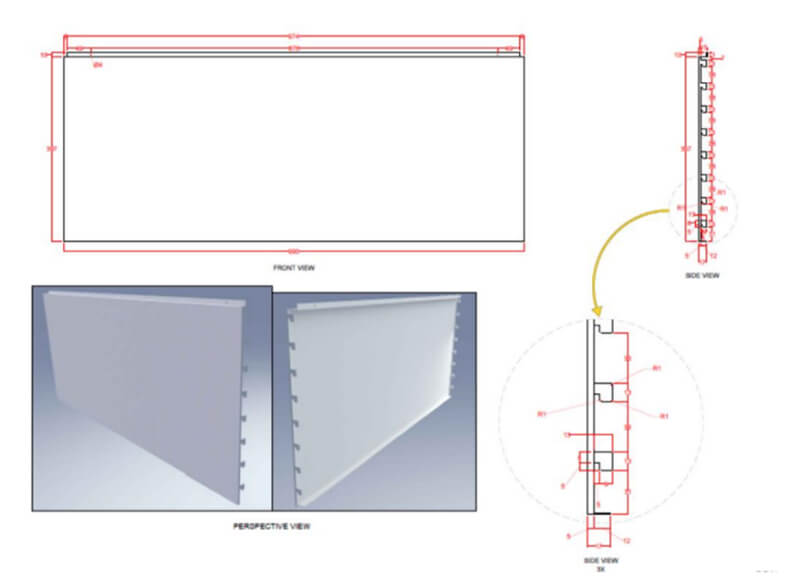

Reference profile drawing
Description of the machine:
Yes, shelf panel roll forming machine can adjust the different width automatically. The customer just need set the width and length on the controller.
The machine can handle various metal coils, including cold-rolled steel, galvanized steel, stainless steel, and aluminum, with typical thicknesses ranging from 0.5mm to 3.0mm.
Depending on the panel design and material, the machine can produce 8-25 meters per minute, ensuring high efficiency for large-scale orders.
We offer hydraulic cutting (for cost efficiency) or servo cutting (for higher precision and smoother cuts). The choice depends on your production needs.
Yes, shelf panel roll forming machine can adjust the different width automatically. The customer just need set the width and length on the controller.
Absolutely! The PLC control system allows for simple operation, and the machine is designed for low maintenance with easily accessible components.
Yes, we can integrate perforation or embossing units into the production line for added functionality and aesthetics.
Yes, we offer on-site installation, commissioning, and operator training to ensure smooth production from day one.
90 days including production and final testing working.
Yes, we provide 24/7 technical support, spare parts supply, and remote troubleshooting to minimize downtime.
