DUWELL company is specially in roller shutter door forming machines, including the whole range of rolling shutter door machine, such as octagon pipe roll forming machine, guiding rail roll forming machine, shutter box roll forming machine etc.

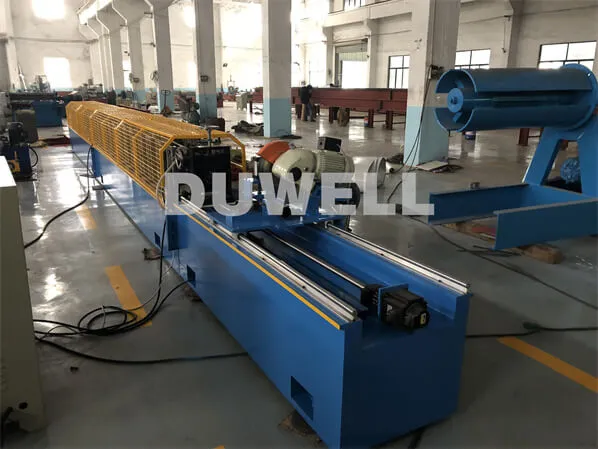

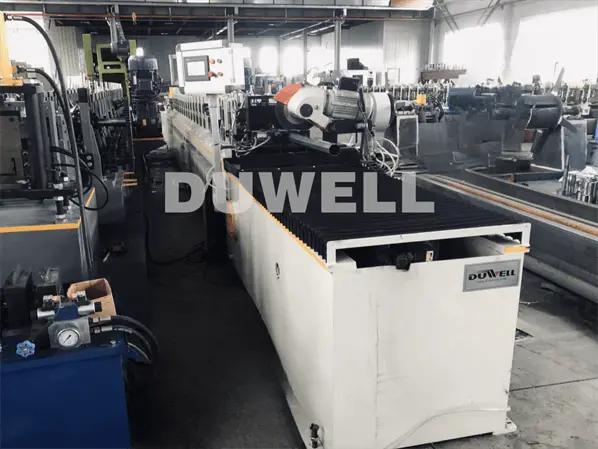

Octagon pipe machine includes the complete production line for octagon pipes:
decoiler—punching hole device---Roll forming machine---Adjusting device---servo following saw cutting---out table. Completely automatical production line.

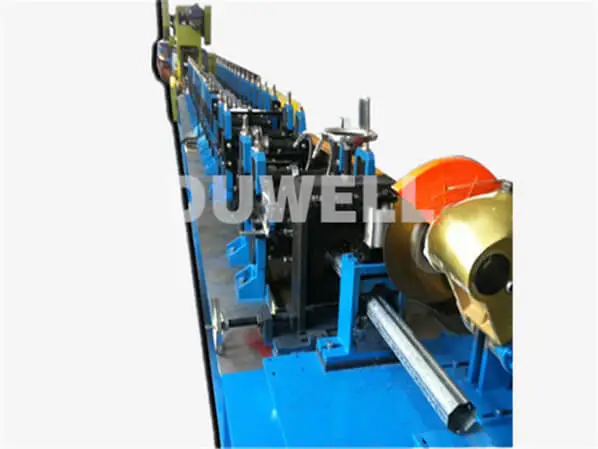

The Octagon Pipe Roll Forming Machine is a specialized piece of equipment designed for manufacturing octagonal-shaped pipes used in roller shutter doors, security grills, and industrial applications. This machine ensures high precision, efficiency, and durability in producing octagon pipes with consistent dimensions and smooth finishes.
Uncoiler: Loading the steel or aluminum coil
Pressing machine or hydraulic punching device: To punch the holes on octagon pipe
Profiling Roll Forming Machine: For precise profile forming.
Adjusting device: For final slats straight adjusting.

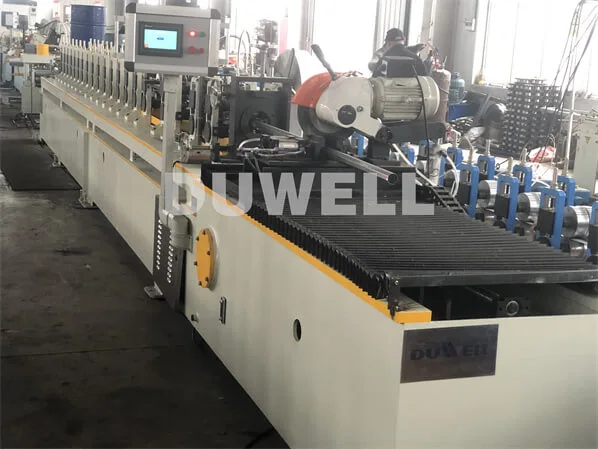

Servo following saw cutting: For precise cuts.
Out Table: Stacking the finished slats.
Main parameters:
Suitable material: galvanized steel
Forming speed: 6~15 meters/min
Forming steps: 21 stations
Material thickness: customized
Roller material: GCr15 quenched and chrome plating on surface. Hardness: HRC58~62
Shaft material: 45# Steel with quenched.
Transmission: Chain transmission
Motor power: 7.5KW
Cutting system: Following saw cutting, cutting after forming
The whole machine is controlled by PLC.
Working schedule:
Decoiler--------hole pressing machine---------roll former---------following saw cutting------out table-----PLC control system

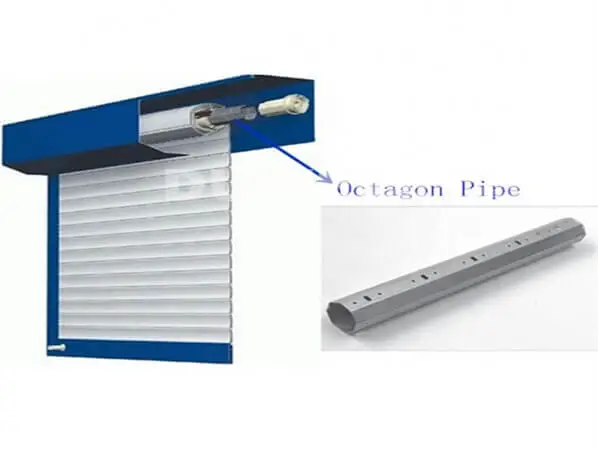

A shutter door octagon pipe roll forming machine is an automatic production line
used to manufacture octagonal tubes (octagon pipes) for rolling shutter doors
from galvanized steel or cold-rolled steel coils.The machine continuously forms flat steel strip into high-precision octagonal pipes

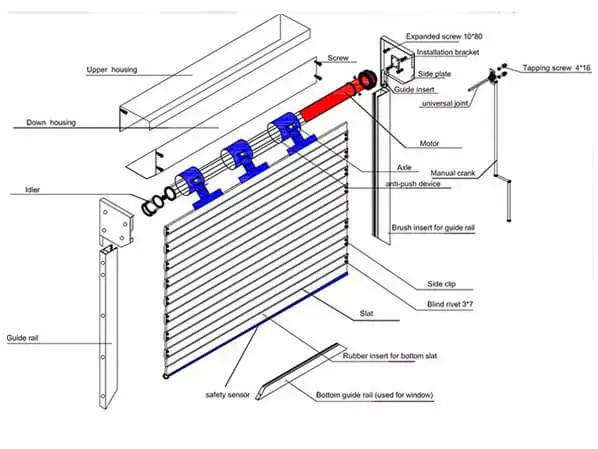

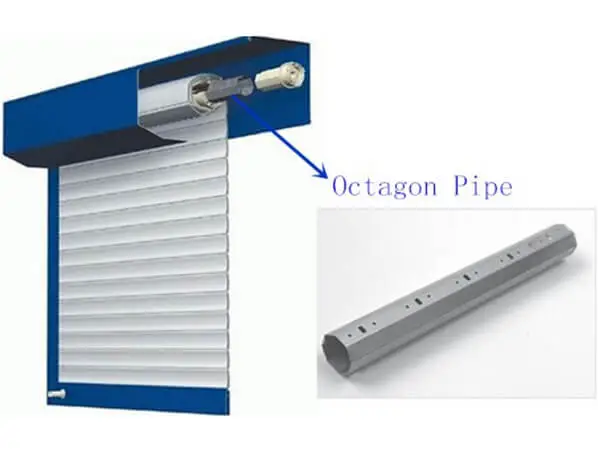

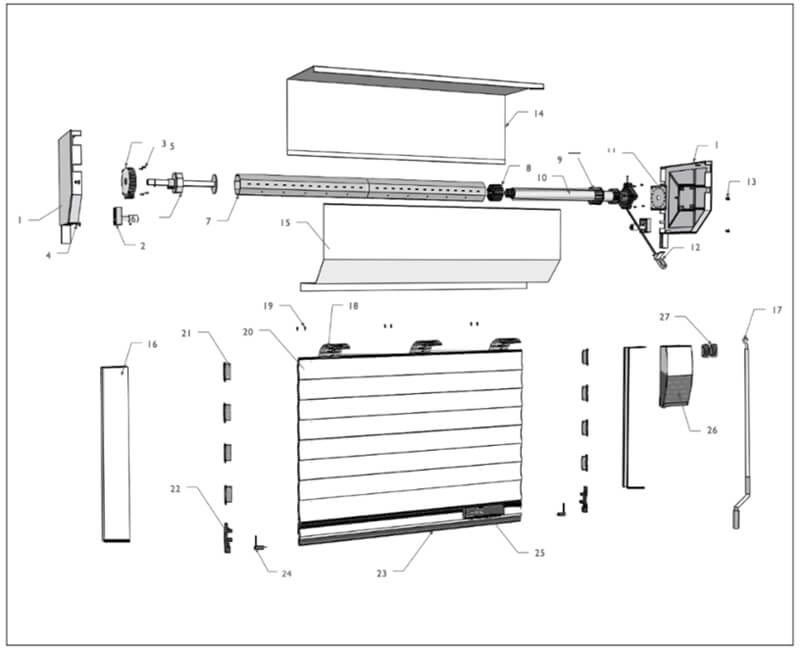

used as roller shutter shafts for residential, commercial, and industrial shutter doors.
Yes. Usually it has three sizes for octagon pipe: 40mm/60mm/70mm.
It can change cassette(quick change cosntruction) in one machine to change different sizes in one machine. It is easy and fast for customers to change cassette in one line.
Standard production speed:
• 10–15 meters per minute
• Higher speed configuration available
Speed depends on tube diameter and material thickness.
Our machine ensures stable forming even at high speed.

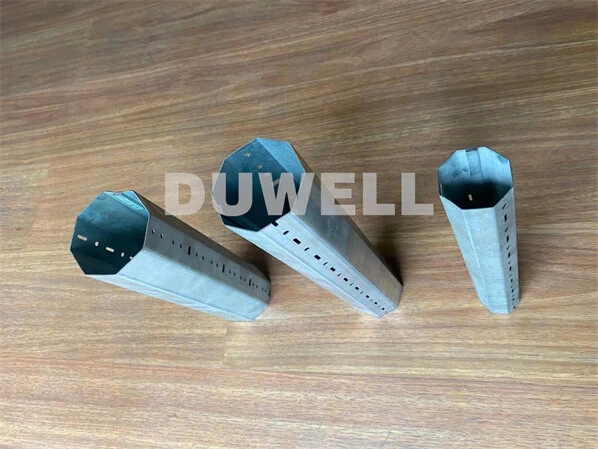

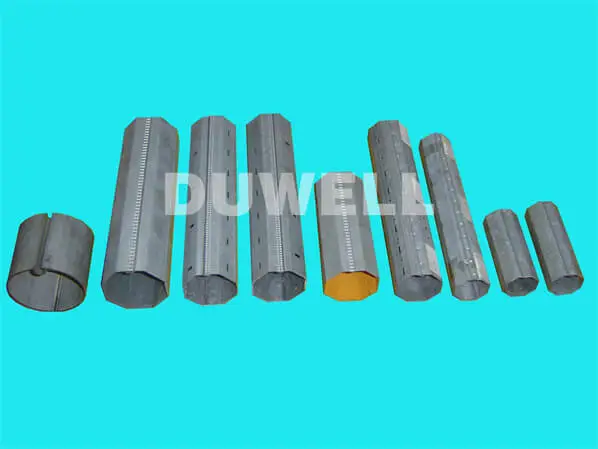

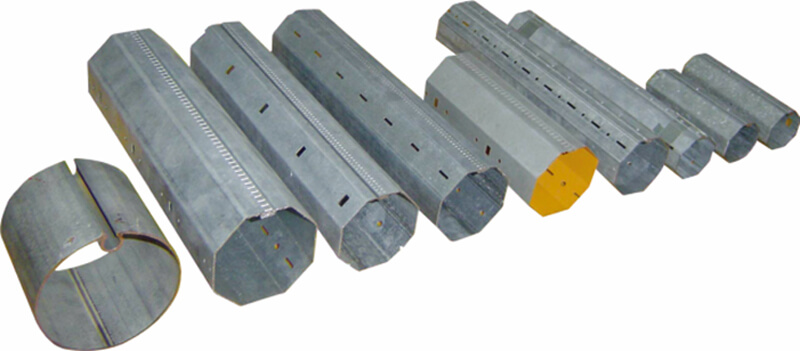

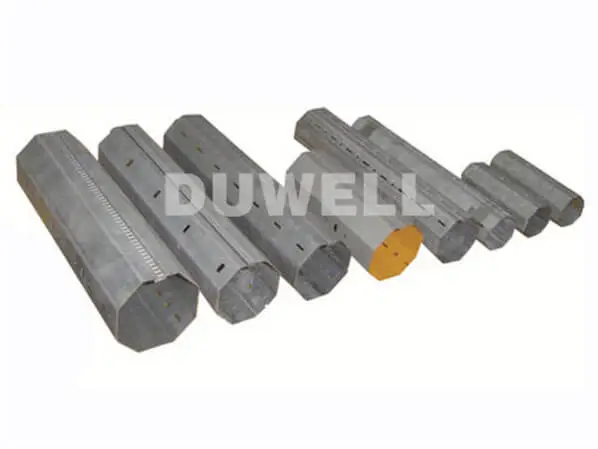

Our rolling shutter octagon pipe forming machine can produce common sizes such as:
• 40mm octagon tube
• 60mm octagon pipe
• 70mm octagon tube
• 102mm octagonal pipe
Custom sizes are available according to customer drawings.
Material thickness range:
0.5mm – 1.5mm (customizable)
Yes, we offer customized solutions for different pipe dimensions, automation levels, and additional features like auto-coil loading.
We offer installation guidance, operator training, spare parts supply, and technical support to ensure seamless operation.
Yes. The machine is equipped with:
• PLC automatic control system
• Touch screen operation
• Automatic length cutting
• Adjustable production parameters
• Fault alarm system
Easy operation and low maintenance cost.
90 days including production and final testing.
✔ Professional roll forming technology
✔ Custom octagonal tube design
✔ Competitive factory price
✔ Strong engineering support
✔ Global export experience
✔ Reliable after-sales service
We help shutter door manufacturers build high-efficiency and profitable production lines.
