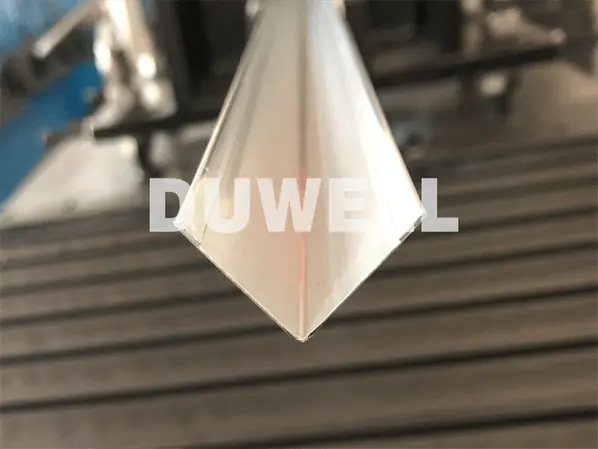

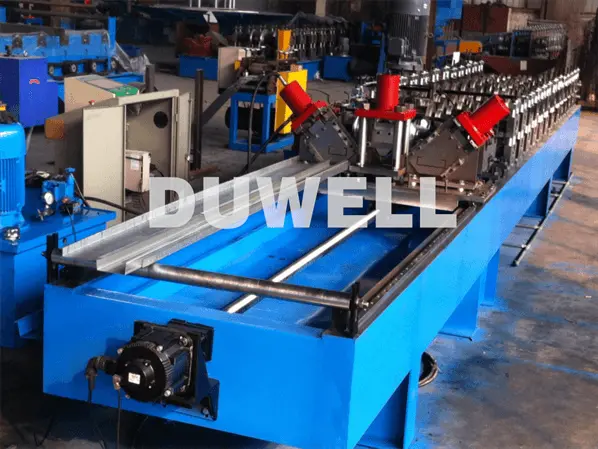

Drywall profiles usually consists of C stud, U track, omega profile, furring profile and wall angle profiles. DUWELL drywall profile machine can wowrk the profiles with speed 60 meters/min, with forming, punching , cutting and stacking complete production line. DUWELL also can work two different profiles in one machine, with two sets of rollers side by side to work two different profiles.
Our Light Steel/Drywall Roll Forming Machine is designed for high-precision, efficient production of drywall studs, tracks, and other light steel framing profiles used in construction. The machine is ideal for manufacturing C-sections, U-channels, and other structural components with consistent accuracy and speed.
Built with robust materials and advanced automation, our roll forming system ensures smooth operation, minimal maintenance, and long-term durability. It is suitable for both small-scale workshops and large industrial production lines.
✔ High-Speed Production – Capable of forming up to 30-60 meters per minute (adjustable based on material thickness).
✔ Precision Roll Forming – CNC-controlled for consistent profile dimensions (±0.2mm tolerance).
✔ Multi-Stage Roll Forming – 12-24 forming stations for gradual shaping without material stress.
✔ Automatic Cutting System – Hydraulic or servo-driven cutting for clean, burr-free edges.
✔ Material Compatibility – Works with galvanized steel, pre-painted steel, or stainless steel (thickness: 0.4mm – 2.0mm).
✔ User-Friendly PLC Control – Touchscreen interface for easy adjustment of length, speed, and quantity.
✔ Punching & Notching Options – Optional punching units for screw holes, service holes, or end notches.
✔ Low Maintenance – Durable rollers and minimal wear parts for reduced downtime.
Drywall Framing (Studs & Tracks)
Suspended Ceiling Systems
Partition Walls & Modular Construction

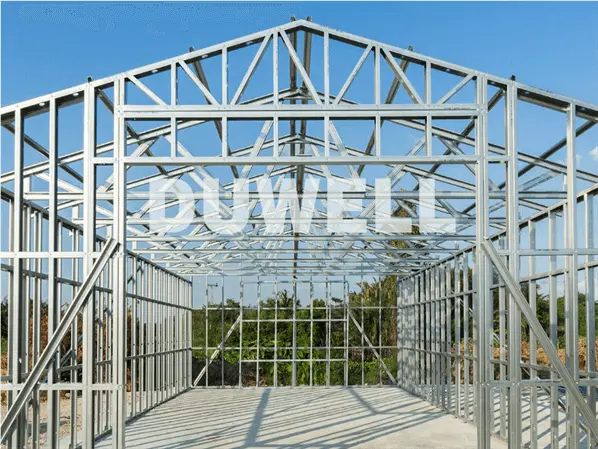

Steel Framing for Residential & Commercial Buildings
PLC controlled roll forming machine
Automatic punching and cutting roll forming line
Servo cut-off roll forming system
In-line punching roll former
High-precision roll forming machine
Heavy-duty roll forming equipment
Custom roll forming machine design
Quick changeover roll forming system
Multi-profile roll forming line
Working process
Decoiler —→ Guiding—→Roll-forming Machine —→Adjusting —→ Hydraulic cutting—→ Stacking
Machine parameters
Suitable plate of the rolling: galvanized steel with thickness 0.3~1.0mm,
Working speed: 50~60meters/min
Forming stations: 8~14 stations
Roller material: Cr12Mov (Cr12) with quenching and chrome plating on surface, hardness: HRC58-62
Material of principal axis: #45 advanced steel
Main machine power: 7.5 KW
Control system: The whole machine is controlled by PLC system.

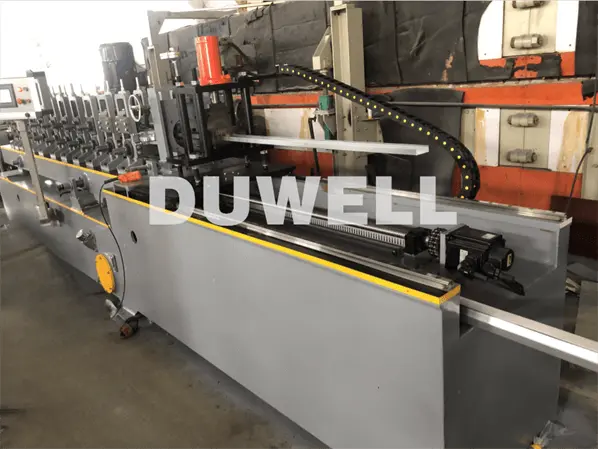

A light steel roll forming machine is an automatic production line used
to manufacture drywall metal studs, tracks, ceiling channels, and C/U
profiles from galvanized steel coils.
This drywall profile roll forming machine uses continuous cold roll forming
technology to produce high-precision light gauge steel framing components
for partition walls and ceiling systems.

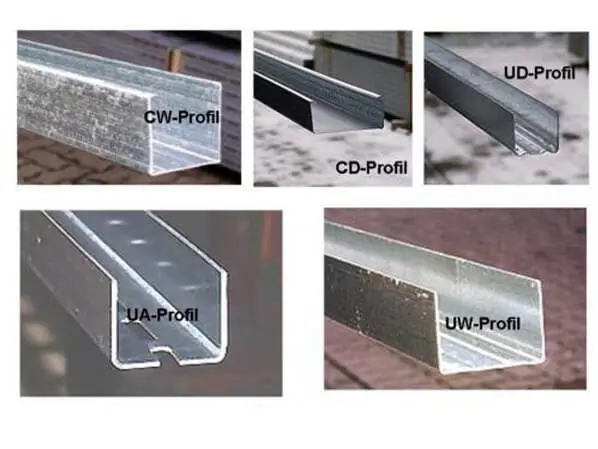

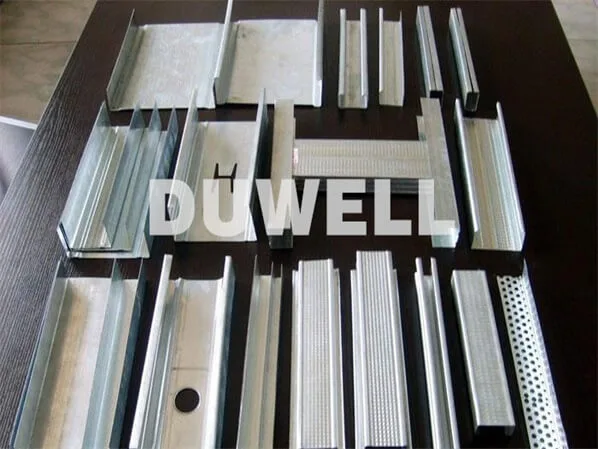

Our metal stud and track roll forming machine can produce:
• C stud profiles
• U track profiles
• Omega profiles
• Furring channels
• Ceiling main channel (CD)
• Ceiling track (UD)
• Hat channels
• Custom light gauge steel profiles
Profile size and punching patterns are customized according to customer
drawings and market standards.
Keywords: C channel roll forming machine, U channel forming machine,
ceiling channel machine
Our machine is suitable for:
• Galvanized steel (GI)
• Pre-painted steel
• Cold rolled steel
Thickness range:
0.3mm – 1.2mm (customizable)
The machine is specially designed for light gauge steel forming with
stable and smooth profile shaping.
Yes. Our drywall profile machine features:
• PLC automatic control
• Touch screen operation
• Automatic length measurement
• Automatic cutting
• Production data monitoring
One operator can manage the entire metal stud production line.
Yes, we have one type of “Two in one machine” which has two sets of rollers side by side in one machine, it can do two different profiles in one machine, no need adjust any part of machine, just feed in the material into different rollers.
Yes, We have one type of machine which can make stud and track in one machine, with adjustable sizes automaticlly. and switch between stud and track profiles. We will advise you on the most efficient setup for your product mix.

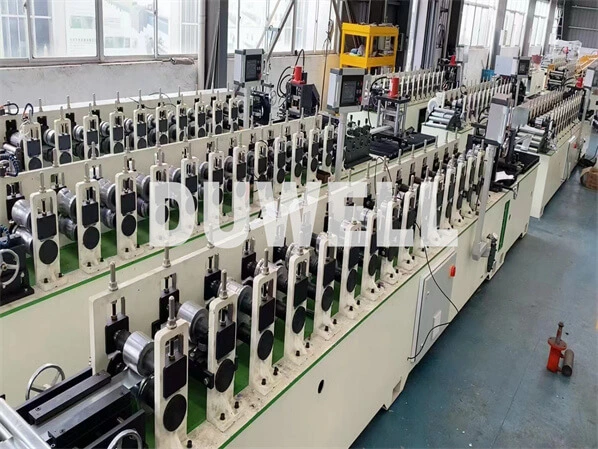

A complete light steel profile roll forming line includes:
• Manual or hydraulic decoiler
• Leveling device
• Servo feeding system
• Hydraulic punching unit
• Roll forming machine
• Flying cutting system
• PLC control system
• Output table
Fully automatic control ensures stable and continuous production.
Yes. Our drywall stud and track roll forming line can be equipped with:
• Servo feeding system
• Hydraulic punching system
• Online punching unit
• Multiple hole punching dies
Typical punching options:
• Service holes
• Knock-out holes
• Web holes
• Slot holes
Punching position and spacing can be fully customized.
Yes, we provide customized roll forming solutions based on your specific profile drawings.
Typically:
• 10–16 forming stations for standard stud/track
• Customized station design for special profiles
More forming stations ensure:
• Accurate profile dimensions
• Smooth surface finish
• High structural stability
Our machines are widely used by:
• Drywall profile manufacturers
• Building material factories
• Construction material suppliers
• Interior partition system companies
• Ceiling system manufacturers
Light steel framing is widely used in residential, commercial,
and industrial construction.
