DUWELL company is specially in all kind of garage door panel roll forming machines and industrial door panel machines. We can provide continuous line or discontinuous line according to customer’s requirement. The continuous garage door roll forming machine runs from raw coil to finished insulated door panels with maximum efficiency. Discontinuous line is separately working for door panels, and foam injection. Discontinuous line is a great alternative for the customer with limit space, lower production need. If you are interested in our high-quality roller door roll forming machine solutions, please feel free to inquire about the price of the door roll forming machine.
The DUWELL garage door roll forming machine line is widely used for manufacturing:
Residential and industrial garage door panels

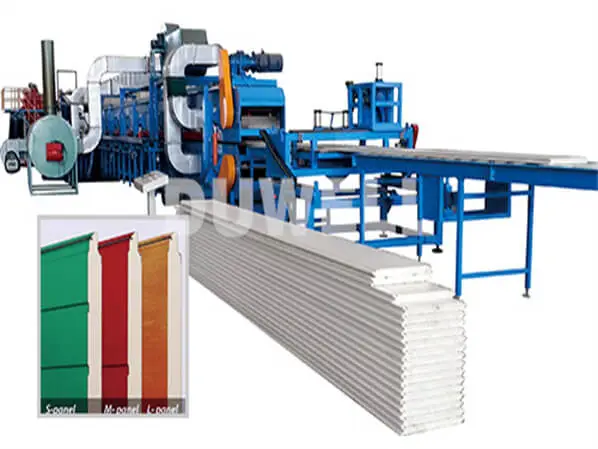

Insulated roller garage doors

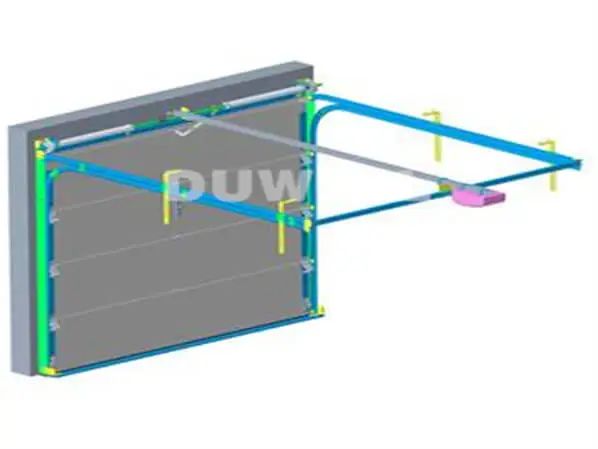

Sectional garage doors with PU foam core

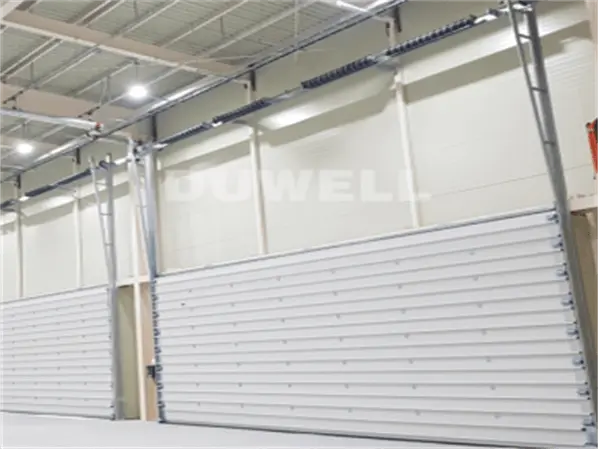

Garage roller shutter door systems
It is suitable for producing panels made of galvanized steel, aluminum, and pre-painted steel. As an experienced garage door panel roll forming machine manufacturer, DUWELL supports customized configurations and provides clear guidance on garage door roll forming machine price based on production needs and technical specifications.

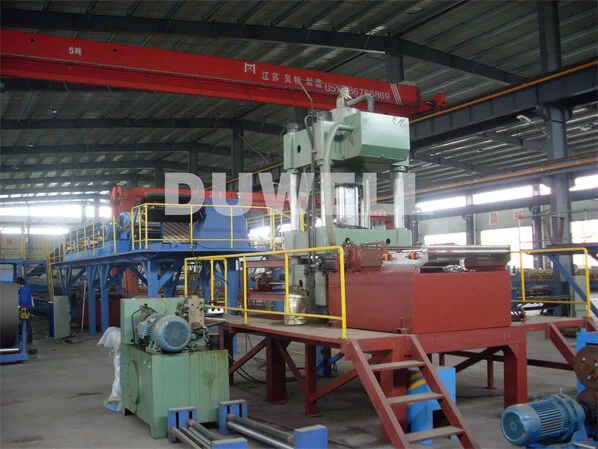

A typical door panel roll forming machine line includes:
Un-coiler (5 tons )
Embossing and firm machine
Automatic feeder and leveler (N.C)
Press machine(200ton)
Square mould
Upper roll former
Down panel roll former

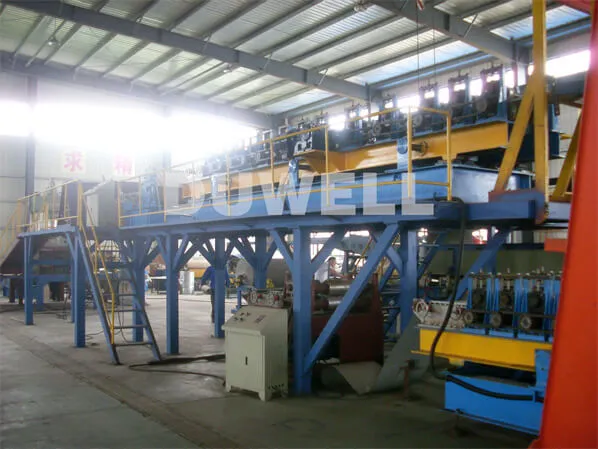

Double layer construction platform
Double bridge device and conveyor
Other conveyor
Hydraulic system
Electrical control system

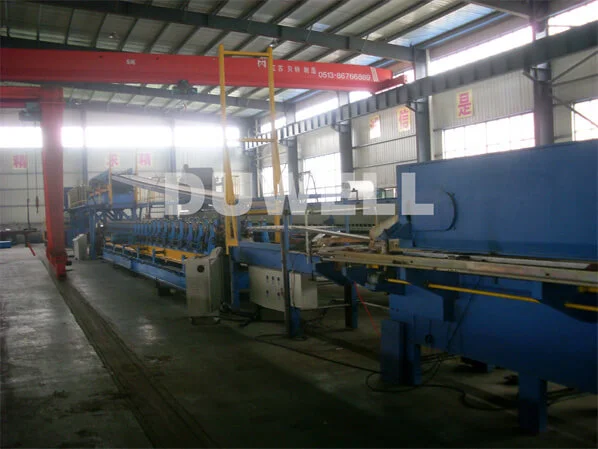

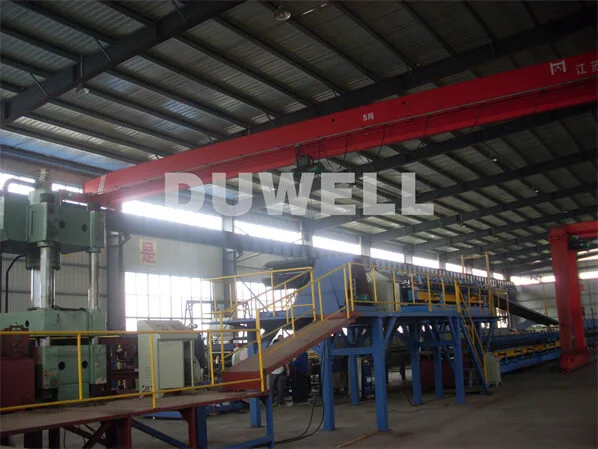

The complete garage roller door roll forming machine line has a total length of approximately 80–90 meters, depending on configuration. It is designed for continuous and stable production of insulated garage door panels with uniform foam density and strong bonding strength.
90 meters total length

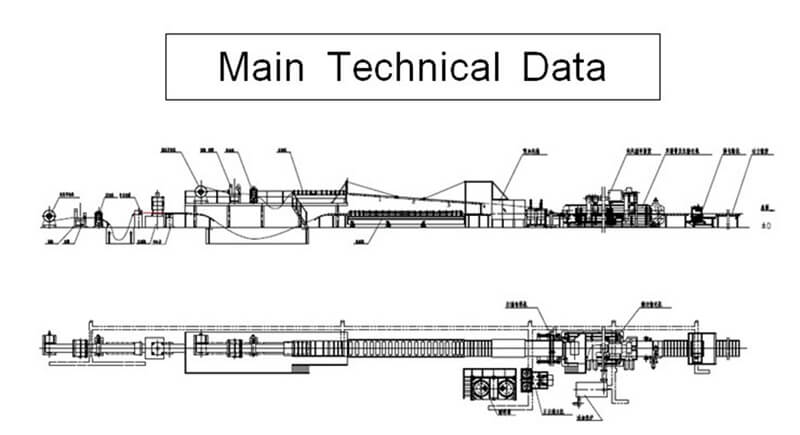

Main component of the line:
NO. | name | quantity |
1. Main roll former | ||
1 | Un-coiler (5 tons ) | 2 |
2 | Embossing and firm machine | 2 |
3 | Automatic feeder and leveler (N.C) | 1 |
4 | Press machine(200ton) | 1 |
5 | Square mould | 1 |
6 | Upper roll former | 1 |
7 | Mark machine (N.C) | 1 |
8 | Down panel roll former | 2(two types) |
9 | Double layer construction platform | 1 |
10 | Double bridge device and conveyor | 1 |
11 | Other conveyor | 1 |
12 | Hydraulic system | 1 |
13 | Electrical control system | 1 |
2. PRE-HEATING SYSTEM | ||
1 | Heating house | 1 |
2 | pre-heating system | 1 |
3 | electrical control system | 1 |
3.HIGH PRESSURE FOAM MACHINE | ||
1 | High pressure continuous foam machine | 1 |
2 | Pursing output device | 1 |
3 | Electrical control system | 1 |
4. DOUBLE BELT SYSTEM | ||
1 | Double belts system（24M） | 1 |
2 | Chain supporting system of two side | 1 |
3 | Side-chain system | 1 |
4 | Heating machine for double belts | 1 |
5 | Electrical control system | 1 |
5. Thickness and plastic mould | ||
1 | Mould & Plastic mould blade | 1 |
6. CUTTING SYSTEM | ||
1 | Cutting saw blade | 1 |
2 | Conveyor with output table | 1 |
3 | Door panel roll forming machine also has an electrical control system | 1 |
This integrated design allows the garage roller door roll forming machine to achieve stable insulation performance, accurate panel dimensions, and high production efficiency.
Customers need to provide door panel profile drawings or samples. DUWELL will then evaluate the design and quote the exact garage door roll forming machine price.
Common Materials: Galvanized steel, aluminum, pre-painted/coated steel.
Thickness Range: Typically 0.3mm to 1.0mm, depending on machine capability.
Coil Width: Varies by design (e.g., 200mm to 500mm).
Yes. DUWELL has two types of garage production line. The difference is in 24 meters conveyor type. One is high standard metal panel conveyor. One is economic plastics conveyor type. Please contact if need the detailed difference.
150 days including production and final testing working.
This line is approx. 80 meters lone. When customer get the machine, DUWELL need send two technicians to customer for installation and training. The customer need pay for the round flight tickets cost and accommodation.
DUWELL gives two-years warranty period for all machines, We provide free cost after service for all machines which caused by machine quality in warranty time, with 24 hours on line services. One purchase, lifetime care for you.
