Floor decking panel roll forming machine consists decoiler, roll forming , cutting and stacking, complete production line, controlled by PLC system. The customer just set the length and numbers on controller.
Uncoiler: Loading the steel coil
Guiding : Guide in the material

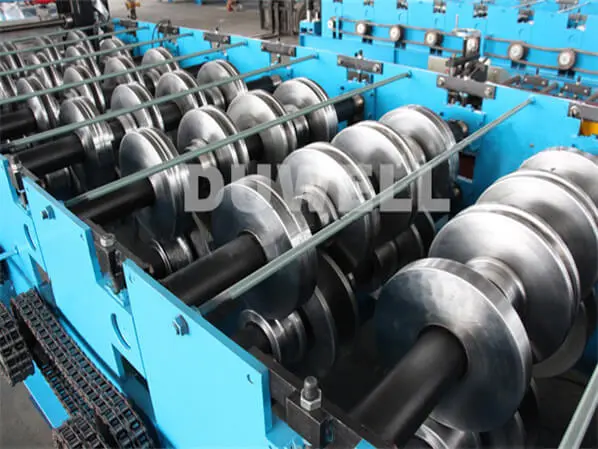

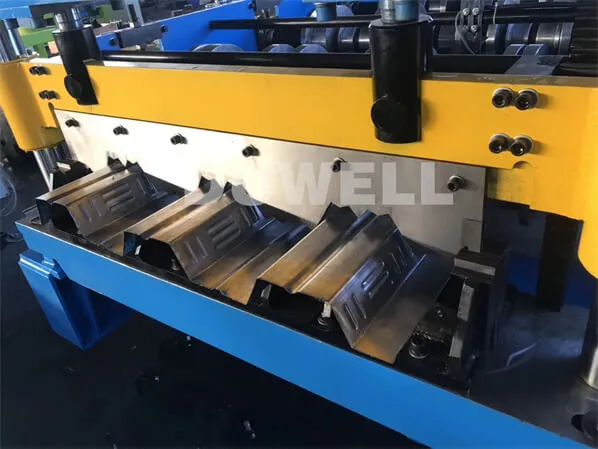

Profiling Roll Forming Machine: For precise profile forming.
Hydraulic cutting device: For precise cuts.
Stacking Table: Stacking the finished products
Working process
Decoiler —→ Guiding—→Roll-forming Machine—→ Hydraulic cutting—→ Stacking
Machine parameters
Suitable plate of the rolling: PPGI or GI with thickness 0.8~1.5mm,
Working speed: 15~25 meters/min
Forming stations: According to customer’s roof profiles
Roller material: Cr12Mov (Cr12) with quenching and chrome plating on surface, hardness: HRC58-62
Material of principal axis: #45 advanced steel
Control system: The whole machine is controlled by PLC system.

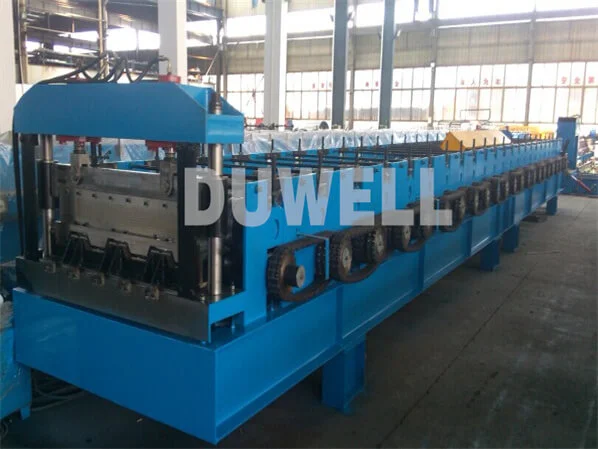

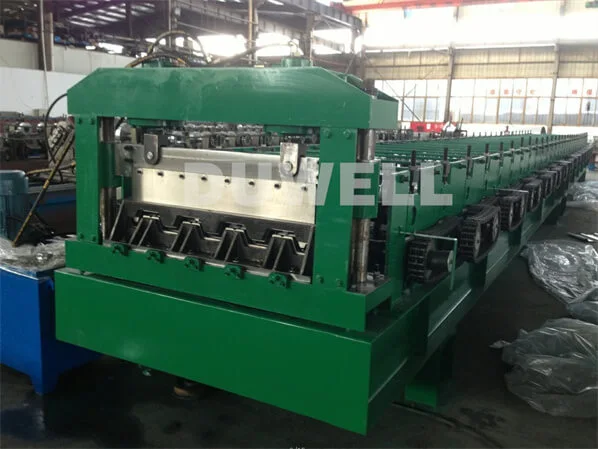

A floor decking roll forming machine is an automated cold roll forming
production line designed to manufacture steel floor decking panels,
profiled metal decking, and composite floor sheets for construction projects.
The machine can produce various profiles with precise corrugations and
ribs, suitable for reinforced concrete floors, roof decks, and structural steel
construction.
Our floor decking roll forming machines can manufacture:

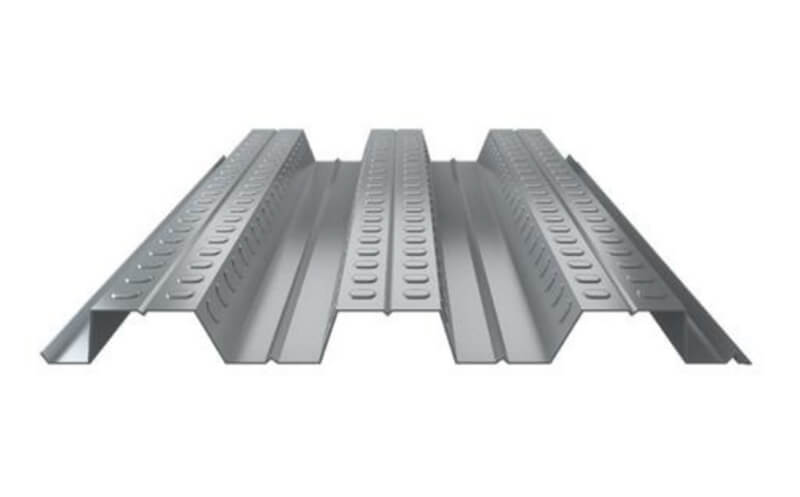

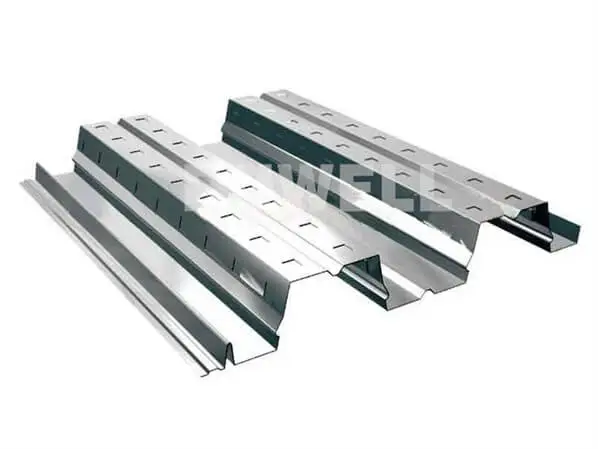

• Standard trapezoidal decking profiles
• Ribbed floor decking panels
• Composite steel deck sheets
• Cellular floor decking profiles
• Customized decking profiles according to customer drawings
We can adjust the decking height, rib spacing, and sheet width to meet international construction standards.
Our machines are compatible with:
• Galvanized steel (GI)
• Cold rolled steel
• Aluminum zinc coated steel (AZ)
• High strength steel (Q235, Q345, ASTM standards)
Material thickness range: 0.6mm – 2.0mm (customizable up to 3.0mm for heavy-duty decks)
Typical production speed:
•8–20 meters per minute (depends on punching requirements)
High-speed production ensures lower cost per square meter and meets large-scale construction project deadlines.
A complete production line includes:
• Hydraulic decoiler
• Guiding and embossing units
• Roll forming machine with multiple stations
• Hydraulic cutting system
• PLC control system with touch screen
• Output table or automatic stacker
Fully automatic operation reduces labor costs and improves production efficiency.
Yes. Features include:
• PLC automatic control
• Touch screen interface
• Automatic length measurement and cutting
• Hole punching with high precision
• Production data recording and monitoring
One operator can manage the whole production process efficiently.
• Heavy-duty welded frame for stable operation
• Precision roll forming for smooth surface finish
• Long service life of rollers (Cr12MoV or GCr15)
• High-speed punching and cutting
• Low maintenance cost
• CE certification available
• Exported worldwide

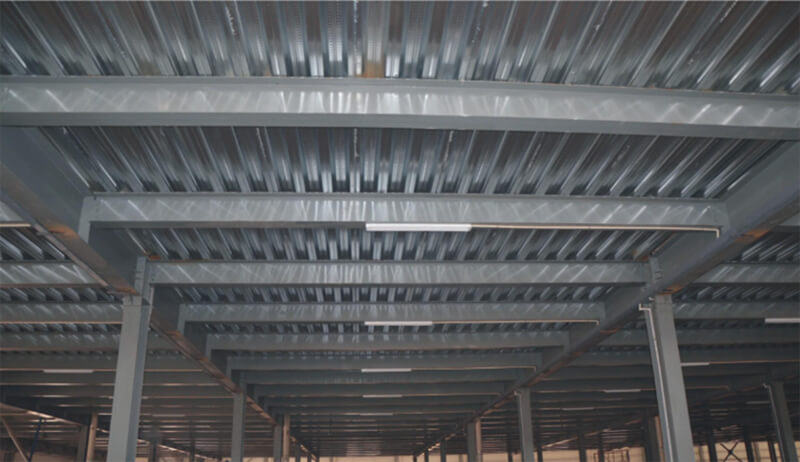

Our machines are widely used in:
• Commercial and industrial building construction
• Warehouse and factory floor decking
• Bridge and infrastructure projects
• Roof deck systems
• Composite concrete flooring
Standard delivery time: 60–90 days after deposit
Customized machines may require longer depending on profile
complexity and tooling requirements.
• Professional manufacturer with years of roll forming experience
• Custom profile design for any construction project
• Competitive factory price
• Strong engineering and after-sales support
• Reliable overseas installation and commissioning service
