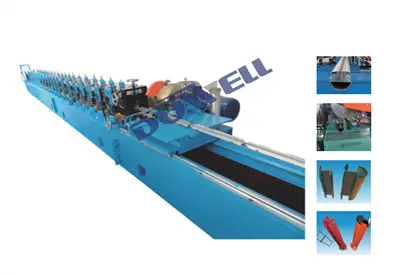

DUWELL's fence post roll forming machine is a fully automatic production line for manufacturing steel fence posts with consistent cross-sections, accurate lengths, and uniform hole or slot patterns. The line combines coil feeding, leveling, hydraulic punching, roll forming, flying saw cutting, and run-out handling in one continuous process.
This fence post making machine can be engineered for palisade, peach, diamond, C, U, T, Y, square, vineyard, and other custom post profiles. Finished posts made from low-carbon or galvanized steel can be supplied with galvanized, PVC-coated, or PE-coated surfaces for corrosion resistance and a clean appearance. They are commonly installed with chain-link, welded-wire, security, agricultural, highway, residential, and industrial fencing systems.
Send Your Fence Post Drawing for a Fence Post Making Machine Proposal
Share your post profile drawing or sample, steel grade and thickness, hole pattern and spacing, finished length, required output, local voltage, and destination country. DUWELL will configure the forming, punching, cutting, and handling system around your product.

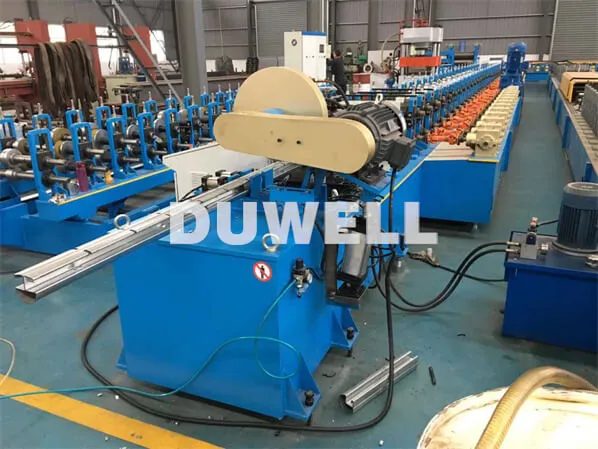

The fence post roll forming machine is a fully automatic production line used to manufacture different types of steel fence posts with precise dimensions and uniform hole patterns. The system integrates coil feeding, leveling, punching, roll forming, cutting, and run-out handling into one continuous process.

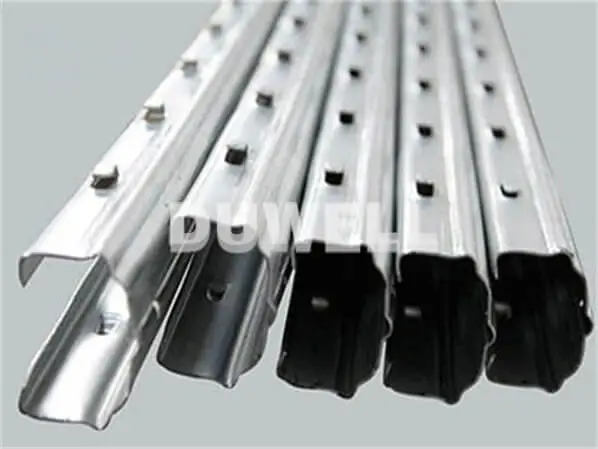

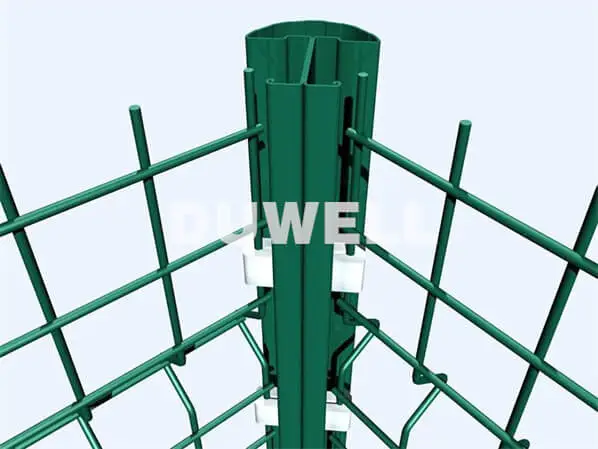

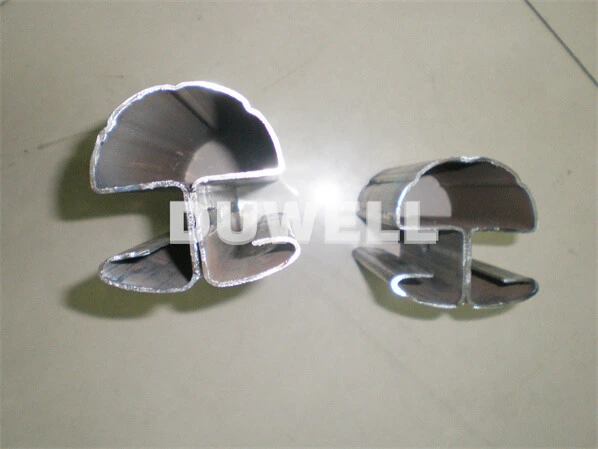

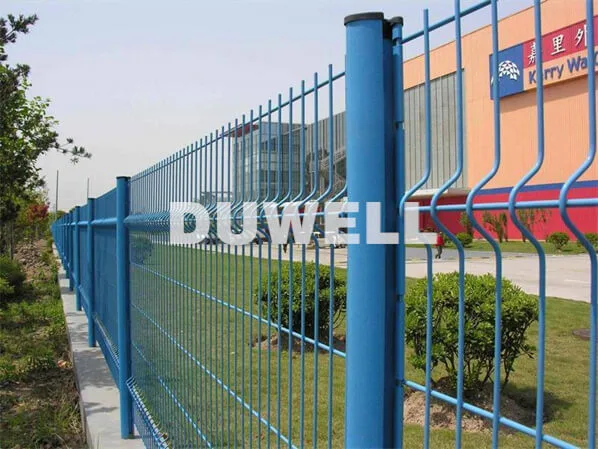

Most common used steel fence posts are palisade fence post, peach fence post, diamond fence post or Y shape are made of low carbon steel. With galvanized, PVC coated or PE coated surface and various beautiful colors, they have good corrosion resistant feature and perfect aesthetic effect. Installed with various wire mesh fences, the metal fence posts are widely used for residence fencing, farm fencing, stadium fencing, highway fencing, plant fencing, road fencing and so on.
Our Fence Post Roll Forming Machine is a high-precision, automated production line designed to manufacture steel fence posts (C-posts, U-posts, T-posts, and custom profiles) with consistent quality and efficiency. Ideal for fencing manufacturers, agricultural suppliers, and construction companies, this machine ensures high-speed, low-waste production of durable fence posts for residential, commercial, and industrial applications.
✅ Fully Automatic Operation – PLC-controlled for precision forming, punching, and cutting.
✅ Multi-Profile Compatibility – Produces C/U/T-posts (adjustable tooling for custom shapes).
✅ High-Speed Production – 10–25 meters per minute (depends on material thickness).
✅ Material Flexibility – Works with galvanized steel, stainless steel, or pre-painted coils (0.8mm–2.5mm thickness).
✅ Punching & Hole Patterns – Auto-punching for screw holes, barbed wire slots, or decorative designs.
✅ Low Maintenance – Heavy-duty rollers, servo-driven cutting, and durable gearboxes.
✅ Optional Add-Ons – Automatic stacking, hydraulic cutting, or powder-coating integration.
To meet growing demand for consistent quality and large-scale output, DUWELL provides a fence post roll forming machine designed for automated, stable, and high-efficiency production of steel fence posts. Contact us today!
As a professional fence post machine manufacturer, DUWELL designs each line according to customer drawings, material thickness, and required post profiles, ensuring reliable performance for long-term industrial use.
The fence post making machine is suitable for producing posts used in:Chain link fence systems
Welded wire mesh fences
Security fencing
Agricultural and livestock fencing
Vineyard and orchard fencing

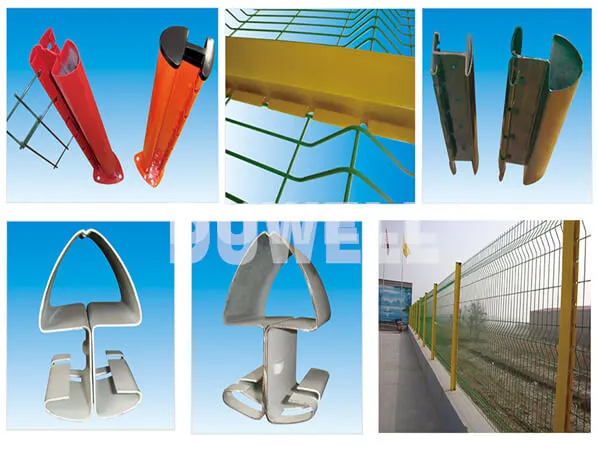

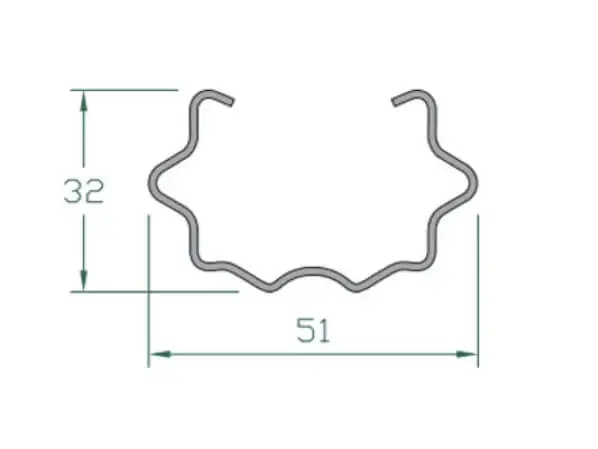

Each fence post roll forming machine is designed according to the customer's post drawing, material thickness, hole requirements, and intended application. Compatible profiles and typical uses include: peach posts, C-posts, U-posts, T-posts, Y-posts, and customized profiles.
| Post profile | Typical fencing application | Production requirement |

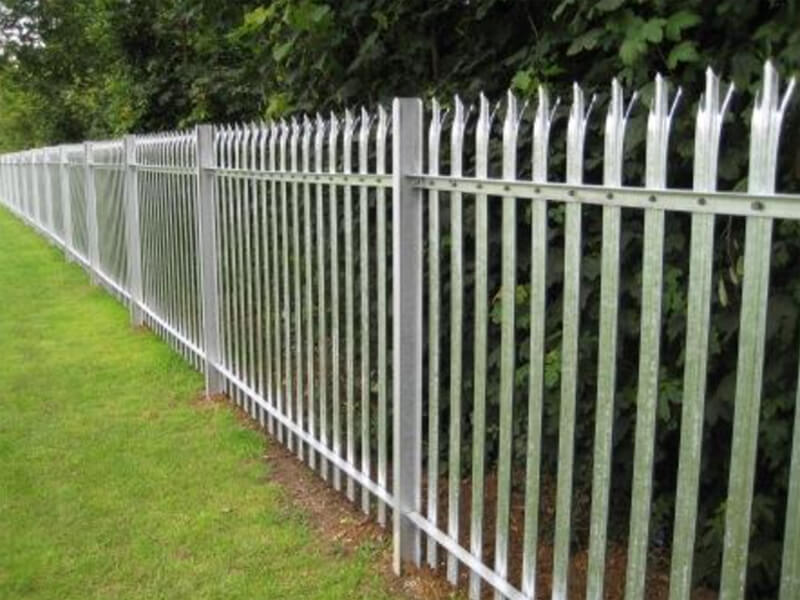

| Peach, diamond, and palisade posts | Security, residential, commercial, and perimeter fencing | Profile-specific forming rollers with repeatable hole positioning |

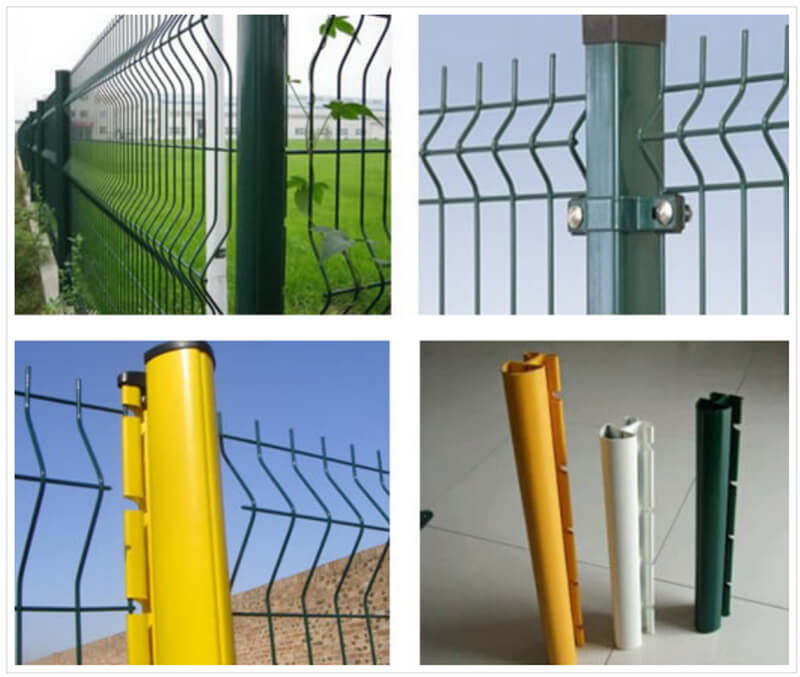

| C, U, T, and square posts | Chain-link, welded-mesh, highway, and industrial fencing | Tooling and punching molds designed to the section drawing |
| Y posts / star pickets | Agricultural, farm, and livestock fencing | Hole or slot pattern matched to wire installation |

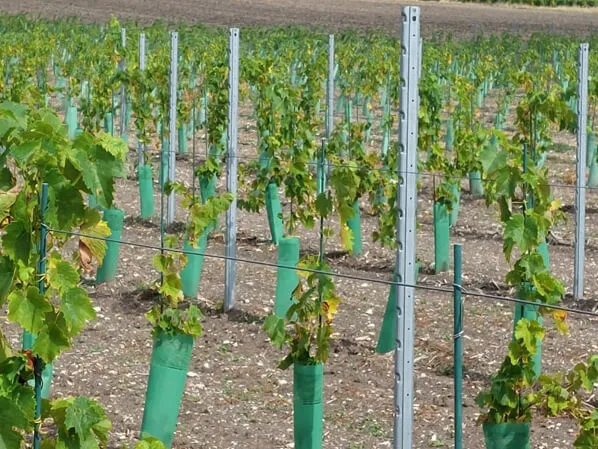

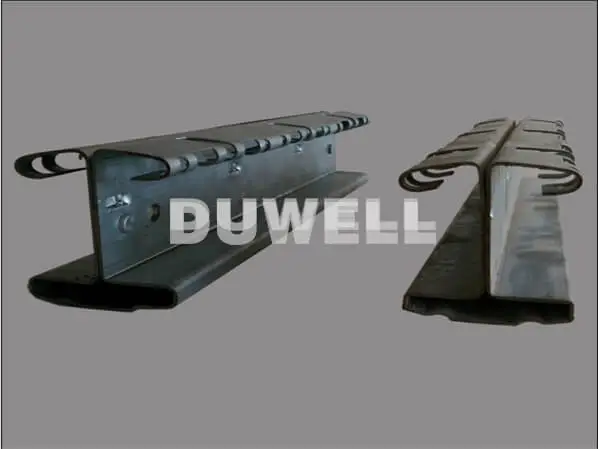

| Vineyard posts | Vineyard and orchard trellis systems | Customized slots, spacing, post length, and section geometry |
| Custom fence posts | Project-specific fencing systems | Line design based on the customer’s drawing or physical sample |
Uncoiler: Loading the steel coil
Guiding and Leveler: Guiding the sheet into roll former
Profiling Roll Forming Machine: For precise profile forming.
Hydraulic punching device: Punch the holes on the sheet
Cutting device: For precise cuts.
| Component | Function |
| Uncoiler | Supports and releases the steel coil for continuous feeding. |
| Guiding and leveling unit | Centers and flattens the strip before punching and forming. |
| Hydraulic punching unit | Creates the specified screw holes, wire slots, or decorative patterns with servo-controlled positioning. |
| Profiling roll former | Uses progressive stations to form the required post cross-section with consistent dimensions. |
| Cutting unit | Cuts posts to the programmed length using the configured flying saw or hydraulic system. |
| Run-out table / stacker | Receives finished posts; automatic stacking is available for higher-output production. |
| PLC control system | Manages production length, quantity, hole position, and stored operating parameters. |
Coil loading: The uncoiler supports the steel coil and feeds strip into the line.
Guiding and leveling: The entry guide aligns the strip while the leveler prepares it for accurate punching and forming.
Hydraulic punching: A servo-controlled punching unit produces screw holes, wire slots, or other specified patterns.
Roll forming: Progressive roller stations form the flat strip into the required fence post profile.
Profile adjustment: The formed section is calibrated for the required dimensions and straightness.

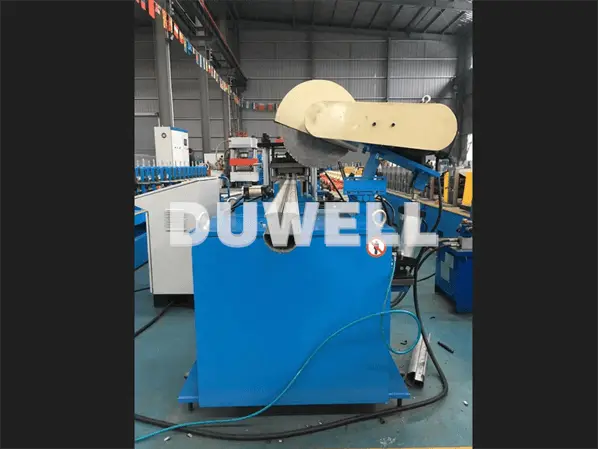

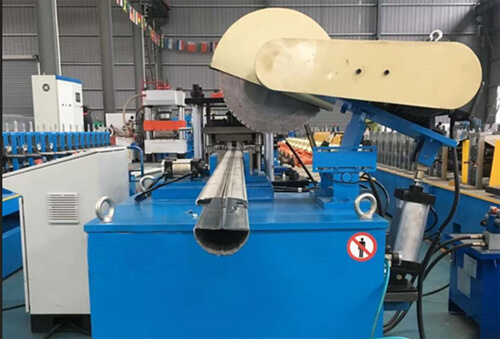

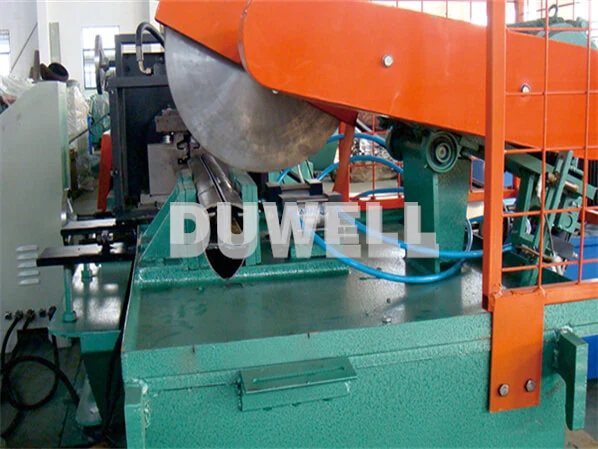

Flying saw cutting: The continuous profile is cut to the programmed length.
Run-out handling: Finished posts move to the run-out table or an optional automatic stacking system.
Working process
5 ton decoiler —→ Guiding and leveling device—→Hydraulic punching device—→Roll-forming Machine —→Adjusting —→ saw cutting—→ Run out table
Machine parameters
Uncoiler: 3Tons decoiler
Forming station: 28 stations (according to customer’s post design)
Driving type: chain or Gear box transmission
Main motor power: 15KW
Shaft Dia: 80mm
Roller material: GCr15 with quenching and chrome plating on surface. Hardness: HRC58~60
Hydraulic system: 7.5kw
Electrical system: Delta control system
Cutting type: Flying saw cutting
Punching system: Hydraulic punching with servo motor
Cooling system: water cooling system
Material thickness: 1.0-1.5mm，Galvanized sheet
Forming speed: 15m/min
The following data describes the standard reference configuration currently offered for galvanized fence post production. Final specifications are matched to the approved post drawing and production requirements.
| Uncoiler | 3-ton decoiler |
| Forming stations | 28 stations, according to the customer’s post design |
| Drive type | Chain or gearbox transmission |
| Main motor power | 15 kW |
| Shaft diameter | 80 mm |
| Roller material | GCr15 with quenching and chrome-plated surface; hardness HRC 58–60 |
| Hydraulic system | 7.5 kW |
| Electrical control | Delta control system |
| Cutting method | Flying saw cutting |
| Punching system | Hydraulic punching with servo motor |
| Cooling system | Water cooling system |
| Standard material | Galvanized steel sheet, 1.0–1.5 mm |
| Standard forming speed | 15 m/min |
Because post geometry, steel strength, thickness, and punching frequency directly affect the line design, DUWELL configures each fence post machine for the buyer's product. Available production configurations include:
| Production need | Available configuration |
| Standard galvanized posts | 1.0–1.5 mm galvanized sheet with a reference forming speed of 15 m/min |
| Broader material range | Galvanized steel, stainless steel, cold-rolled steel, high-strength structural steel, or pre-painted coil, according to the approved line design |
| General custom thickness | 0.8–2.5 mm configurations for suitable post sections and materials |
| Heavy-duty post production | 1.2–3.5 mm customized configurations for suitable heavy-duty profiles |
| Production speed | 10–25 m/min for typical configured lines; servo-feeding solutions can reach up to 30 m/min when the material, profile, and punching cycle permit |
| Coil capacity | 3-ton standard uncoiler or 5-ton decoiler configuration |
| Downstream automation | Optional automatic stacking, hydraulic cutting, and powder-coating integration |
The integrated servo feeding and hydraulic punching system can produce screw holes, wire slots, or customized patterns before the strip enters the roll former. Hole positions and spacing are set through the PLC and touch screen. Automatic length setting, hole positioning, quantity control, and parameter memory help maintain repeatability while allowing one operator to manage the complete production process.
The price of a production line depends on the post profile, number of required profiles, steel grade and thickness, punching pattern, target speed, cutting method, coil capacity, automation level, and optional downstream equipment. A drawing-based proposal is more accurate than a generic price because the roller tooling, station count, punching molds, motors, and control sequence must match the finished post.
For a detailed quotation, send:
Post cross-section drawing with dimensions, or a physical sample
Material type, yield strength, coating, and thickness
Hole or slot drawing, spacing, and tolerance
Finished post length and length tolerance
Required production speed or daily output
Factory voltage, frequency, and phase
Required uncoiler, stacking, cutting, and coating options
Delivery destination
A steel fence post roll forming machine is an automatic production line
designed to manufacture metal fence posts from galvanized or cold
rolled steel coils using continuous cold roll forming technology.
The machine integrates decoiling, leveling, punching, roll forming,
and hydraulic cutting to produce high-strength fence posts for
agriculture, highway, residential, and industrial fencing systems.
Our fence post roll forming machine can produce:
• U channel fence posts
• C channel fence posts
• Square fence posts
• Y posts (star picket posts)
• Vineyard posts
• Highway fence posts
• Agricultural fencing posts
We customize profiles according to customer drawings and international fencing standards.
Our heavy-duty fence post roll forming machine can process:
• Galvanized steel
• Cold rolled steel
• High strength structural steel
Thickness range:
1.2mm – 3.5mm (customizable for heavy-duty applications)
Yes! We adjust length, hole patterns, profile shapes, and automation levels (e.g., auto-stacking).
Standard production speed:
• 15–30 meters per minute
• Higher speed options available with servo feeding system
Actual speed depends on material thickness and punching hole requirements.
Absolutely. The machine includes auto-punching units for screw holes, wire slots, or other patterns.
Our automatic fence post roll forming line includes:
• Servo feeding system
• Hydraulic punching unit
• Multiple hole punching molds
• Hydraulic flying cutting system
Hole positions and spacing can be adjusted via PLC control.
Yes. The machine is equipped with:
• PLC control system
• Touch screen operation
• Automatic length setting
• Automatic hole positioning
• Production parameter memory
One operator can manage the entire production process.
Yes! We offer on-site or remote training for setup, operation, and maintenance.
Our fence post machines are widely used in:
• Agricultural fencing manufacturers
• Highway fence system suppliers
• Vineyard and orchard equipment producers
• Industrial fencing companies
• Residential fence manufacturers
