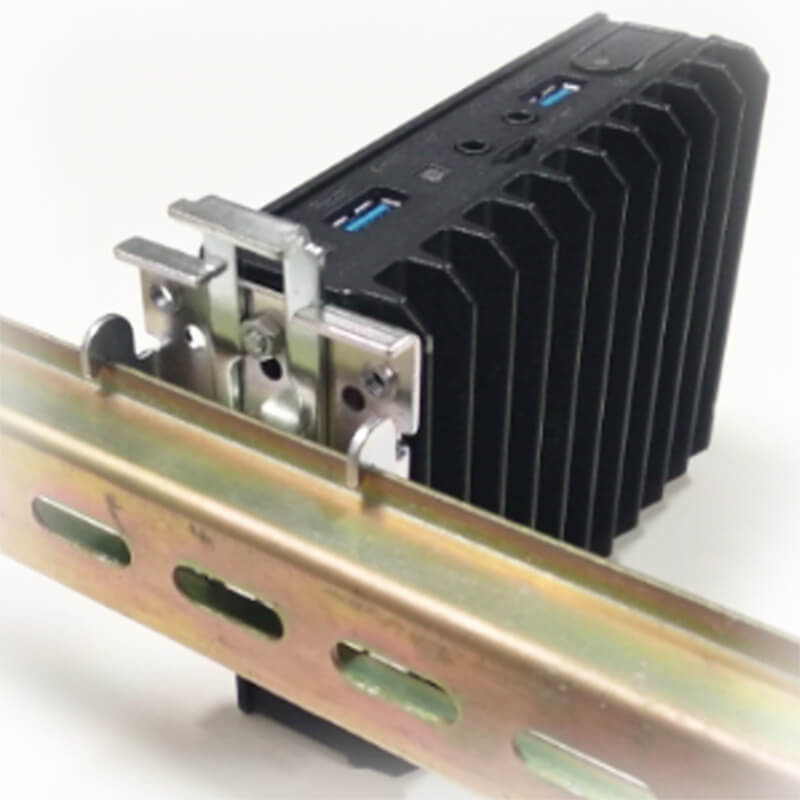

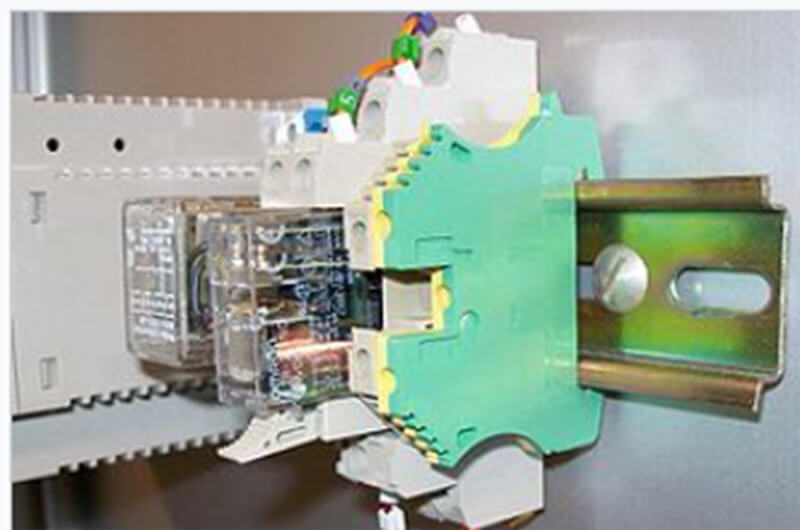

The DIN rail roll forming machine is a specialized cold roll forming production line designed for manufacturing standardized DIN rails used in electrical control panels, switchgear cabinets, and automation systems. These rails are widely applied for mounting circuit breakers, terminal blocks, relays, and other electrical components.

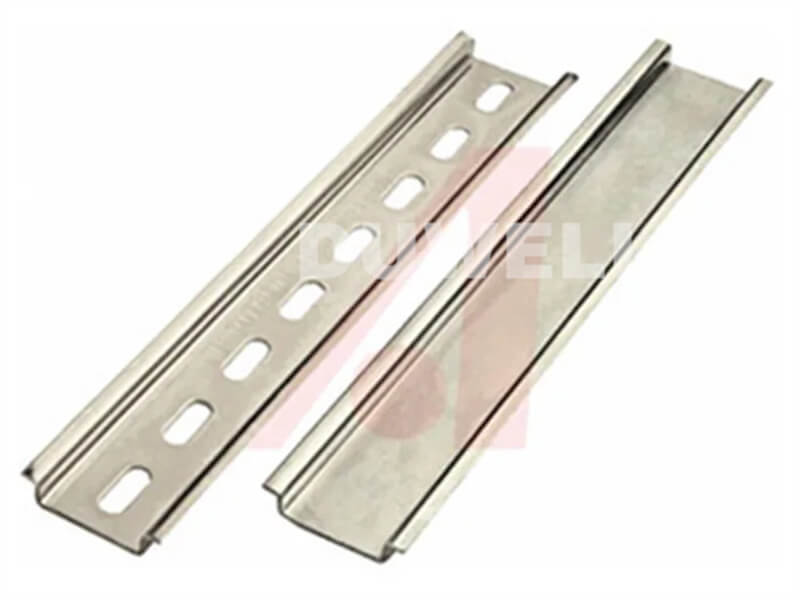

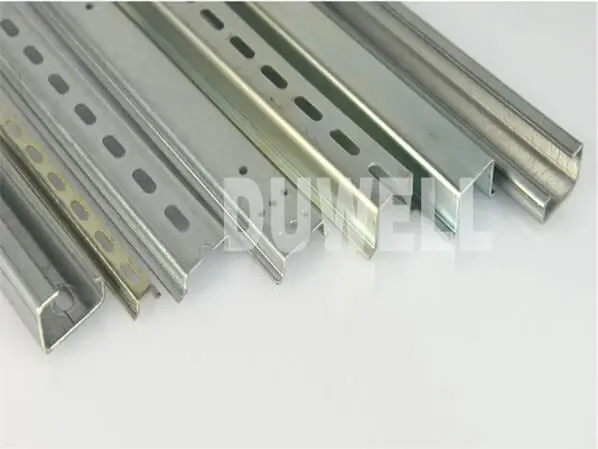

Our DIN rail roll forming machine continuously processes metal strips—such as carbon steel, galvanized steel, stainless steel, or aluminum—through precision roll forming stations to produce accurate DIN rail profiles, including TS-35, TS-32, TH-35, and other customized standards.
With high forming accuracy, stable operation, and automated control, the DIN rail roll forming machine is ideal for large-scale, consistent production of electrical mounting rails.
DIN rails produced by this roll forming line are widely used in:
Electrical control cabinets
Power distribution panels
Industrial automation systems
Switchgear and MCC panels
Electrical enclosures for buildings, factories, and infrastructure

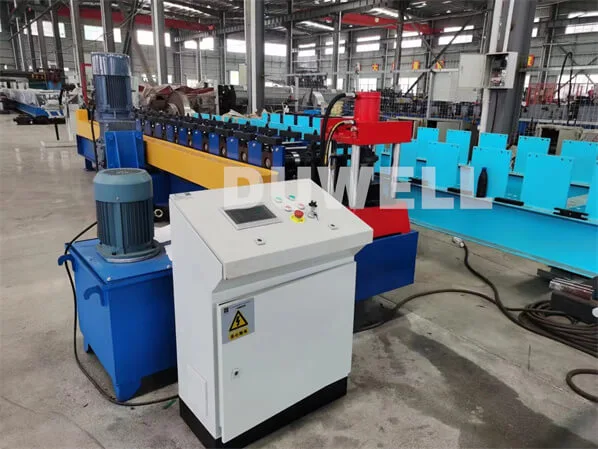

The DIN rail roll forming machine is commonly installed in electrical equipment factories, panel builders, and industrial component manufacturing plants. As a professional DIN rail roll forming machine, DUWELL designs and manufactures customized production lines with stable performance and precise forming accuracy.

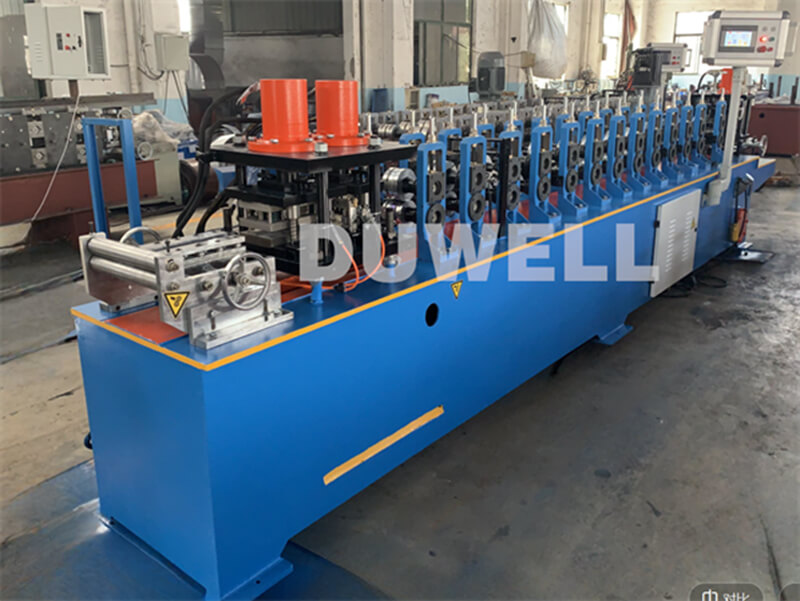

Uncoiler: Loading the steel coil
Profiling Roll Forming Machine: For precise profile forming.
Flying punching device: Punch the holes on din rail.
Adjusting device: For final cable tray straight adjusting.
Flying cutting device: Cut off the finished rails according to setting length.
Stacking Table: Stacking the finished cable tray.
Working process
Decoiler —→Guiding —→ Roll-forming Machine —→Flying punching—→Adjusting —→Flying cutting —→Run out table
Machine parameters
Suitable plate of the rolling: Steel , with thickness 0.8~1.0mm,
Working speed: 8~12 meters/min
Forming stations: 14 stations
Roller material: GCr15 with quenching and chrome plating on surface, hardness: HRC58-62
Material of principal axis: #45 advanced steel
Main machine power: 7.5 KW
Control system: The din rail roll forming machine is controlled by PLC system
Our machine can process carbon steel, galvanized steel, stainless steel, and aluminum, depending on customer requirements.
It can form TS-35 (Top Hat 35mm), TS-32, TH-35, and other custom profiles upon request.
The speed ranges from 5 to 25 meters per minute, adjustable based on material thickness and profile complexity.
Yes, it includes an automatic hydraulic/pneumatic cutter for precise length control.
Yes, we offer custom roll tooling design for unique DIN rail specifications.
