A ceiling and wall panel roll forming machine is a specialized piece of industrial equipment designed to continuously produce long, linear metal panels used for interior ceilings, interior/exterior walls, partitions, and sometimes roofs in buildings. These panels are known for their clean lines, durability, and ease of installation.

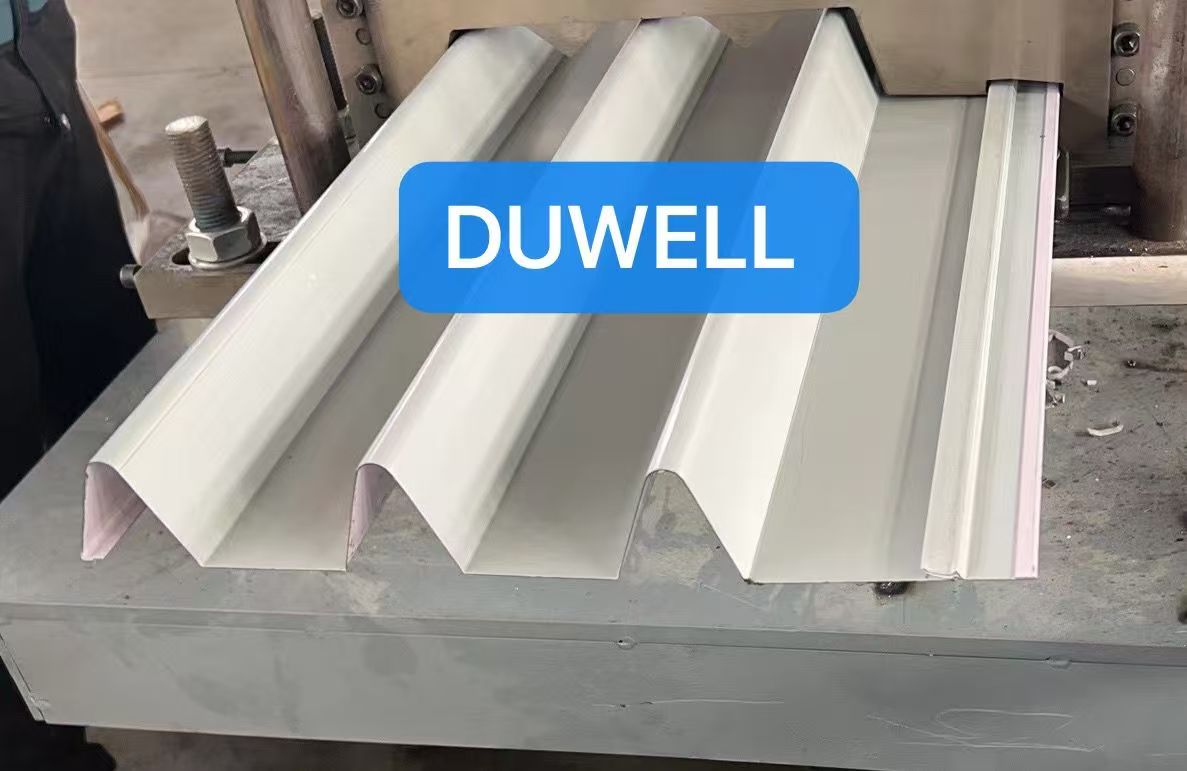

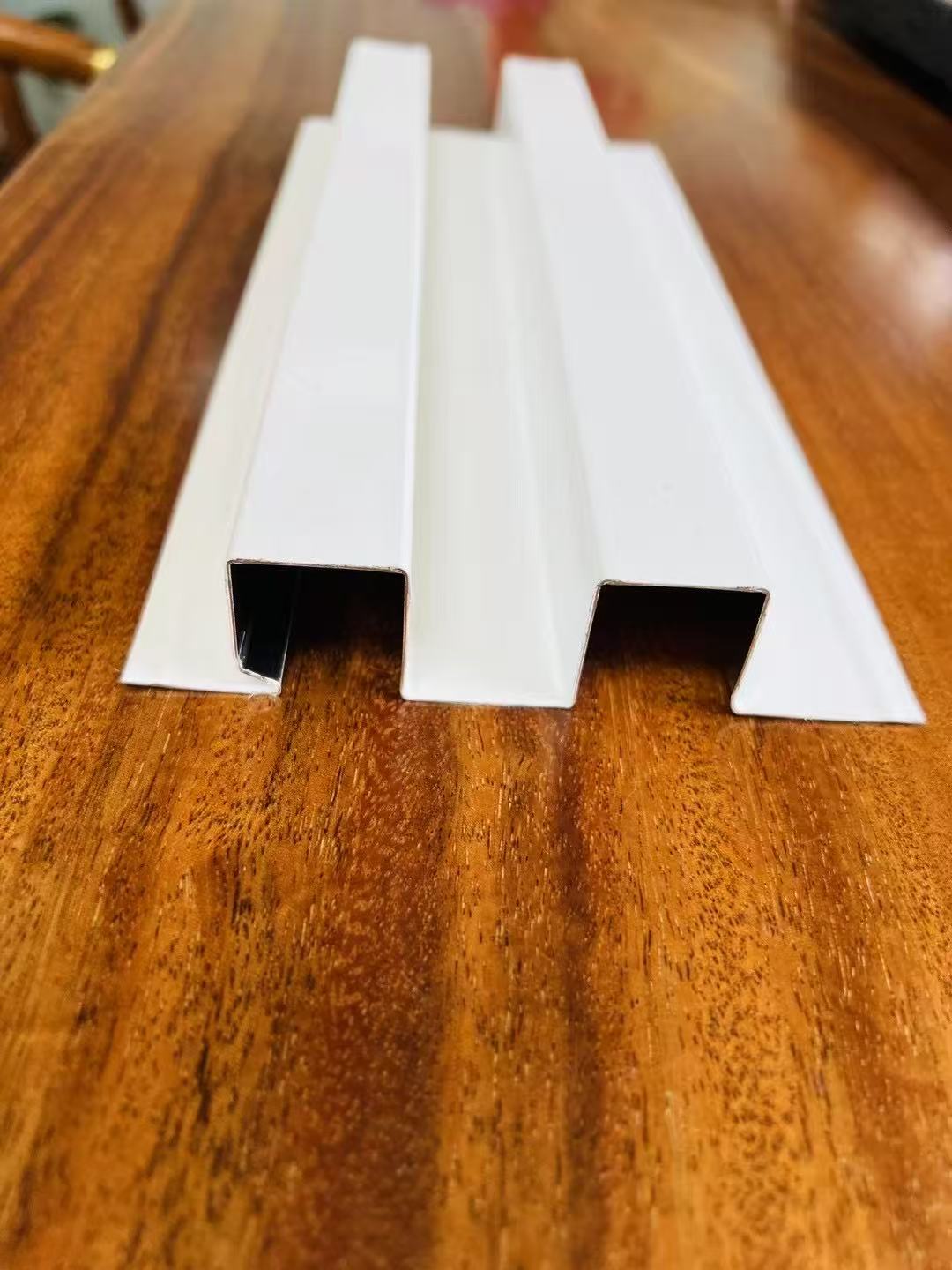

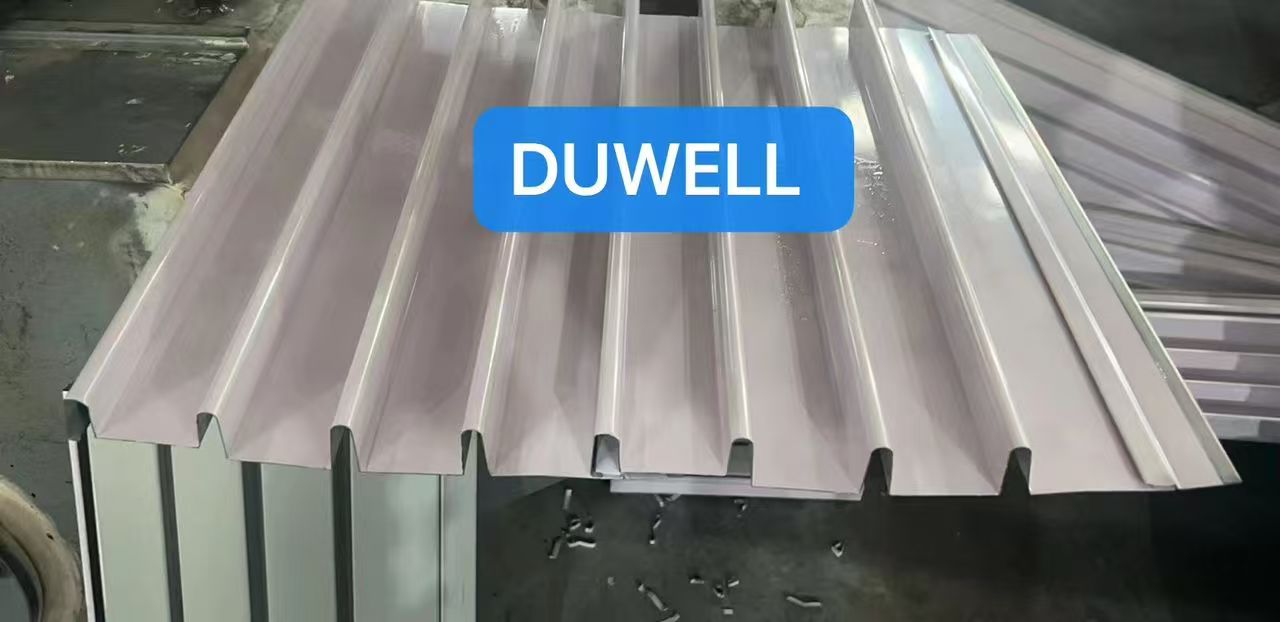

Common Panel Types Produced:

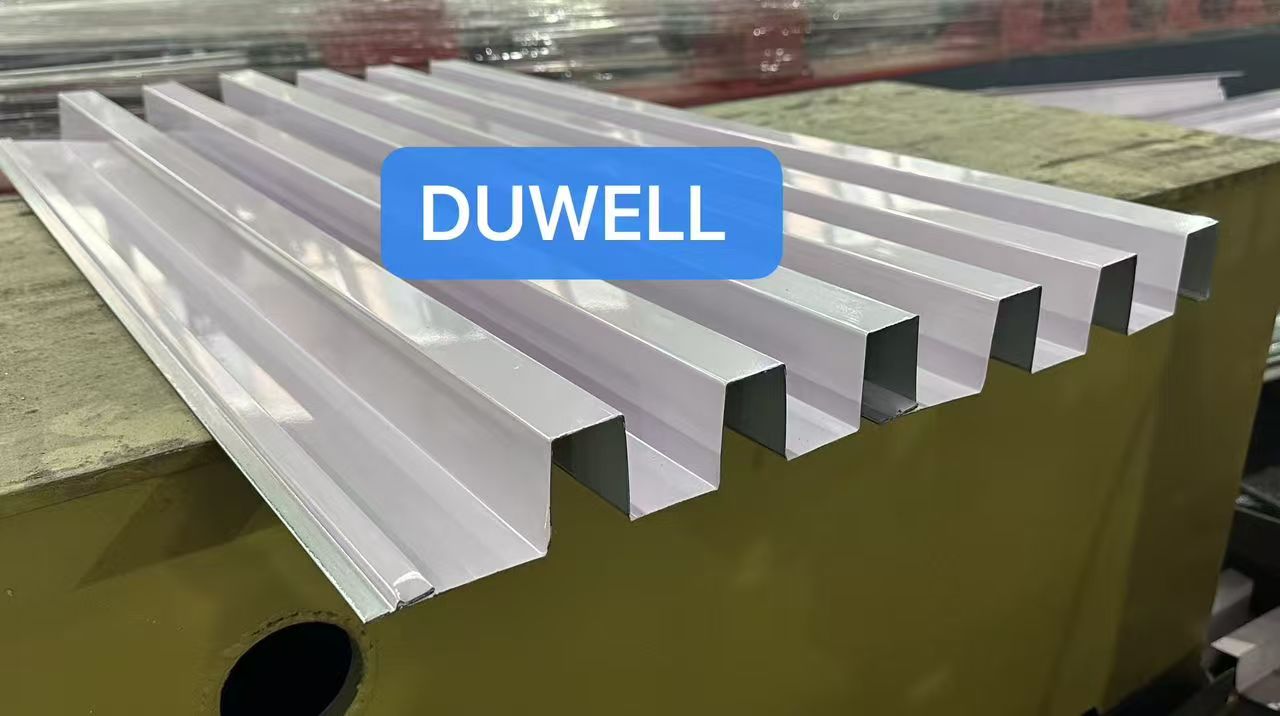

Ceiling Panels: Often have concealed or semi-concealed clip systems (e.g., Tegular, PBU, Hook-on, Lay-in). Profiles can be flat, linear, baffle, or perforated for acoustics.
Interior Wall/Partition Panels: Similar profiles to ceilings, sometimes heavier gauge. Often have interlocking edges.
Exterior Wall Cladding Panels: May include integrated insulation or rain screen functions, though simpler linear profiles are also common. Often have stronger locking systems.

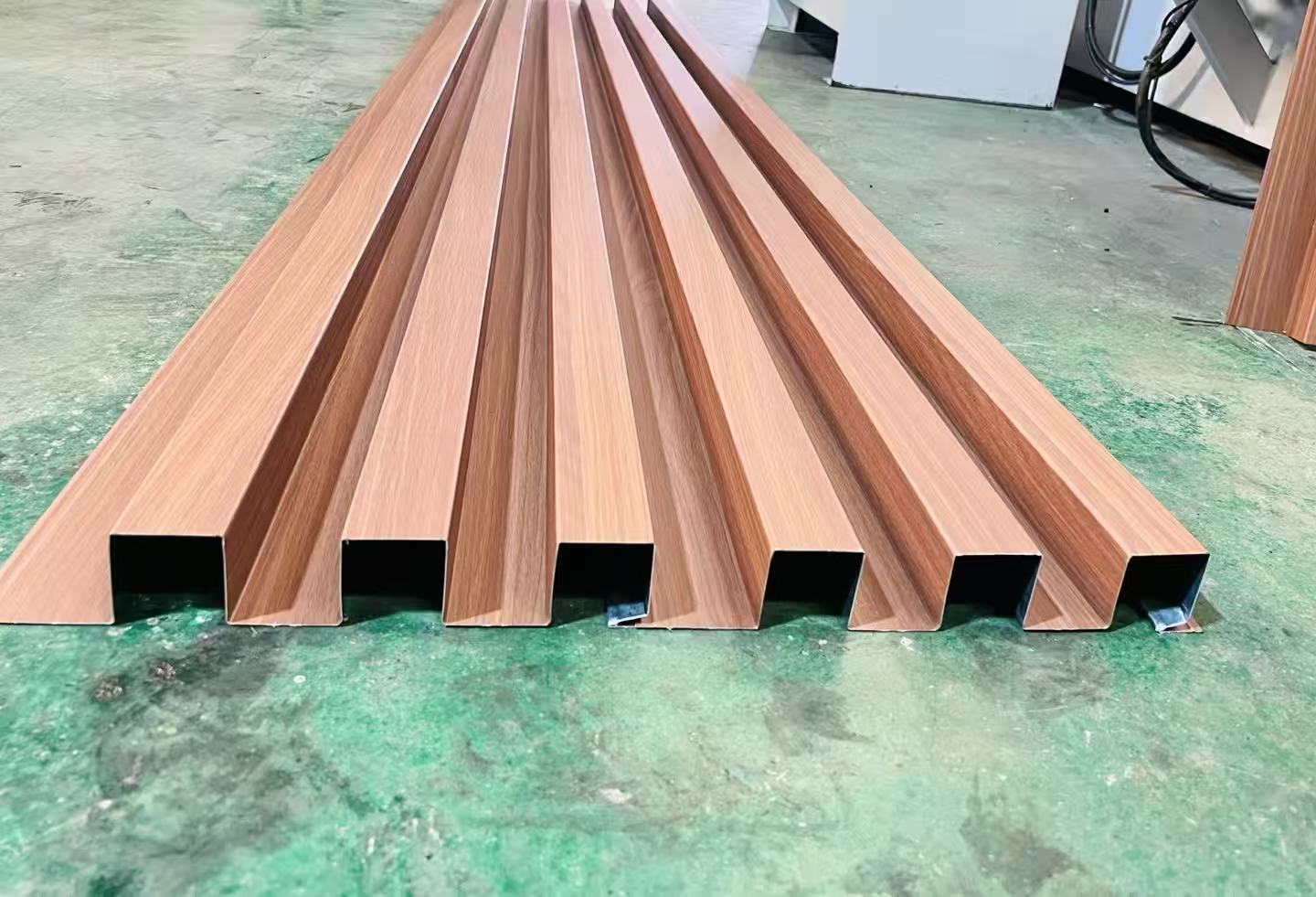

Linear Panels: Long, narrow panels used for both walls and ceilings, emphasizing clean sightlines.
Benefits of Using a Roll Forming Machine:
Cost-Effective: Low per-unit cost for high-volume production.
Efficiency: Continuous, high-speed operation.
Quality: Consistent, precise profiles.
Reduced Waste: Optimized material usage.
Versatility: Ability to produce various lengths and switch profiles (on convertible machines).
Scalability: Can be integrated into larger automated lines.
Working process

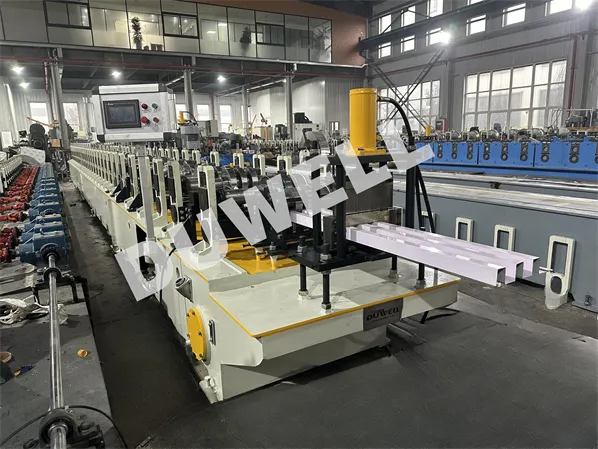

5 ton decoiler —→ Guiding—→Roll-forming Machine —→Adjusting —→ Hydraulic cutting—→ Run out table
Machine parameters
5 ton decoiler
Manual decoiler: hydraulic expanding.
Capacity: Max. 5 tons
Expanding range: ф480-520 mm ( can be made according to customer’s requirement)
Roll forming machine
Suitable plate of the rolling: Aluminum or steel , with thickness 0.3~1.2mm,
Working speed: 50~60 meters/min

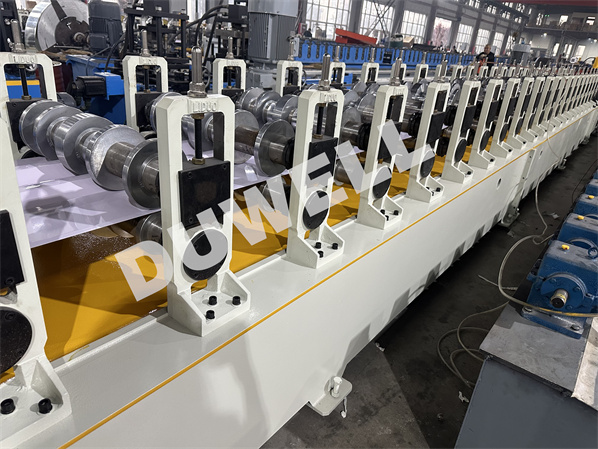

Forming stations: 18~30 stations according to different profiles

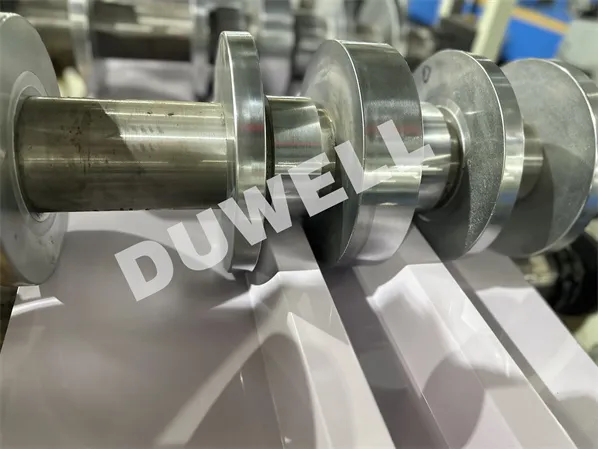

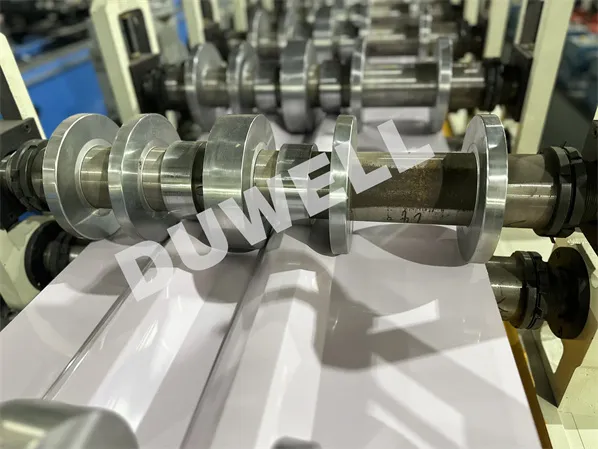

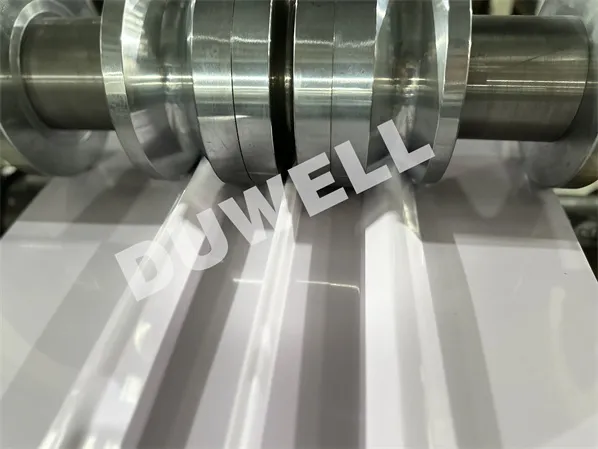

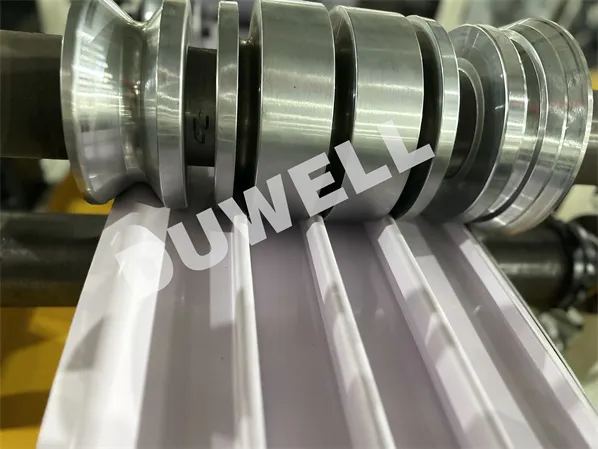

Roller material: GCr15 with quenching and chrome plating on surface, hardness: HRC58-62
Material of principal axis: #45 advanced steel
Main machine power: 7.5 KW
Control system: The whole machine is controlled by PLC system
Customized ceiling profile roll forming machines from DUWELL
The machine is designed to work with galvanized steel, aluminum, and pre-painted steel coils (typically 0.3mm–1.2mm thick).

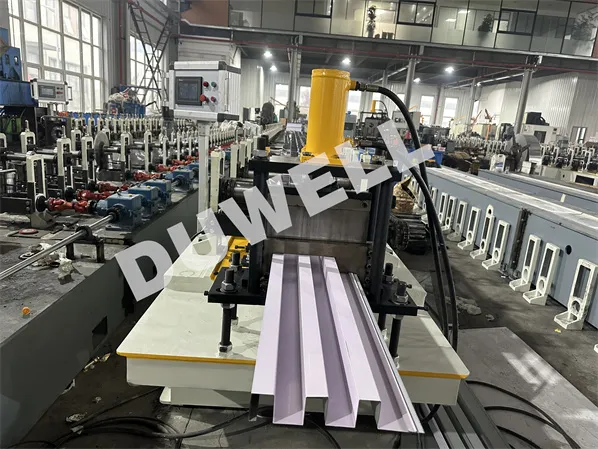

We offer hydraulic punch cutting or servo cutting for precise, smooth cuts without deformation.
Yes, it features a PLC control panel with a touchscreen for easy setup, length adjustment, and production monitoring.
It has two types of working speed to meet customer's different demand.
Normal speed with stop cutting: 12~15 meters/min, according to the cutting length.
High speed with following cutting: 40~50meters/min, according to the cutting length.
Absolutely! We can design and manufacture custom roll forming dies to produce unique ceiling profiles based on your specifications.
Yes, we offer installation guidance, operator training, and technical support to ensure smooth operation.
