DUWELL cable tray roll forming machine can make the C and U profile in one machine, with adjustable sizes 100~600mm width and 50~100mm height in one machine, with thickness range 0.8~1.5mm. And adjust the sizes automatically. The customer just need set the width and height size on the controller, the machine will change the sizes automatically. The line includes decoiler, leveler, servo feeder and pressing machine, hydraulic cutting device, roll forming, out table and controller.
A Cable Tray Roll Forming Machine is an advanced industrial machine designed to produce high-quality cable trays of various sizes and profiles. These machines use a continuous roll forming process to shape metal coils (typically steel, aluminum, or stainless steel) into precise cable tray sections, including ladder-type, perforated, and solid-bottom trays.
Uncoiler: Loading the steel coil
Leveling : Leveling the sheet flat before entering pressing machine

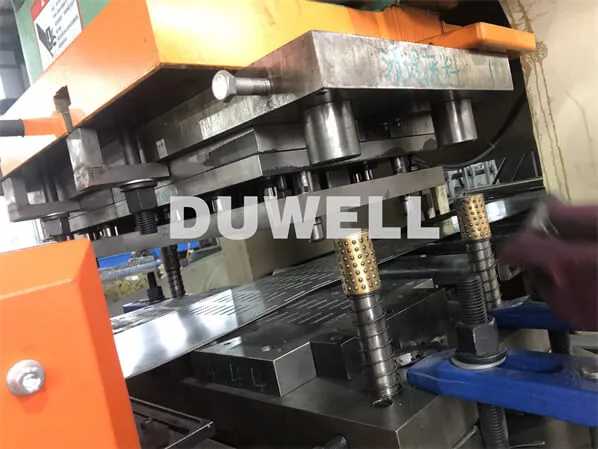

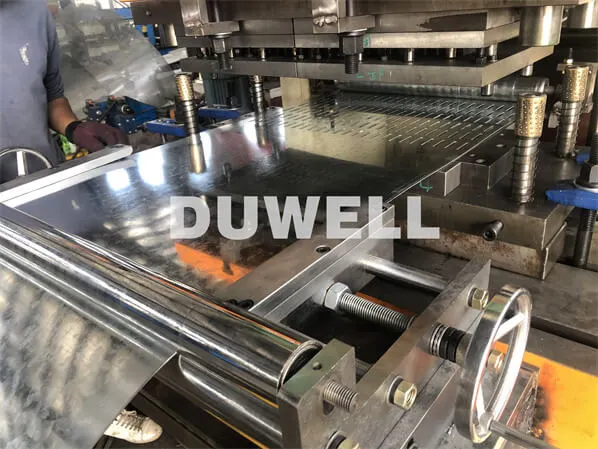

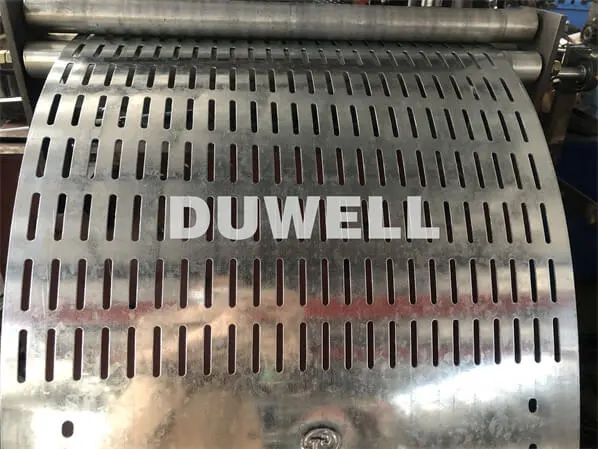

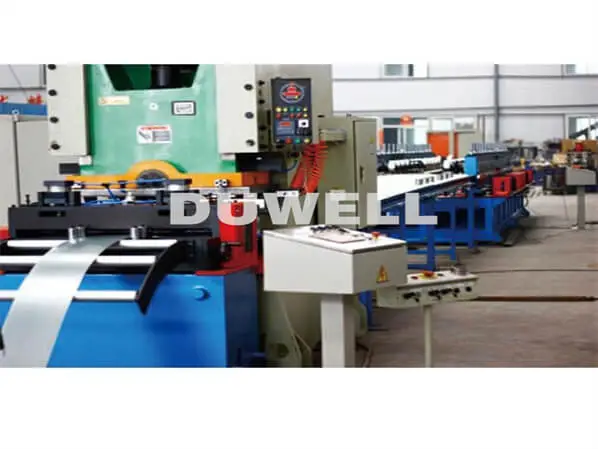

Servo feeder and pressing machine: Punch the holes on the sheet before forming.
Hydraulic cutting: Cut off the sheet before forming.

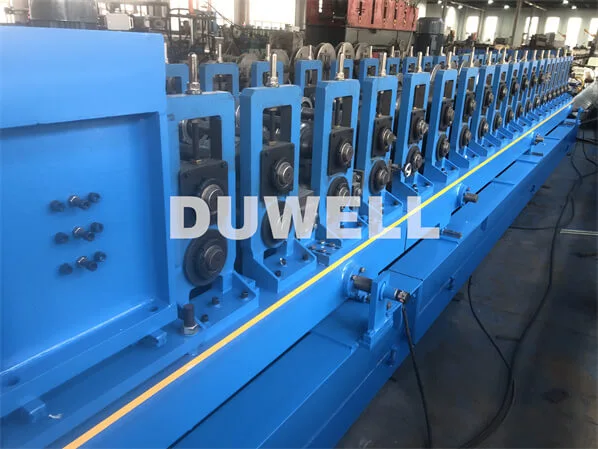

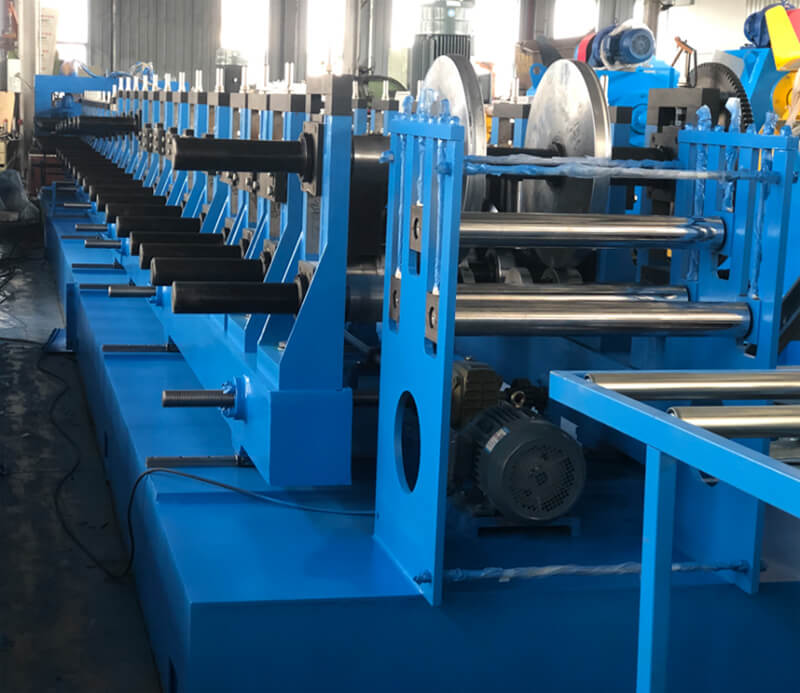

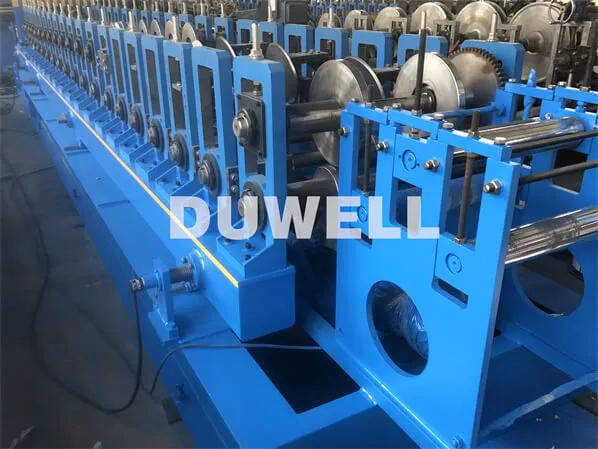

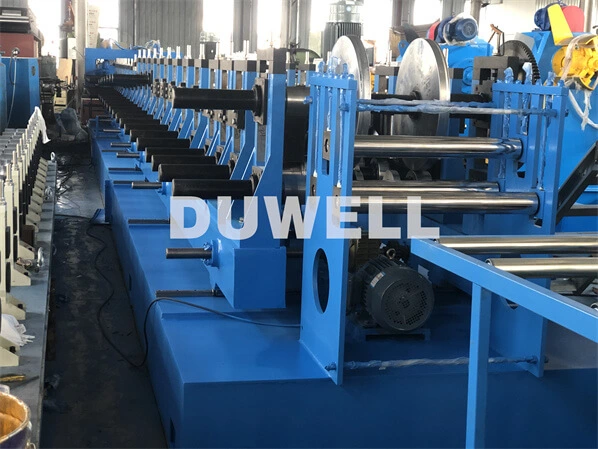

Profiling Roll Forming Machine: For precise profile forming.
Adjusting device: For final cable tray straight adjusting.
Stacking Table: Stacking the finished cable tray.
Working process
5 ton decoiler —→ leveler—→servo feeder—→Pressing machine—→Guiding and hydraulic cutting —→ Roll-forming Machine —→Adjusting —→Run out table
Machine parameters
Suitable plate of the rolling: Aluminum or steel , with thickness 0.8~1.5mm,
Working speed: 8~12 meters/min
Forming stations: 18 stations
Roller material: GCr15 with quenching and chrome plating on surface, hardness: HRC58-62
Material of principal axis: #45 advanced steel
Main machine power: 11 KW
Control system: The whole machine is controlled by PLC system
A cable tray roll forming machine is a production line that manufactures
ladder type, perforated, or solid-bottom cable trays from steel coils using
cold roll forming technology.
It forms, punches, and cuts steel strips continuously with high precision.

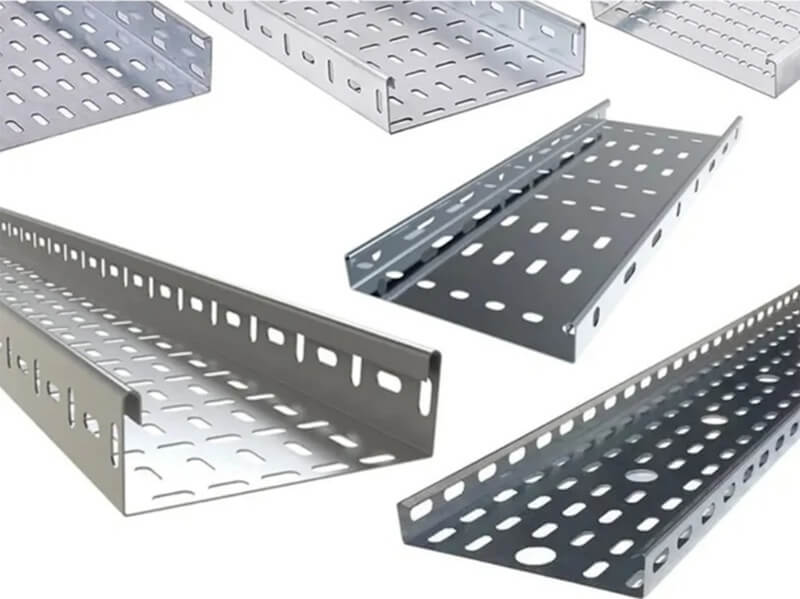

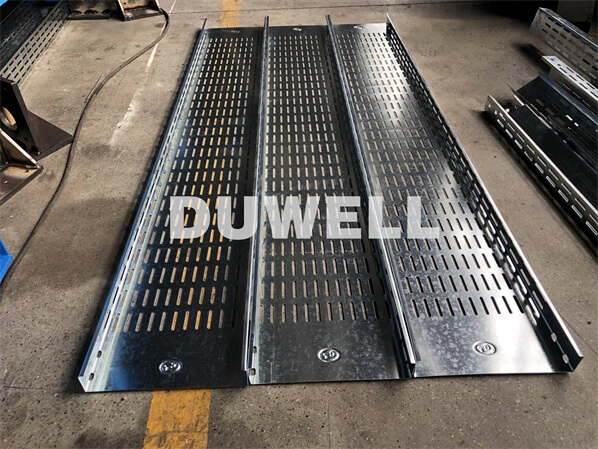

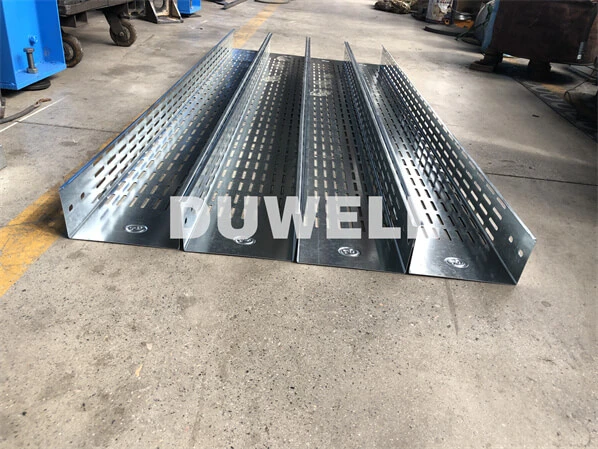

• Ladder type cable trays

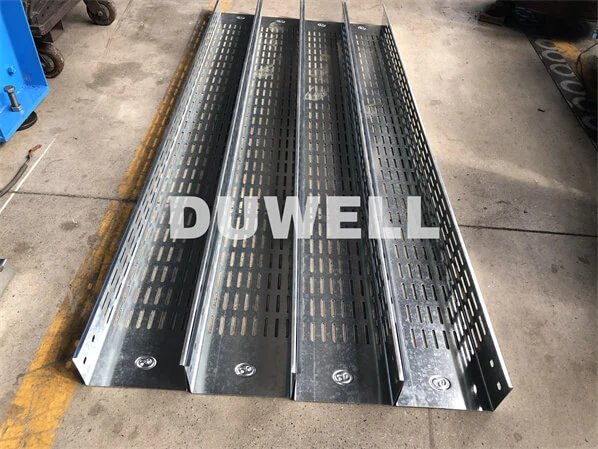

• Perforated cable trays

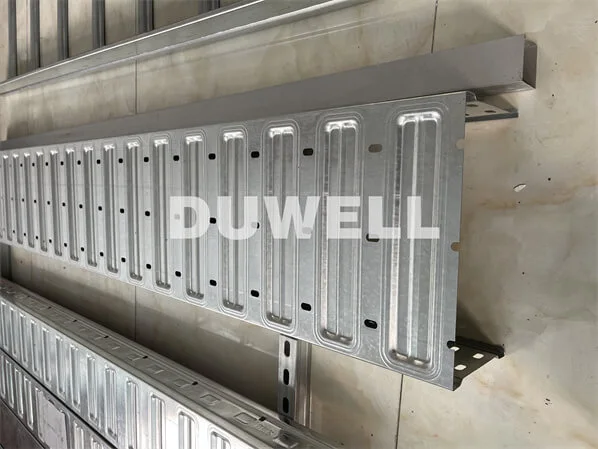

• Solid-bottom cable trays
• Custom-designed profiles according to drawings
Yes. Our cable tray roll forming machine is equipped with:
• Hydraulic punching system
• Servo feeding for precise hole spacing
• Ladder rung punching or perforation punching
• Hydraulic decoiler
• Leveling device
• Servo feeding system
• Hydraulic punching system/ high speed pressing machine
• Roll forming machine
• Automatic cutting device
• PLC control cabinet
• Output table or stacking system
Yes. Features include:
• PLC control with touch screen interface
• Automatic length cutting
• Automatic hole positioning
• Production data monitoring
The customer just need enter the web and flange sizes on the controller screen. The machine will move sizes automatically.
• Standard speed: 8–20 m/min (depending on punching pattern and material thickness)
• Higher speeds achievable with servo feeding and advanced punching systems
• Galvanized steel (GI)
• Stainless steel
• Aluminum
• Thickness: 1.0–3.0 mm (up to 4 mm for heavy-duty trays)

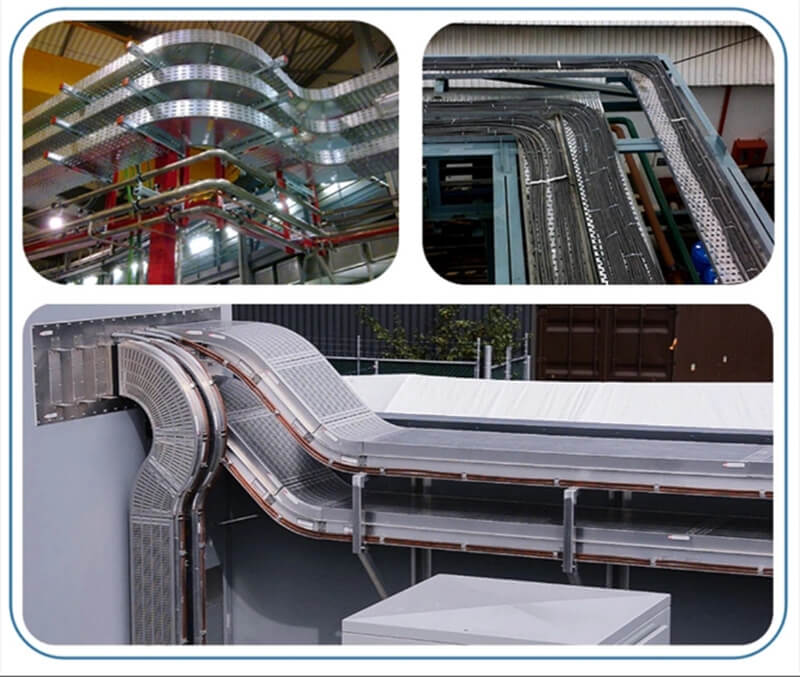

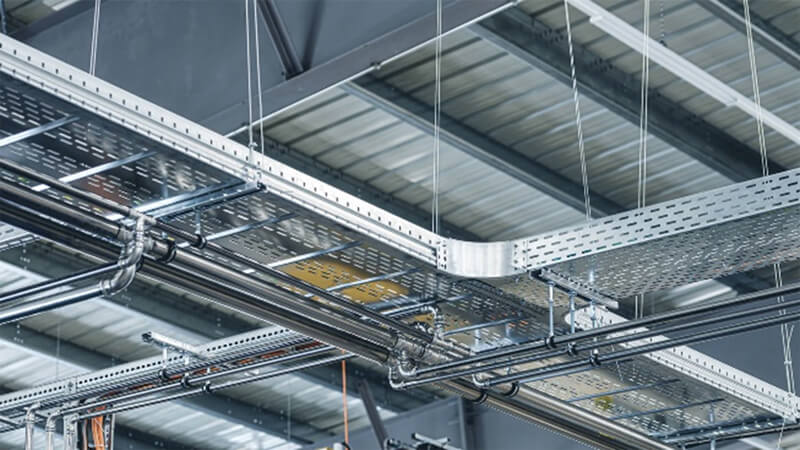

• Electrical wiring system manufacturers
• Data center infrastructure companies
• Industrial plants and factories
• Commercial building construction
• Supermarket and warehouse wiring solutions
Absolutely! The machine can be tailored to produce custom widths, depths, and lengths as per customer requirements.
We offer installation guidance, operator training, spare parts supply, and technical support to ensure smooth operation.
✔ Professional roll forming technology
✔ Custom profile design
✔ Competitive factory price
✔ Experienced engineering team
✔ Strong after-sales support
✔ Global export experience
