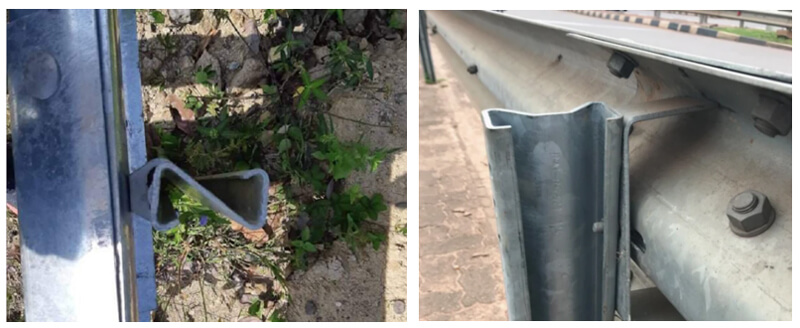

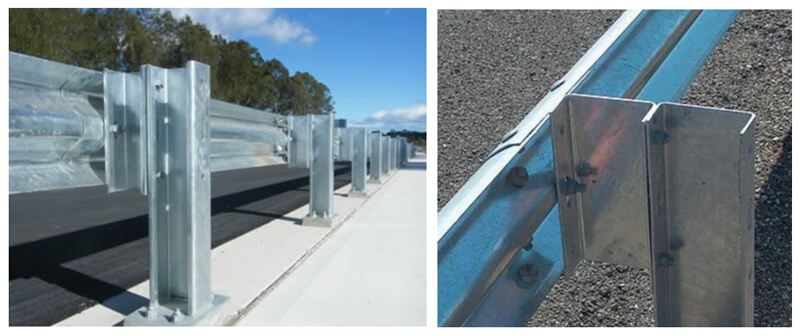

DUWELL can make the guardrail post machine, including C profile post, U profile post or Sigma profile post. The machine is suitable for high strength steel, with a minimum yield strength 345Mpa and material thickness 4.0~6.0mm. Various countries use different sections of different shapes for columns. We can make the roll forming machine according to customer’s required post shape or samples.
Uncoiler: Loading the steel coil
Leveling : Leveling the sheet flat before entering pressing machine

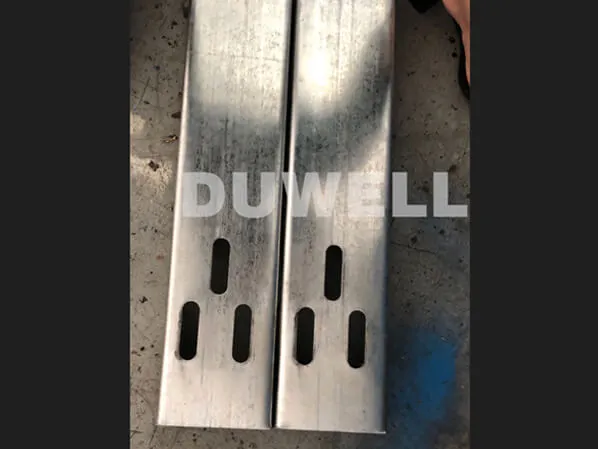

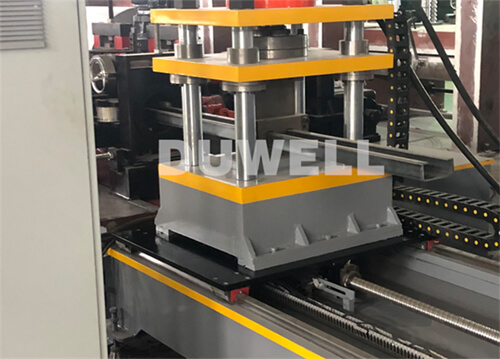

Servo feeder and hydraulic punching device: Punch the holes on the sheet before forming.
Profiling Roll Forming Machine: For precise profile forming.

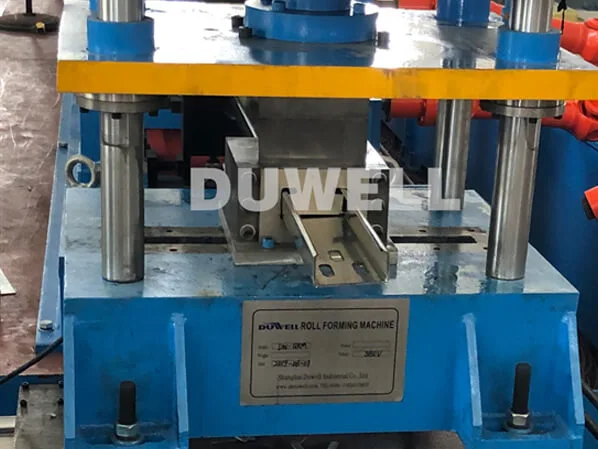

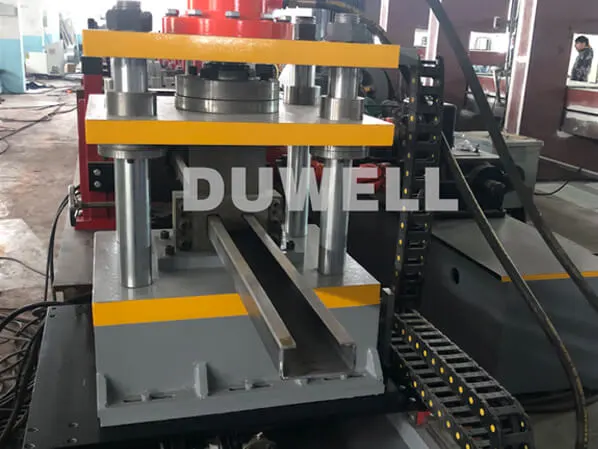

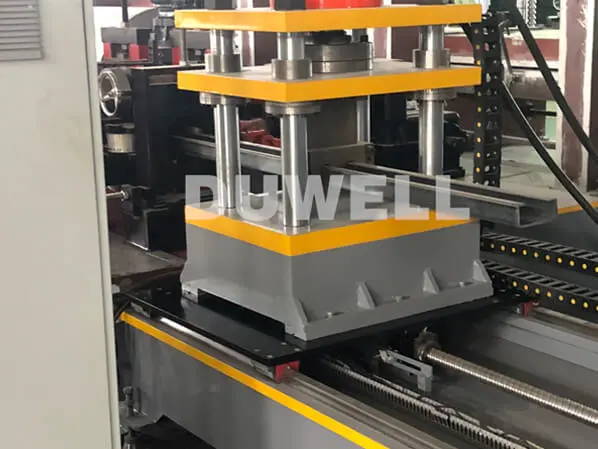

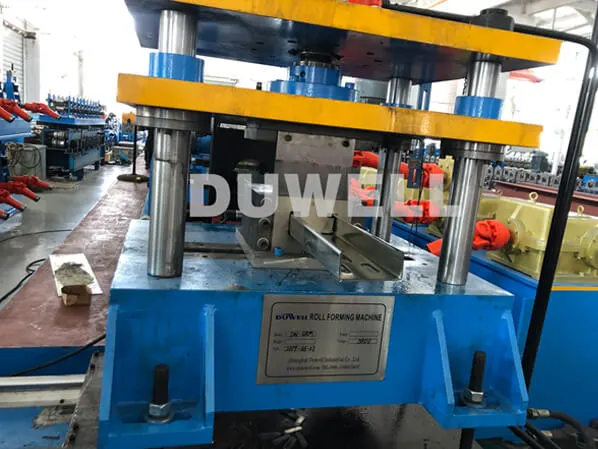

Hydraulic cutting device: Cut off the rails according to setting length.
Adjusting device: For final straight adjusting.
Stacking Table: Stacking the finished rails.
Working process
5 ton decoiler —→ leveler—→servo feeder—→punching machine—→Guiding and hydraulic cutting —→ Roll-forming Machine —→Adjusting —→Run out table
Machine parameters
Suitable plate of the rolling: Steel, with thickness 4.0~6.0
Working speed: 8~12 meters/min
Forming stations: 18 stations
Roller material: Cr12Mov with quenching, hardness: HRC58-62
Material of principal axis: #45 advanced steel
Control system: The whole machine is controlled by PLC system
The machine can process metal coils with a thickness range of 1.5mm to 4mm, suitable for most guardrail post standards.
Depending on the post design and material, the machine can produce 5–15 meters per minute.

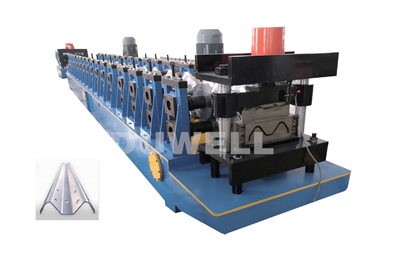

Yes, the machine can be adjusted to produce W-beam, Thrie-beam, U-channel, and other profiles with minor tooling changes.
Yes, the machine features hydraulic punching for bolt holes and precision cutting to ensure consistent post lengths.
It uses a PLC control system with a touchscreen interface, allowing easy adjustments and monitoring.
Regular lubrication of rollers, inspection of hydraulic systems, and occasional replacement of wear parts (such as cutting blades) are recommended.
Yes, we can design and manufacture custom roll forming machines based on specific guardrail post requirements.
