A warehouse beam roll forming machine is an automatic cold roll forming production
line designed to manufacture pallet rack beams, box beams, and step beams used in
designed to manufacture pallet rack beams, box beams, and step beams used in
warehouse racking systems.
This machine forms steel coils into high-strength horizontal load-bearing beams
that connect to rack uprights in industrial storage systems.

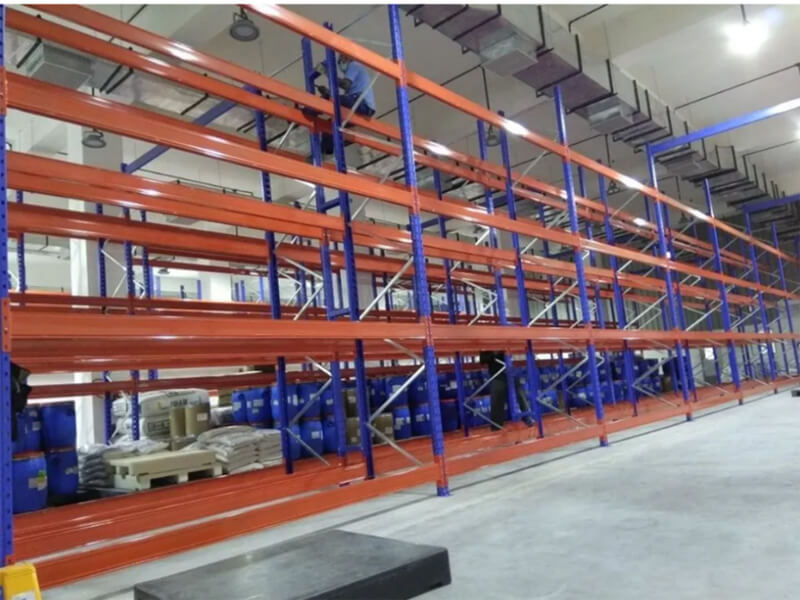

Warehouse beams are essential structural components in storage racking systems, shelving, and mezzanine floors. They provide support for heavy loads while optimizing storage space. Below are the most common types of warehouse beams used in industrial and commercial storage:

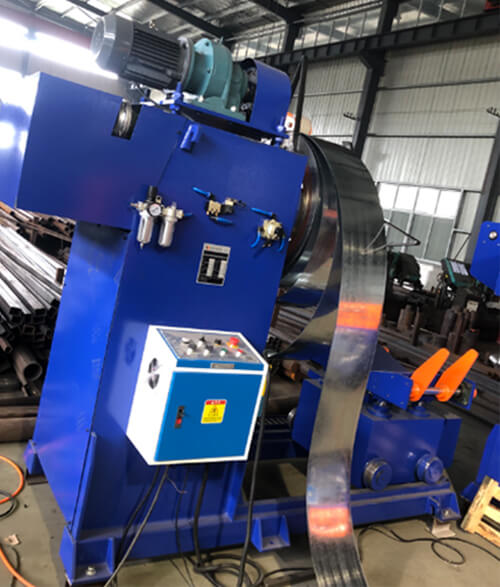

Uncoiler: Loading the steel coil
Leveler: leveling the sheet
Servo feeder: feed the sheet into pressing machine
Pressing machine: Press the holes on the upright before forming.

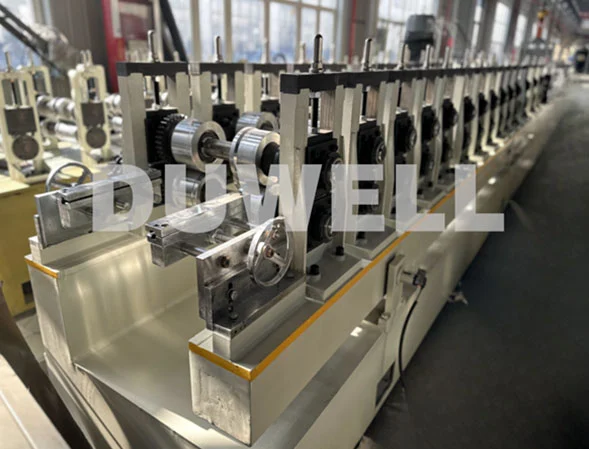

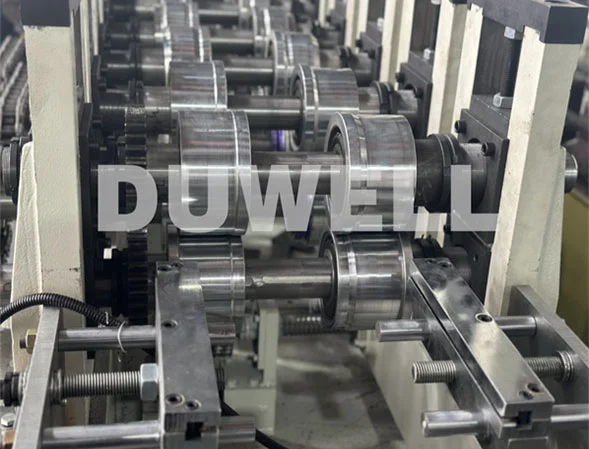

Profiling Roll Forming Machine: For precise profile forming.
Adjusting device: For final slats straight adjusting.
Servo following hydraulic cutting device: For precise cuts.

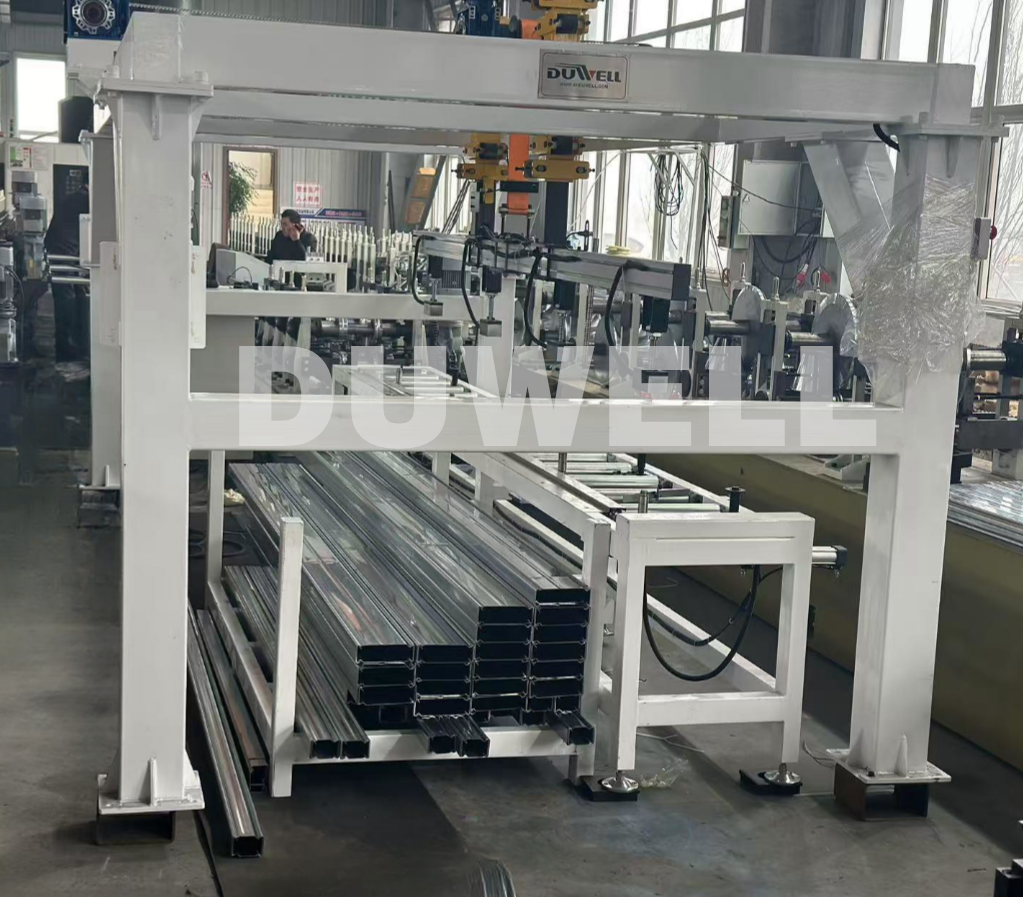

Stacking Table: Stacking the finished upright.

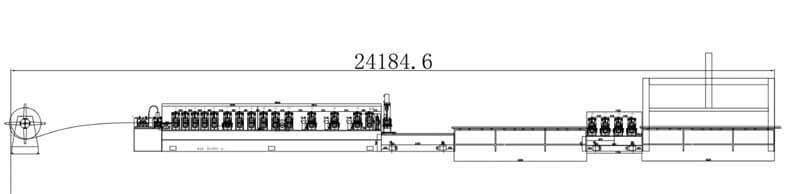

Working process
5 ton decoiler —→ leveling device—→ Feeding device (servo motor) —→Pressing machine—→Roll-forming Machine —→ Hydraulic cutting—→ Run out table
Machine parameters
5 ton decoiler
Manual decoiler: hydraulic expanding.
Capacity: Max. 5 tons
Expanding range: ф480-520 mm ( can be made according to customer’s requirement)
Roll forming machine
Suitable plate of the rolling: galvanized steel or cold/hot roll steel, with thickness 1.0~1.5mm,
Working speed: Approx. 6~8meter/min
Forming stations: 16 stations
Roller material: Cr12Mov (Cr12) with quenching and chrome plating on surface, hardness: HRC58-62
Material of principal axis: #45 advanced steel, (Dia: 65mm)
Main machine power: 11 KW
Driven: gear box transmission
Cut-off system: Hydraulic cutting, power:7.5KW, with three cutting knives.

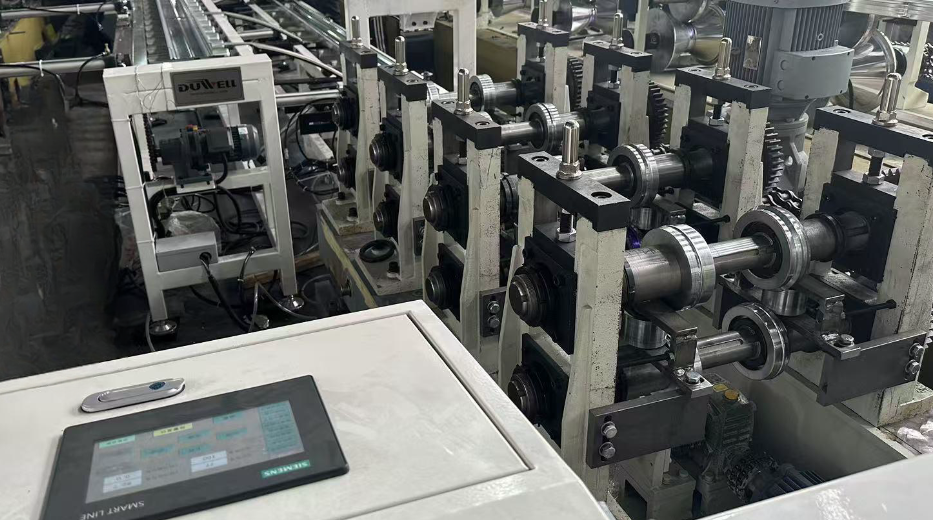

Control system: The whole machine is controlled by PLC system

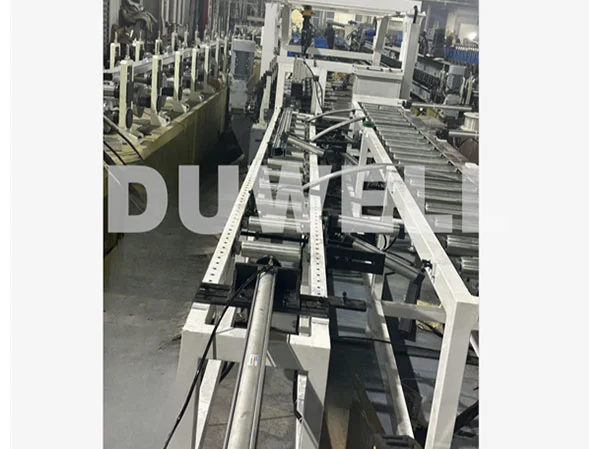

Overturning and cover system
Closing system
Stacking system
Our heavy-duty beam roll forming machine processes:
• Cold rolled steel
• Galvanized steel (GI)
• High-strength structural steel
Thickness range:
1.5mm – 3.0mm (customizable up to 4.0mm for heavy duty industrial racks)

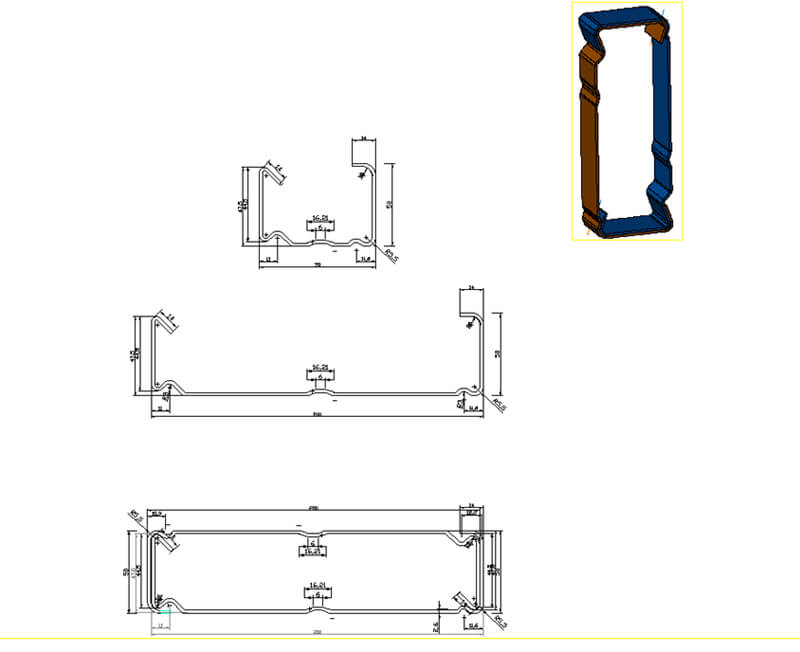

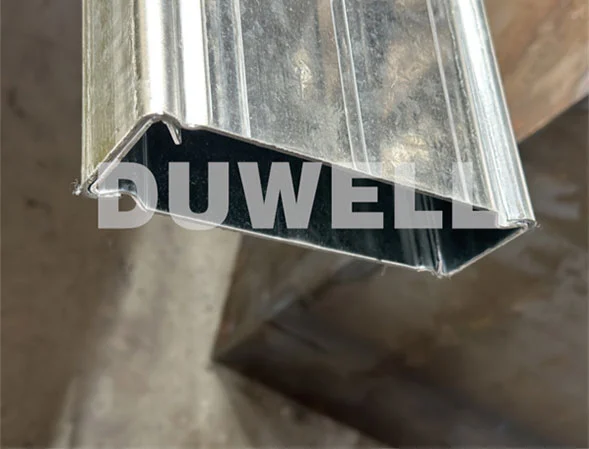

Our pallet rack beam roll forming machine can produce:

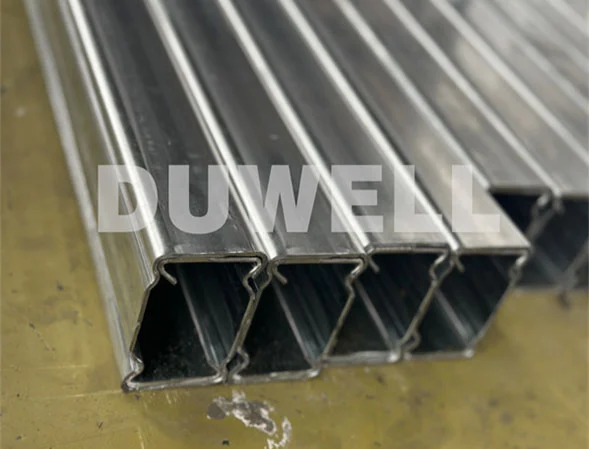

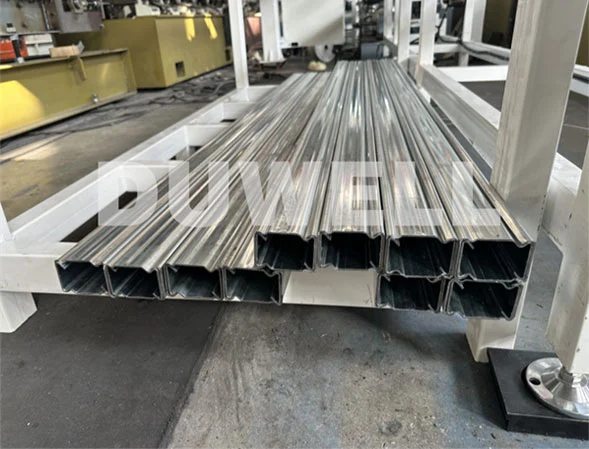

• Box beams
• Step beams
• Z beams
• C beams
• Heavy duty rack beams
• Customized warehouse storage beams
Beam sizes and thickness can be customized according to customer drawings and
load capacity requirements.
Standard production speed:
• 10–20 meters per minute
• High-speed option available with servo feeding system
The actual speed depends on beam profile complexity and punching requirements.
es. Our racking beam roll forming machine includes:
• Servo feeding system
• Hydraulic punching unit
• Precision punching molds
• Adjustable hole spacing
Punching can include:
• Connector holes
• Locking slots
• Safety pin holes
• End plate fixing holes
High punching accuracy ensures easy installation and structural safety.
Yes. Our automatic beam roll forming machine features:
• PLC automatic control system
• Touch screen interface
• Automatic length setting
• Automatic cutting
• Parameter memory for different beam sizes
One operator can control the entire beam production line.
Yes, we offer custom roll forming dies and tooling to match unique beam profiles, hole patterns, and dimensions as per customer specifications.
The machine is equipped with emergency stop buttons, safety guards, overload protection, and fault detection systems to ensure safe operation.
Yes, we offer on-site installation, operator training, and 24/7 technical support to ensure smooth operation and troubleshooting assistance.
As a professional roll forming machine manufacturer, we provide:
• Heavy-duty welded frame
• High precision rollers (Cr12MoV / GCr15 material)
• Stable forming performance
• Long service life
• Low maintenance cost
• CE certification available
• Global export experience
Our machines are built for continuous industrial warehouse beam production.
✔ Professional roll forming technology
✔ Custom beam profile design
✔ Competitive factory price
✔ Experienced engineering team
✔ Reliable after-sales service
✔ Exported to global markets
We help warehouse racking manufacturers build efficient, automated, and profitable beam production lines.
