DUWELL company is specially in PU foam roller shutter forming machines. DUWELL can make the machine according to customer’s required shutter profiles or samples. 77mm, 95mm and 100mm shutters are mostly used for garage doors. It can use both aluminum and steel material.
DUWELL is professional in whole range of rolling shutter door machine, such as octagon pipe roll forming machine, guiding rail roll forming machine, shutter box roll forming machine etc.
For customers concerned about equipment investment, DUWELL also provides guidance related to production cost and shutter profile machine price, helping buyers choose the most suitable solution for their shutter door business.
Uncoiler: Loading the steel or aluminum coil
Profiling Roll Forming Machine: For precise profile forming.
Foam Injection Machine: For foam injection of the shutter profiles.
Adjusting device: For final slats straight adjusting.
Servo Flying Shear: For precise cuts.
Stacking Table: Stacking the finished slats.
DUWELL is a leading PU foamed roller shutter machine manufacturer in China,
specializing in high-precision and energy-efficient production lines for insulated shutter slats.
Our PU roller shutter roll forming machines combine advanced technology, automatic foaming,
and precise roll forming to create durable, noise-reducing, and heat-insulated shutter doors.

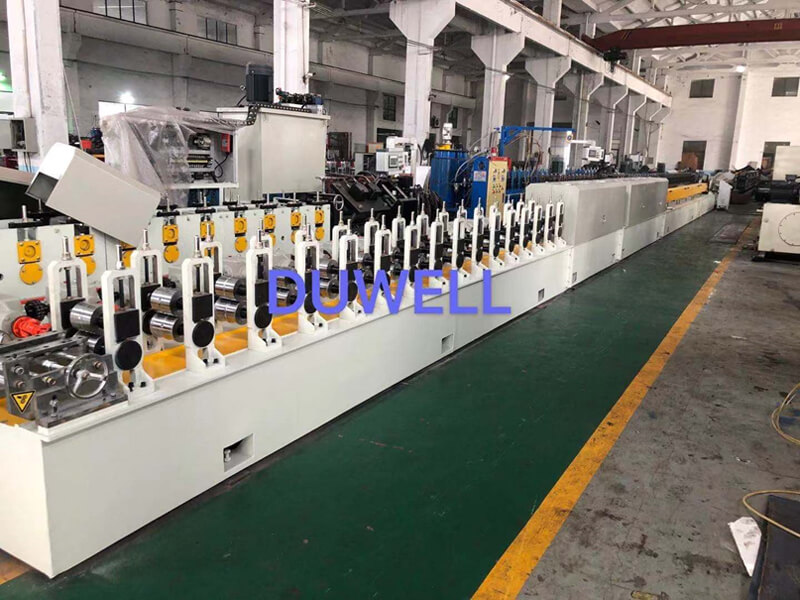

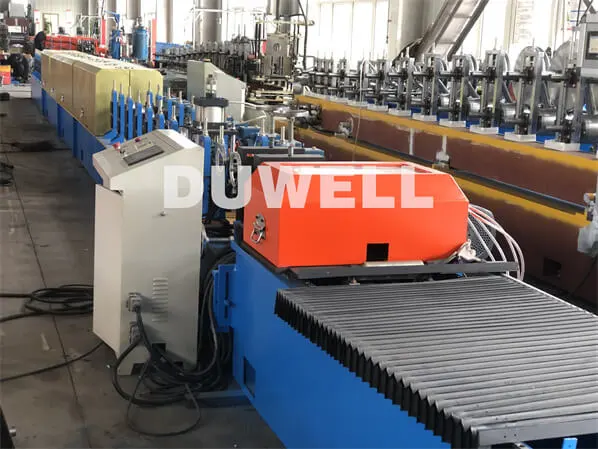

The PU foamed roller shutter forming line integrates decoiling, roll forming, PU foaming, shaping,
and cutting into one continuous process. It can produce aluminum or steel shutter slats filled with

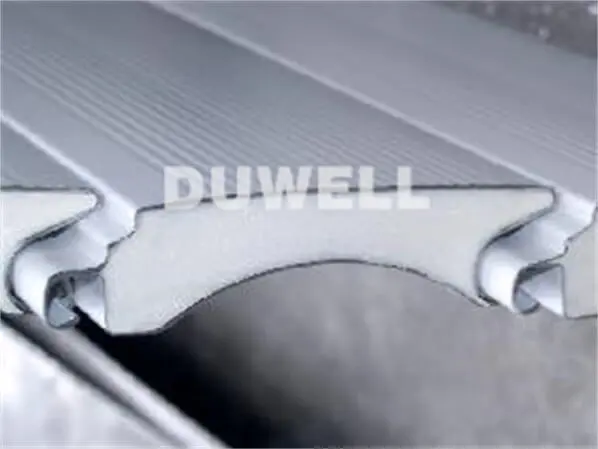

high-density polyurethane foam, ensuring strong adhesion, smooth surface, and long-lasting insulation performance.
We offer customized roller shutter door forming machines based on your profile drawing or sample. Every part of the
production line is built with heavy-duty materials and reliable electrical components to guarantee stable performance
and easy operation.

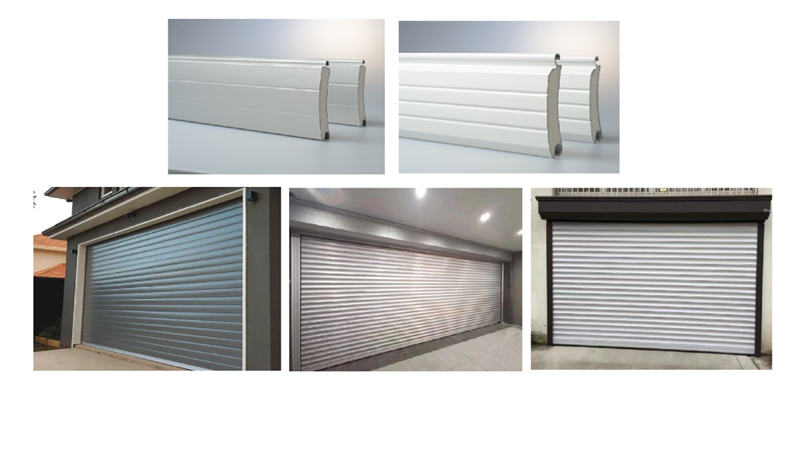

Our machines are widely used for roller shutter doors, garage doors, and shop fronts,
providing both security and energy savings. With years of manufacturing experience,
ROLL FORMING LINE FOR ROLLING SHUTTER WITH POLYURETHANE FOAM (we will make the machine according to customer's sample or requested drawings)

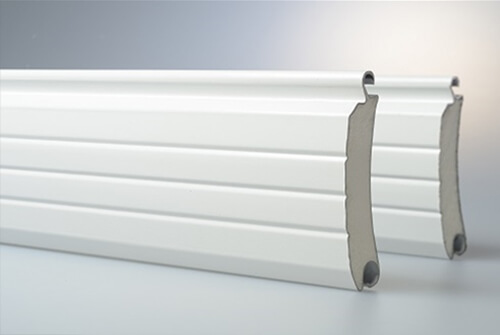

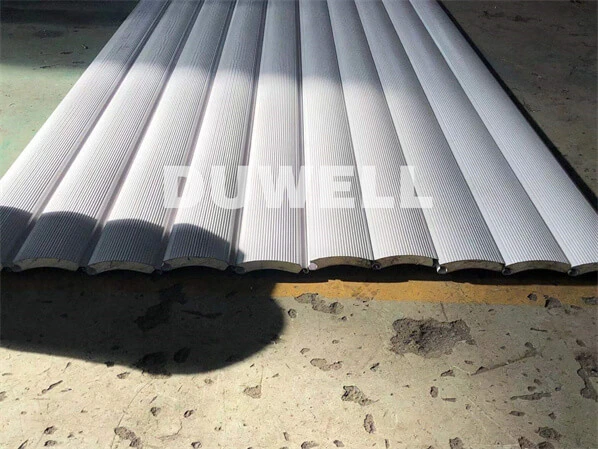

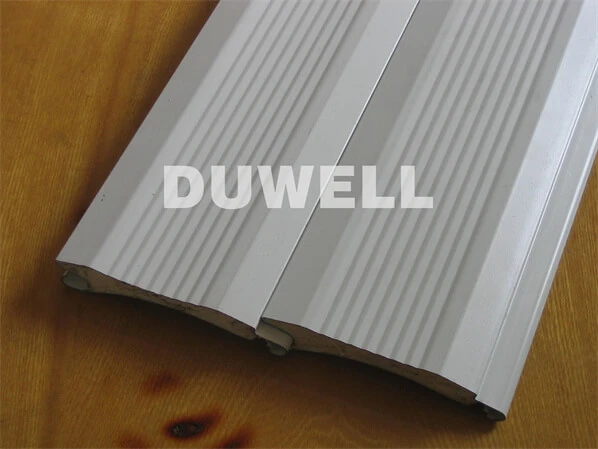

77mm shutter

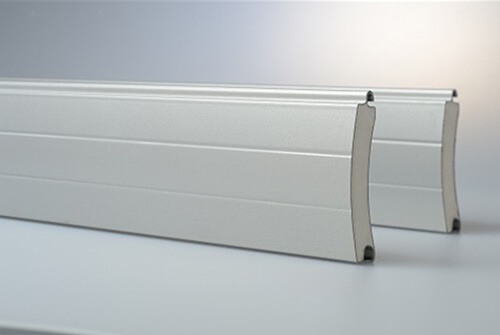

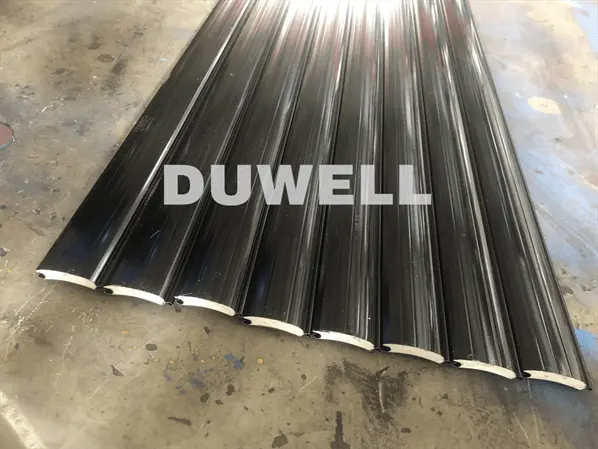

95mm shutter
Description of the machine:

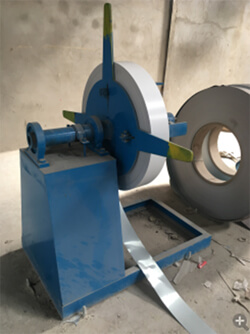

1-DE-COILER
Shaft width: 300mm
Manual shaft opening: 470~530mm
Weight capacity: 3ton

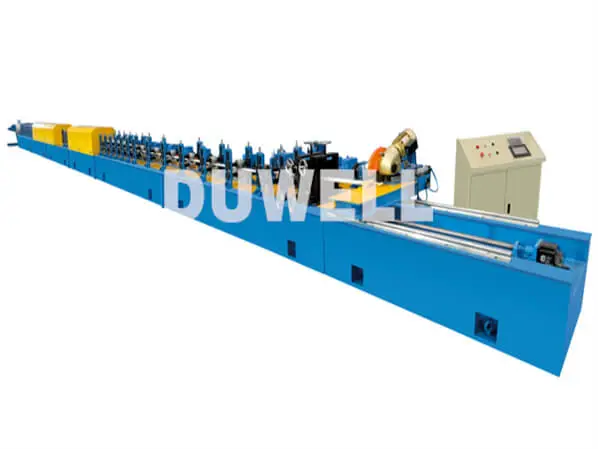

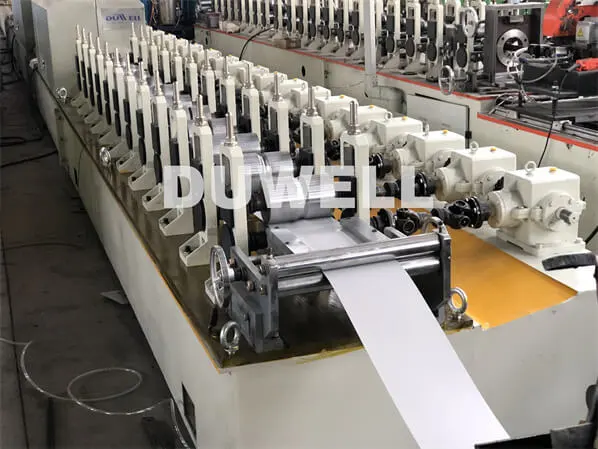

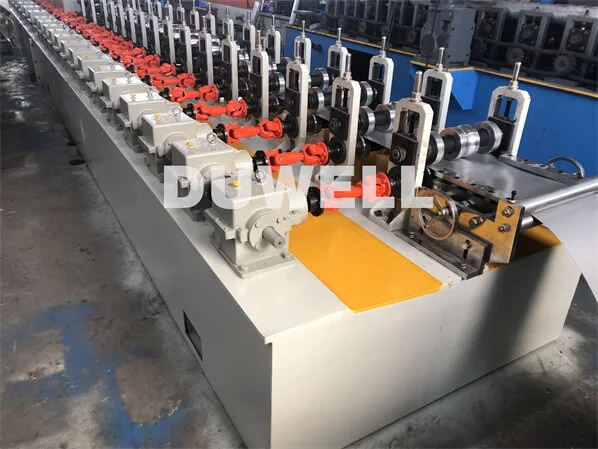

2-ROLL FORMING MACHINE
Roller material: GCr15 advanced steel, precision-machined, high frequency quenching HRC58-62
Shaft Diameter: 65mm
Forming stations: 38 stations
Driven: gear box transmission
Cutting: Pneumatic following cutting, with servo motor

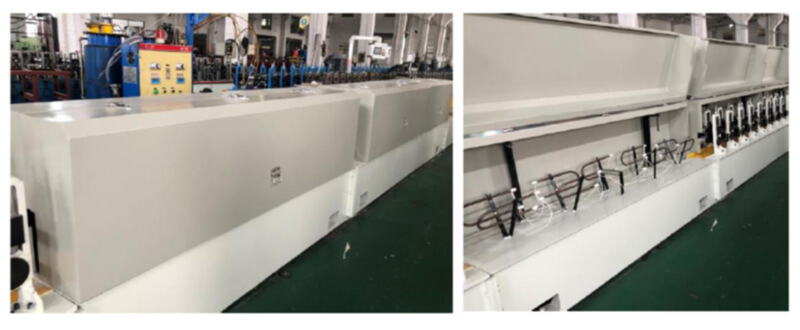

3-HEATEN BOX

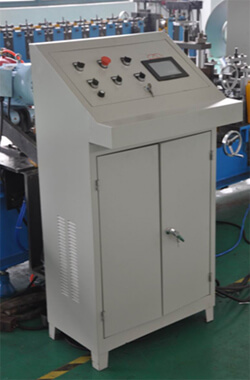

4- PLC CONTROL BOX
5-FOAM INJECTION MACHINE
Motor power: 7KW
Injection type: Air blow or Mixing
Mixing quantity: 8g/second
Washing: automatic washing
Tank volume: 50kg/tank (two tanks: one for Poly, One for ISO)
Size : 1100x1100x2000mm
Working process
Put the steel coil on the un-coiler—→Guiding—→Warm box(heaten the material)—→ Roll-forming Machine—→Injection machine —→ roll forming machine—→Warm box(help expanding) —→Adjusting device ----Flying saw cutting------- Run out table
DUWELL company is the first factory to produce this high speed roller shutter, we have experience in roller shutter machines more than 20 years. We learned and imitated the machines of our Senior role models Italian DALLAN company, and developed China's first high speed rolling door equipment.
Yes, our machines are versatile and can be configured to produce both 77mm and 95mm profiles. With quick tooling changes, you can switch between profiles efficiently.
Please contact DUWELL to ask for the detailed information.
Our machines are equipped with advanced PU foam injection systems that ensure precise and consistent foam filling. The foam is injected into the profiles during the roll forming process, creating a seamless and uniform core.
Absolutely! We offer fully customizable solutions, including:
Custom profile designs
Adjustable foam density
Integration with additional features like punching, cutting, or automation systems.
120 days including production and final testing working.
We have two types of machine, high speed line and normal speed line: high speed line the speed is 25~30 meters/minute. Normal speed line speed is 10~12 meters/minute.
Our machines are designed to work with a variety of materials, including:
Galvanized steel/Aluminum/Stainless steel/Pre-painted or coated steel
The choice of material depends on the specific requirements of your roller shutter doors, such as durability, weather resistance, and aesthetics.
For 77mm and 95mm roller shutters, it mostly uses steel and aluminum with thickness 0.3~0.6mm.
The PU foam core significantly improves the energy efficiency of the shutters by reducing heat transfer. This helps in maintaining indoor temperatures, lowering heating and cooling costs, and meeting energy efficiency standards.
